Connecting mounting parts alternator poly v belt — Mk3 Golf Engine (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Alternator versions

Generation: Mk3 1993 - 1996 (MEX) Group: Engine Rebuild step 1 Parts: 23 Primary OEM: N 101 208 03, N 014 712 3, 028 145 291 B

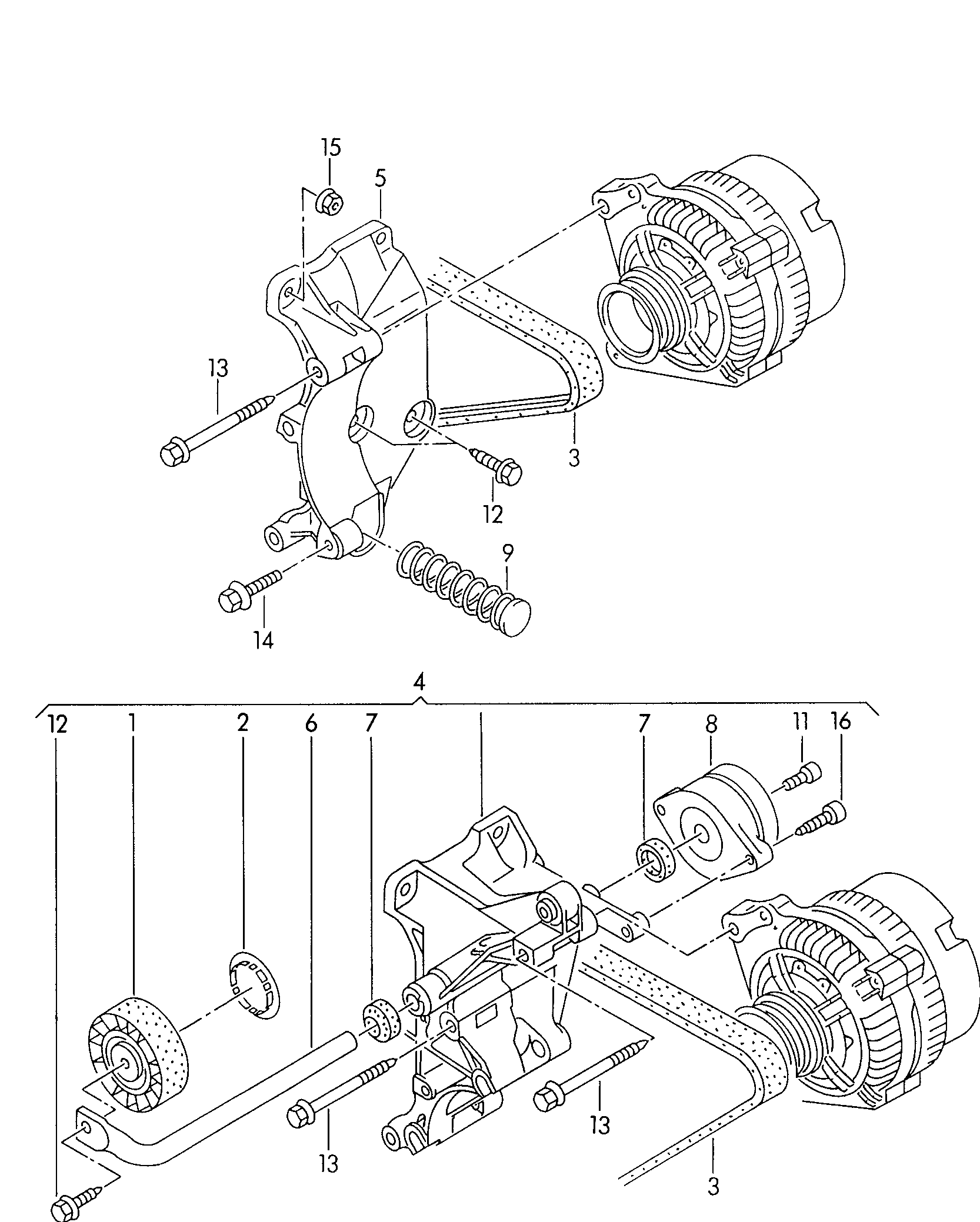

Connecting mounting parts alternator poly v belt for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 903040 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 22 OEM part numbers across 23 catalogued positions including N 101 208 03, N 014 712 3 and 028 145 291 B. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 22 OEM part numbers across 23 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	connecting and mounting partsfor alternator Poly-V-belt 1.9 ltr. 4-cylinder Diesel eng.+AAZ 1.9 ltr.	—
(14)	Hex collared bolt for alternator: M 8 X 857-10 M 8 X 857-10	N 101 208 03
(16)	Socket head bolt withhexagon socket head only for: M 8 X 18028 903 315 D M 8 X 18028 903 315 D	N 014 712 3
(2)	Protective capto use for: 028 145 278 E 028 145 278 E	028 145 291 B
(2)	Protective cap for freewheelpoly-V-belt pulley	037 145 291
(3)	Poly-V-belt 21,36 X 923 MM 21,36 X 923 MM	028 903 137 AM
(3)	Poly-V-belt for alternator: 21,36 X 1045 MM 120 A 21,36 X 1045 MM 120 A	028 903 137 BB
(3)	Poly-V-belt 21,18 X 1145 MM 21,18 X 1145 MM	028 260 849 L
(4)	bracket for alternator 120 A 120 A	028 903 139 T
(6)	Clamping lever F 1 H-R-008 221>>*	028 903 308 G
(8)	tensioner also use: >>1 H-R-008220028 903 308 GN 014 712 3 >>1 H-R-008220028 903 308 GN 014 712 3	028 903 315 R
1	idler pulleywith threaded bush 78 MMM 8 78 MMM 8	028 145 278 E
11	Socket head bolt withhexagon socket head M 6 X 16 M 6 X 16	N 014 740 4
12	Hex collared bolt M 8 X 20 M 8 X 20	N 019 533 10
12	Hex collared bolt M 8 X 20 M 8 X 20	N 019 533 4
13	Hex collared bolt M 8 X 85 M 8 X 85	N 101 208 03
14	hexagon head bolt (combi) for alternator: M 8 X 391-6 M 8 X 391-6	N 905 649 01
16	Socket head bolt withhexagon socket head only for: M 8 X 35028 903 139 A M 8 X 35028 903 139 A	N 102 408 01
2	Protective cap	028 145 291 A
5	bracket for alternator	028 903 143 AD
6	Clamping lever F >> 1 H-R-008 220*	028 903 308 C
7	dust cap	028 903 310
9	Tensioning spring	028 903 329

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1993 - 1996
Generation region: MEX
Generation code: 128
Factory group: 01 Engine
Factory subgroup: 903040
