Fuel filter — Mk3 Golf Engine (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Fuel filter

Generation: Mk3 1993 - 1996 (MEX) Group: Engine Rebuild step 1 Parts: 15 Primary OEM: 357 127 419, 1H0 127 401 E, 1H0 127 401

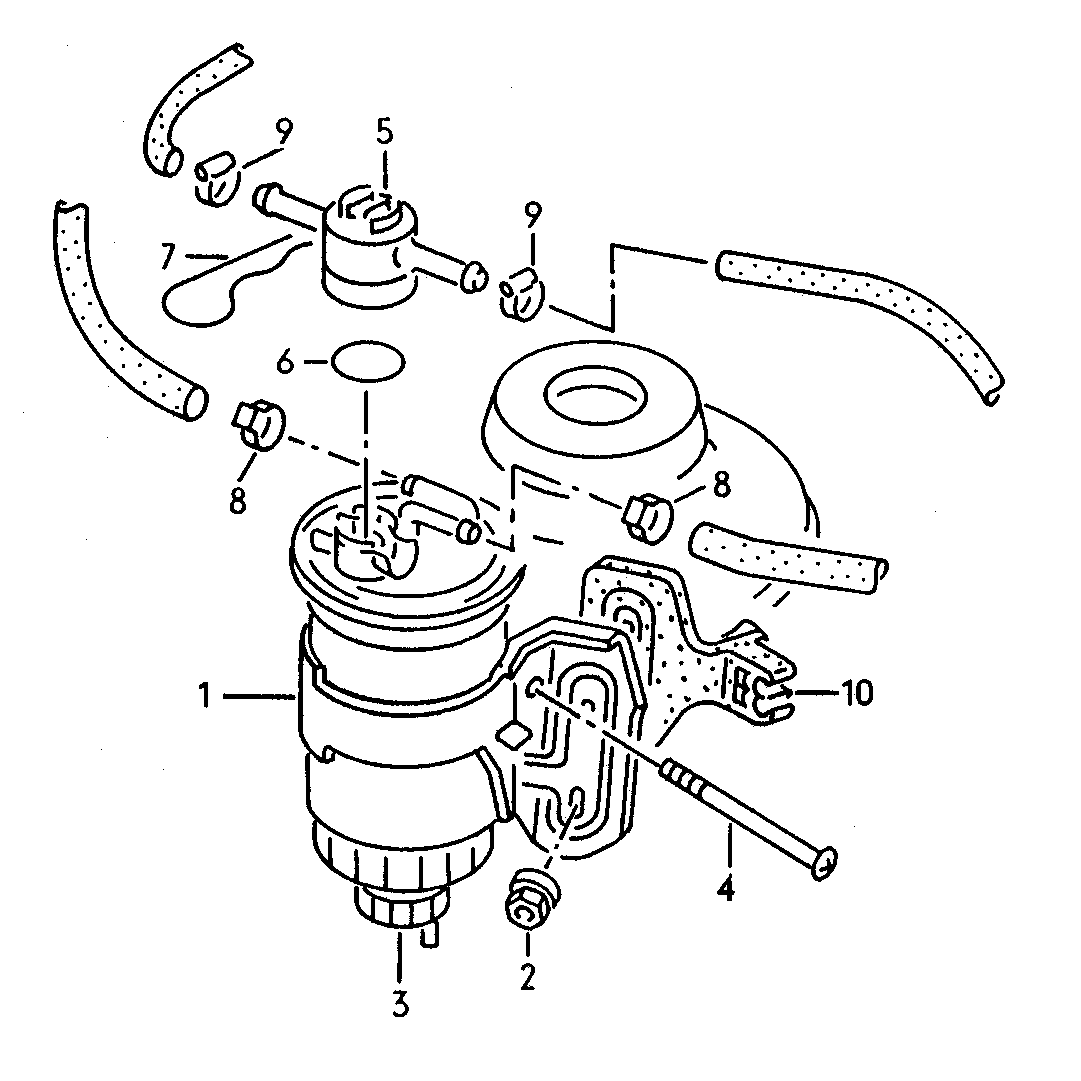

Fuel filter for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 127030 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 14 OEM part numbers across 15 catalogued positions including 357 127 419, 1H0 127 401 E and 1H0 127 401. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 14 OEM part numbers across 15 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Fuel filter Diesel eng.+AAZ	—
(10)	distance plate	357 127 419
(3)	Fuel filter	1H0 127 401 E
(3)	Fuel filter	1H0 127 401
(9)	clamp 12,6 12,6	N 100 497 01
1	Retainer for fuel filter	191 127 223 A
2	hexagon nut, self-locking M 8 M 8	N 900 744 04
2	hexagon nut, self-locking M 8 M 8	N 900 744 01
4	Socket head bolt withinner multipoint head M 6 X 55 M 6 X 55	N 102 475 04
5	Valve	191 127 247 A
6	O-ring 15,4 X 1,8 15,4 X 1,8	N 904 264 02
6	O-ring 15,4 X 1,78 15,4 X 1,78	N 904 264 01
7	Spring clip	323 127 250
8	clamp 14,8 14,8	N 100 834 01
8	Clamp 14,8 X 7 X 0,60 14,8 X 7 X 0,60	N 101 969 01

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1993 - 1996
Generation region: MEX
Generation code: 128
Variant tags: diesel
Factory group: 01 Engine
Factory subgroup: 127030
