Secondary air pump — Mk3 Golf Engine (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Secondary air pump

Generation: Mk3 1993 - 1996 (MEX) Group: Engine Rebuild step 1 Parts: 44 Primary OEM: 06A 131 120 A, N 101 961 03, 021 131 119 A

Secondary air pump for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 131011 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 39 OEM part numbers across 44 catalogued positions including 06A 131 120 A, N 101 961 03 and 021 131 119 A. Parts on this plate carry the engine code AAA. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 39 OEM part numbers across 44 numbered positions.

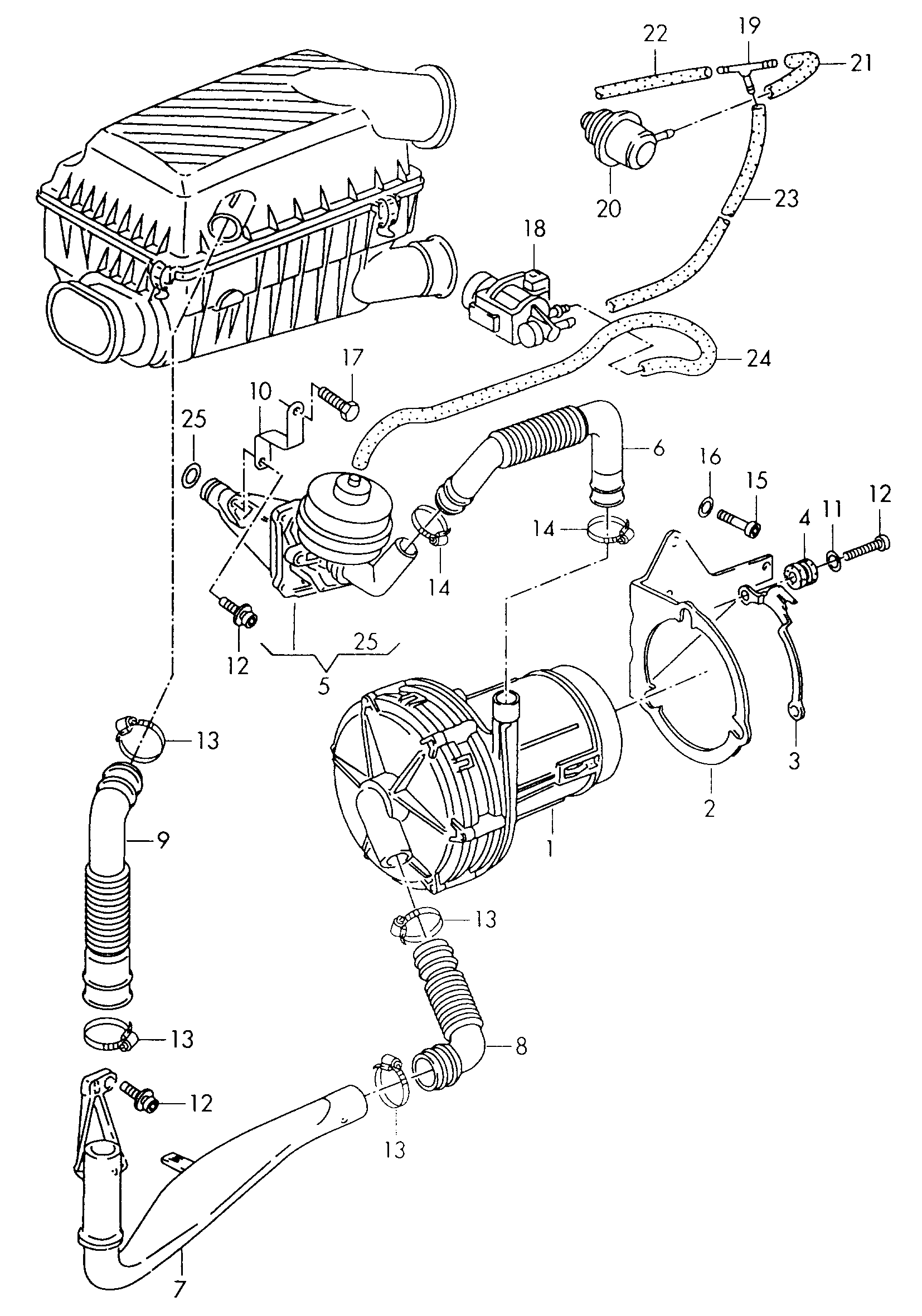

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Secondary air pump 2.8 Ltr. AAA 2.8 Ltr. AAA	—
-	Seal F 1 H-T-000 001>>	06A 131 120 A
-	Oval socket head boltwith hex drive F 1 H-T-000 001>> M 6 X 18 M 6 X 18	N 101 961 03
-	Adapter F 1 H-T-000 001>>	021 131 119 A
-	Seal F 1 H-T-000 001>>	021 131 120
-	Connecting pipe F 1 H-T-000 001>>	1H0 131 126 B
-	Hose(Bulk stock) 3,5 X 2 3,5 X 2	N 020 353 5
-	Washer F 1 H-T-000 001>> 6,4 X 12,5 X 1,6 6,4 X 12,5 X 1,6	N 011 524 23
(1)	Secondary air pump F 1 H-T-004 579>>F 1 H-T-109 977>> "MEX""USA"+"CDN"	021 959 253 B
(1)	Secondary air pump F 1 H-T-000 001>> 1 H-T-004 578 F 1 H-T-000 001>> 1 H-T-109 976 "MEX""USA"+"CDN"	078 906 601 E
(1)	Secondary air pump F 1 H-T-000 001>> 1 H-T-004 578	078 906 601 B
(11)	Washer 6,4 X 18 X 1,6 6,4 X 18 X 1,6	N 011 666 15
(11)	Washer 6,4 X 18 X 1,6 6,4 X 18 X 1,6	N 011 666 20
(20)	Fuel pressure regulator F 1 H-T-000 001>> see illustration: 133-092 133-092	037 133 035 C
(5)	kombi valve F 1 H-T-000 001>>	021 131 101 A
(6)	angled hose F 1 H-T-000 001>>	021 131 149 A
(8)	angled hose F 1 H-T-000 001>>	021 131 128 B
(9)	Connecting hose	357 131 128
1	Secondary air pump F >> 1 H-S-999 000	021 959 253
10	Retaining bracket	021 131 131
12	Socket head bolt with hexagonsocket head (combination) M 6 X 22 M 6 X 22	N 101 725 01
13	Clamp 23-35 X 9 X 0,5 23-35 X 9 X 0,5	N 102 581 01
14	Clamp 16-28 X 9 X 0,5 16-28 X 9 X 0,5	N 905 618 01
15	Socket head bolt withhexagon socket head M 8 X 16 M 8 X 16	N 014 739 2
15	Socket head bolt withhexagon socket head M 8 X 16 M 8 X 16	N 014 739 1
16	Washer 8 X 16 X 2 8 X 16 X 2	N 015 278 2
16	Washer 8 X 16 X 2 8 X 16 X 2	N 015 278 5
17	Hexagon bolt M 6 X 15 M 6 X 15	N 010 215 27
18	Solenoid valve	191 906 283 A
19	t-piece 4-4-4 4-4-4	2D0 129 737 A
19	t-piece 4/4/4 4/4/4	113 201 943 B
2	Retainer for pump	021 131 085
20	Fuel pressure regulator	078 133 534 C
21	shorten to: 50 MM 50 MM	—
22	shorten to: 60 MM 60 MM	—
23	shorten to: 230 MM 230 MM	—
24	shorten to: 260 MM 260 MM	—
25	O-ring 14 X 2,5 14 X 2,5	N 906 424 01
3	Retainer for pump	021 131 085 A
4	Damping rubber	021 131 085 B
5	kombi valve F >> 1 H-S-999 000	021 131 101
6	angled hose F >> 1 H-S-999 000	021 131 127
7	Connecting pipe	021 131 128
8	angled hose F >> 1 H-S-999 000	021 131 128 A
