Which VW part numbers are on the securing parts engine diagram for the Mk3 Golf?

This diagram lists 85 OEM part numbers for the Mk3 Golf. The first three are 1HM 199 200 D, 1HM 199 200 E and 1HM 199 273.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1993 - 1996 generation (MEX). The parts on it carry the engine codes AAA, AAB, AAM, AAZ, ABA, ACC, ADC and ADD.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Securing parts engine — Mk3 Golf Engine (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Securing parts for engine

Generation: Mk3 1993 - 1996 (MEX) Group: Engine Rebuild step 1 Parts: 86 Primary OEM: 1HM 199 200 D, 1HM 199 200 E, 1HM 199 273

Securing parts engine for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 199020 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 85 OEM part numbers across 86 catalogued positions including 1HM 199 200 D, 1HM 199 200 E and 1HM 199 273. Parts on this plate carry the engine codes AAA, AAB, AAM, AAZ, ABA, ACC, ADC and ADD. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 85 OEM part numbers across 86 numbered positions.

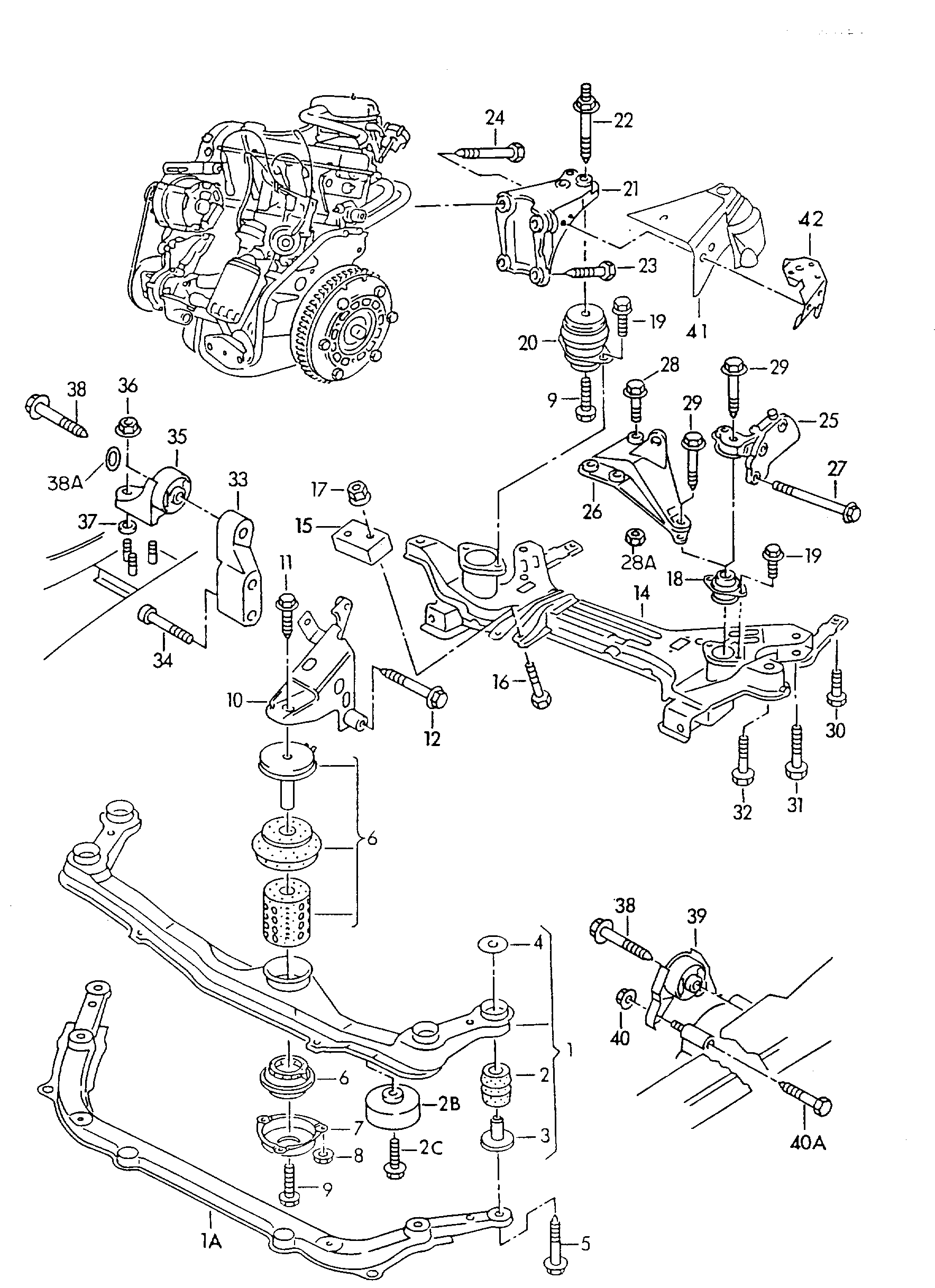

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	securing parts for engine AAA,AAM,ABA,ACC,ADC,ADDDiesel eng.+AAZ AAAAAMABAACCADC	—
(1)	engine carrier with rubbermounting F >> 1 H-S-000 054* ABA,ACC,ADC,ADD ABAACCADCADD	1HM 199 200 D
(1)	engine carrier with rubbermounting F 1 H-R-002 513>> 1 H-R-002 746 F 1 H-S-000 055>>* ABA,ACC,ADC,ADDADC,ADD ABAACCADCADD	1HM 199 200 D
(1)	engine carrier with rubbermounting AAA,CALIFORNIA+ABA AAA	1HM 199 200 E
(10)	Console F >> 1 H-T-112 399F >> 1 H-T-005 240 "USA"CDN"+Manualgearbox+AAZ,ABA,ACC"MEX"+Manualgearbox+AAM,AAA,ABA,ACC,ADC,ADD AAAABAACCADCADD	1HM 199 273
(10)	Console Automatic+AAZ,ABA,ACC,AAB,ADC,ADD AABABAACCADCADD	1H0 199 273 C
(10)	Console F >> 1 H-T-005 240* manualgearbox	1H0 199 273 A
(10)	Console F 1 H-T-112 400>>F 1 H-T-005 241>> "USA"+"CDN"+Manualgearbox+AAZ,ABA,ACC"MEX"Manualgearbox+AAM,AAA,ABA,ACC,ADD,ADD AAAABAACCADD	1HM 199 273
(10)	Console Automatic+AAA	357 199 273 C
(12)	Socket head bolt withinner multipoint head M 10 X 60 X 27 Automatic+AAA M 10 X 60 X 27	N 904 897 01
(12)	Hex collared bolt AM 10 X 45-SW 16 Manualgearbox+AAA AM 10 X 45-SW 16	N 102 416 03
(14)	Assembly carrier AAA AAA	1H0 199 315 H
(14)	Assembly carrier AAA AAA	1H0 199 315 AA
(15)	Balance weight F >> 1 H-T-099 000* AAZ AAZ	1H0 199 322 J
(15)	Balance weight F 1 H-T-099 001>>* AAZ AAZ	1HM 199 322 A
(18)	Bonded rubber bush Automatic+ADD,ACC ACC	357 199 381 C
(18)	Bonded rubber bush ADD,ADC ADCADD	1HM 199 381
(18)	Bonded rubber bush ADD,ADC,AZZ"CDN"+Manualgearbox+ABA ADCADD	357 199 402 B
(18)	Bonded rubber bush ADD,ADC"CDN"+Manualgearbox+ABA ADD	357 199 402 B
(18)	Bonded rubber bush AAA AAA	3A0 199 402
(1A)	Cross member	1E0 199 171
(2)	Bonded rubber bush	1H0 199 233 A
(20)	Bonded rubber bush Manualgearbox ABA,ADC,AAZ AAZADC	1H0 199 262 B
(20)	Bonded rubber bush AAM,ACC,ADDAutomatic+ABA,ADC,AZZ AAMACCADCAZZ	1H0 199 262 A
(21)	Console Automatic+AAZ,ABA,ACC,AAM,ADC,ADD AAMABAACCADCADD	1HM 199 354 A
(21)	Console F 1 H-S-018 806>>F 1 H-S-053 870>> "MEX"+Manualgearbox+AAA"USA"+"CDN+Manualgearbox+AAA	1HM 199 354 B
(21)	Console Automatic+AAA	357 199 354 K
(21)	Console Manualgearbox+AAZ,ABA,ACC,AAM,ADC,ADD AAMABAACCADCADD	1HM 199 354
(23)	Hex collared bolt M 8 X 35 AAZ,ABA,ACC,AAM,ADC,ADD M 8 X 35 AAMAAZABAACCADCADD	N 101 953 01
(24)	Hex collared bolt M 8 X 45 AAZ,ABA,ACCAAM,ADC,ADD M 8 X 45 AAZABAADCADD	N 019 504 2
(25)	Gearbox support Manualgearbox+AAA	357 199 356
(25)	Console also use: also use: >>1 H-S-035657>>1 H-S-041119 N 101 028 03 >>1 H-S-035657>>1 H-S-041119 N 101 028 03	1HM 199 353 B
(26)	Console automatic	357 199 353 B
(27)	Hexagon bolt M 10 X 60 AAA M 10 X 60 AAA	N 100 487 03
(27)	Hex collared bolt M 10 X 70 AAZ,ABA,ACC,AAM,ADC,ADD M 10 X 70 AAMAAZABAACCADCADD	N 019 532 4
(27)	Hex collared bolt AM 10 X 60-SW 16 AAA AM 10 X 60-SW 16 AAA	N 102 862 05
(27)	Hex collared bolt M 8 X 92 AAA M 8 X 92 AAA	N 100 670 03
(27)	Hex collared bolt M 10 X 60 AAA M 10 X 60 AAA	N 102 862 03
(28)	Hex collared bolt M 8 X 35 automatic M 8 X 35	N 101 953 01
(28A)	Hexagon nut M 10 AAZ,ABA,ACCAAM.ADC,ADD M 10 AAZABAADD	N 101 552 10
(3)	Sleeve F >> 1 H-R-002 512 F >> 1 H-R-028 845 "MEX"+AAM,AAA,ABA,ACC,ADD"USA"+"CDN"+AAA,ABA,ACC,AAZ AAAAAZABAACC	1E0 199 157
(30)	Hexagon bolt F 1 H-R-044 757>>	1HM 199 441 A
(6)	Bonded rubber bush AAZ AAZ	1H0 199 609 B
(6)	Bonded rubber bush AAM,ACC,ADD AAMACCADD	1H0 199 609 F
(6)	Bonded rubber bush ABA,ADC ABAADC	1H0 199 609 G
1	engine carrier with rubbermounting ABA,ACC,ADC,ADD,AAZ AAZABAACCADCADD	1HM 199 200 D
10	Console Manualgearbox+AAA	1H0 199 273 D
11	Hex collared bolt Bonded rubber bush M 10 X 30 M 10 X 30	N 100 704 03
12	Hexagon bolt M 10 X 60 Manualgearbox+AAZ,ABA,ACC,AAM,ADC,ADD M 10 X 60 AAMABAACCADCADD	N 100 487 03
12	Hex collared bolt M 10 X 45 Manualgearbox+AAA M 10 X 45	N 102 416 05
14	Assembly carrier AAZ,ABA,ACC,AAM,ADV,ADD AAMAAZABAACCADDADV	1H0 199 315 AA
15	Balance weight	1H0 199 322 D
15	Balance weight AAZ AAZ	1H0 199 322 J
15	Balance weight AAM,ABA.ACC,ADC,ADD AAMADCADD	1H0 199 322 H
16	Hexagon bolt M 8 X 55 M 8 X 55	N 100 012 04
17	Hexagon collar nutself-locking M 8 M 8	N 902 264 03
18	Bonded rubber bush Automatic+ABA,ADC, ADC	357 199 402 B
19	Hex collared bolt M 8 X 20 M 8 X 20	N 019 533 4
19	Hex collared bolt M 8 X 22 M 8 X 22	N 019 526 5
20	Bonded rubber bush AAA AAA	1H0 199 262 K
21	Console F >> 1 H-S-018 805F >> 1 H-S-053 869 "MEX"+Manualgearbox+AAA"USA"+"CDN"+Manualgearbox+AAA	357 199 354 J
22	double stud with hexagon drive M 10 X 58/M 8 X 12 M 10 X 58/M 8 X 12	N 905 532 02
23	Hexagon bolt M 10 X 42 AAA M 10 X 42 AAA	N 102 685 01
23	Hex collared bolt M 10 X 42 AAA M 10 X 42 AAA	N 019 525 2
23	Hexagon bolt M 10 X 42 AAA M 10 X 42 AAA	N 102 685 03
24	Hex collared bolt M 10 X 52 AAA M 10 X 52 AAA	N 101 751 02
25	Console AAA AAA	357 199 353 A
27	Hexagon bolt M 8 X 98 AAZ,ABA,ACCAAM,ADC,ADD M 8 X 98 AAZABAADCADD	N 101 028 03
28	Hexagon bolt M 10 X 42 AAA M 10 X 42 AAA	N 102 685 03
28	Hex collared bolt M 10 X 42 AAA M 10 X 42 AAA	N 019 525 2
28	Hexagon bolt M 10 X 42 AAA M 10 X 42 AAA	N 102 685 01
28A	Hexagon nut M 10 M 10	N 011 010 11
28A	Hexagon nut M 10 AAZ,ABA,ACCAAM.ADC,ADD M 10 AAZABAADD	N 101 552 07
29	Hex collared bolt M 10 X 45 M 10 X 45	N 102 416 05
29	Hex collared bolt AM 10 X 45-SW 16 AM 10 X 45-SW 16	N 102 416 03
3	Sleeve F 1 H-R-002 513>>F 1 H-R-028 846>> "MEX"+AAM,ABA,AAA,ACC,ADC,ADD"USA"+CDN+AAA,ABA,ACC,AAZ AAAAAZABAACCADC	1E0 199 157 A
30	Hex collared bolt M 10 X 24 M 10 X 24	N 102 575 01
32	Hex collared bolt M 12 X 1,5 X 65 M 12 X 1,5 X 65	N 102 096 03
32	Hex collared bolt M 12 X 1,5 X 65 M 12 X 1,5 X 65	N 102 096 05
4	Washer F 1 H-R-002 513>>F 1 H-R-028 846>> 15 X 50 X 2,5 "MEX"+AAM,ABA,ACC,AAA,ADC,ADD"USA"+"CDN"+AAA,ABA,ACC,AAZ 15 X 50 X 2,5 AAAAAZABAACCADC	1H0 199 175 A
5	Hex collared bolt M 10 X 62 M 10 X 62	N 102 465 01
6	Bonded rubber bush AAA AAA	1H0 199 609 K
7	Stop AAA,CALIFORNIA+ABA AAA	1H0 199 635
8	hexagon nut, self-locking M 8 AAA,ABA M 8 AAAABA	N 900 744 04
8	hexagon nut, self-locking M 8 AAA,ABA M 8 AAAABA	N 900 744 01
9	shouldered bolt M 10 X 32 M 10 X 32	N 102 302 01

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1993 - 1996
Generation region: MEX
Generation code: 128
Engine codes on this plate: AAA, AAB, AAM, AAZ, ABA, ACC, ADC, ADD
Factory group: 01 Engine
Factory subgroup: 199020
