Which VW part numbers are on the steering lock ignition starter switch diagram for the Mk3 Golf?

This diagram lists 11 OEM part numbers for the Mk3 Golf. The first three are BAT 419 209, 357 905 851 E and N 905 830 01.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1993 - 1996 generation (MEX). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Steering lock ignition starter switch — Mk3 Golf Engine (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Ignition lead. Spark plug. Glow plug. current rail. ignition transformer

Generation: Mk3 1993 - 1996 (MEX) Group: Engine Rebuild step 1 Parts: 12 Primary OEM: BAT 419 209, 357 905 851 E, N 905 830 01

Steering lock ignition starter switch for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 905080 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 11 OEM part numbers across 12 catalogued positions including BAT 419 209, 357 905 851 E and N 905 830 01. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 11 OEM part numbers across 12 numbered positions.

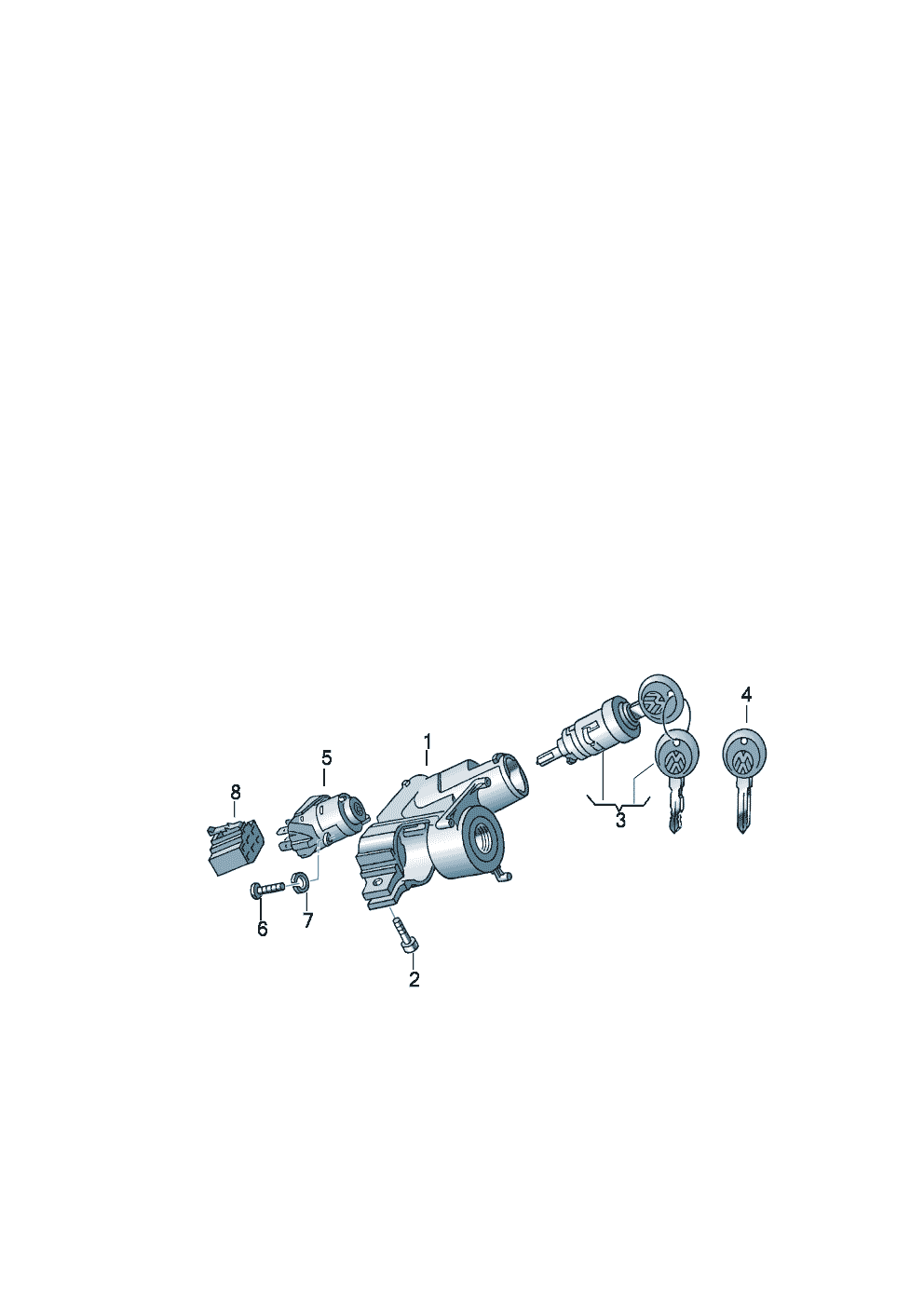

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Pin	BAT 419 209
(1)	Steering lock with keylocking system automatic	357 905 851 E
(2)	sheer bolt	N 905 830 01
(3)	lock cylinder for ignitionstarter switch F >> 1 H-T-035 775	1H0 905 855 A
(3)	lock cylinder for ignitionstarter switch F 1 H-T-035 776>>	357 905 855 B
(8)	Flat contact housing	357 953 631
1	Steering lock without ignitionswitch	357 905 851 D
2	Socket head bolt withhexagon socket head M 8 X 16 M 8 X 16	N 014 739 2
4	see illustration: 837-000 837-000	—
5	Ignition/starter switch	6N0 905 865
6	round hd. screw M 3 X 6 M 3 X 6	N 044 115 5
7	spring ring 3 3	N 012 003 2

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1993 - 1996
Generation region: MEX
Generation code: 128
Factory group: 01 Engine
Factory subgroup: 905080
