Which VW part numbers are on the base engine short block diagram for the Mk3 Golf?

This diagram lists 54 OEM part numbers for the Mk3 Golf. The first three are 028 100 033 Q, 028 100 033 M and 028 100 090 TX.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The parts on it carry the engine codes 1Y, 1Z, AAA, AAM, AAZ, ABF, ACC and ADZ.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Base engine short block — Mk3 Golf Engine (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Short block. Base engine

Generation: Mk3 1997 (RDW) Group: Engine Rebuild step 1 Parts: 54 Primary OEM: 028 100 033 Q, 028 100 033 M, 028 100 090 TX

Base engine short block for the Volkswagen Golf Mk3 (1997): factory exploded diagram 100010 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 54 OEM part numbers including 028 100 033 Q, 028 100 033 M and 028 100 090 TX. Parts on this plate carry the engine codes 1Y, 1Z, AAA, AAM, AAZ, ABF, ACC and ADZ. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 54 OEM part numbers across 54 numbered positions.

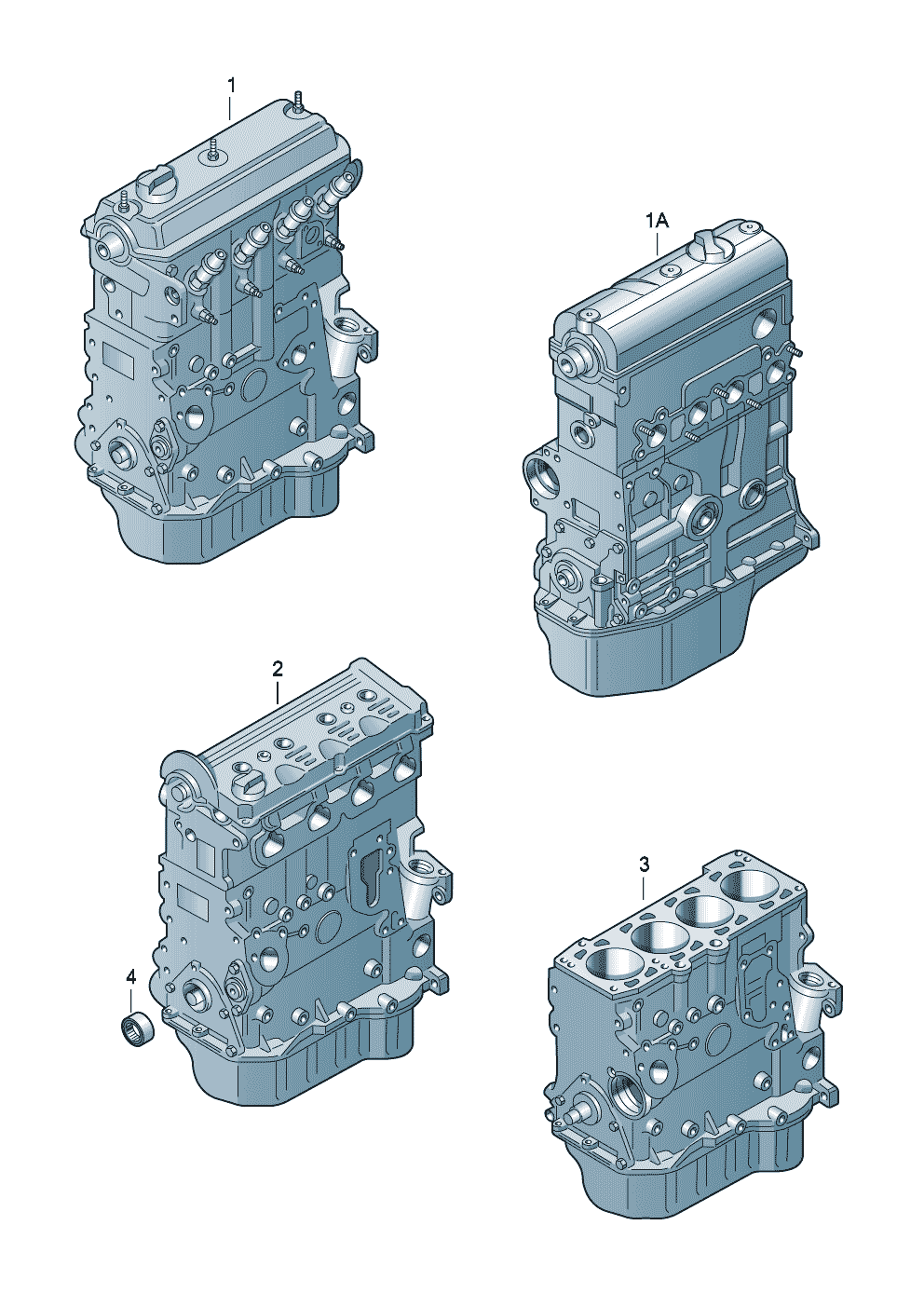

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
(1)	Base engine 81 KW AFN 81 KW AFN	028 100 033 Q
(1)	Base engine 66 KW ALE 66 KW ALE	028 100 033 M
(1)	Base engine 66 KW ALE 66 KW ALE	028 100 090 TX
(1)	Base engine 66 KW 1 Z,AHU 66 KW 1ZAHU	028 100 031 FX
(1)	Base engine 55 KW AAZ 55 KW AAZ	028 100 090 CX
(1)	Base engine 66/81 KW 1 Z,AHU,AFN 66/81 KW 1ZAFNAHU	028 100 090 HX
(1)	Base engine 55 KW AAZ 55 KW AAZ	028 100 035 C
(1)	Base engine 47 KW AEY 47 KW AEY	028 100 092 AX
(1)	Base engine 66 KW 1 Z,AHU 66 KW 1ZAHU	028 100 031 F
(1)	Base engine 47 KW 1 Y 47 KW 1Y	028 100 090 LX
(1)	Base engine 81 KW AFN 81 KW AFN	028 100 033 D
(1)	Base engine 66 KW 1 Z,AHU 66 KW 1ZAHU	028 100 034 T
(1)	Short block 74 KW AFT,AKS 74 KW AFTAKS	050 100 103 CX
(1A)	Base engine 44 KW AEX,APQ 44 KW AEXAPQ	030 100 035 F
(1A)	Base engine use if required: 44 KW 030 109 127 P 030 109 243 K 032 105 263 C AEX,APQ 44 KW 030 109 127 P 030 109 243 K 032 105 263 C AEXAPQ	030 100 098 NX
(1A)	Base engine 55 KW AEE 55 KW AEE	032 100 032 BX
(1A)	Base engine also use: 55 KW 030 109 243 KN 010 361 11 N 011 525 20030 109 127 P 032 105 263 C AEE 55 KW 030 109 243 KN 010 361 11 N 011 525 20030 109 127 P 032 105 263 C AEE	032 100 098 KX
(1A)	Base engine F >> 1 H-WD 119 000F >> 1 H-WW 151 000 55 KW AEE 55 KW AEE	032 100 031 S
(1A)	Base engine use if required: 44 KW 030 109 127 P 030 109 243 J 032 105 263 C AEX,APQ 44 KW 030 109 127 P 030 109 243 J 032 105 263 C AEXAPQ	030 100 035 FX
(1A)	Base engine F 1 H-WD 119 001>>F 1 H-WW 151 001>> 55 KW AEE 55 KW AEE	032 100 032 B
(2)	Base engine 74 KW AFT 74 KW AFT	050 100 031 GX
(2)	Base engine 66 KW ACC 66 KW ACC	051 100 031 N
(2)	Base engine 110 KW ABF 110 KW ABF	037 100 031 L
(2)	Base engine 66 KW ADZ 66 KW ADZ	051 100 031 F
(2)	Base engine 55 KW AAM 55 KW AAM	051 100 098 AX
(2)	Base engine 74 KW AKS 74 KW AKS	050 100 031 HX
(2)	Base engine 74 KW AKS 74 KW AKS	050 100 031 H
(2)	Base engine 79 KW AEP 79 KW AEP	037 100 032 M
(2)	Base engine 55 KW AAM 55 KW AAM	051 100 031 G
(2)	Base engine 110 KW ABF 110 KW ABF	037 100 031 LX
(2)	Base engine 74 KW AFT 74 KW AFT	050 100 031 G
(2)	Base engine 79 KW AEP 79 KW AEP	037 100 032 MX
(2)	Base engine 85 KW AGG 85 KW AGG	037 100 032 SX
(2)	Base engine 85 KW AGG,AKR 85 KW AGGAKR	037 100 032 S
(3)	Short block 55 KW AAZ 55 KW AAZ	028 100 103 CX
(3)	Short block 48 KW 1 Y 48 KW 1Y	028 100 103 EX
(3)	Short block 55/66 KW AAM,ACC 55/66 KW AAMACC	051 100 103 CX
(3)	Short block 79 KW AEP 79 KW AEP	037 100 103 MX
(3)	Short block 85 KW AGG,AKR 85 KW AGGAKR	037 100 103 PX
(3)	Short block also use: 55 KW 030 109 243 KN 010 361 11 N 011 525 13 AEE 55 KW 030 109 243 KN 010 361 11 N 011 525 13 AEE	032 100 103 EX
(3)	Short block 110 KW ABF 110 KW ABF	037 100 103 HX
(3)	Short block 66 KW ALE 66 KW ALE	028 100 104 X
(3)	Short block 66 KW ADZ 66 KW ADZ	051 100 103 EX
(3)	Short block 55/66 KW AAM,ACC 55/66 KW AAMACC	051 100 103 C
(3)	Short block 55 KW AEE 55 KW AEE	032 100 103 AX
(3)	Short block 44 KW AEX 44 KW AEX	030 100 103 TX
(3)	Short block 44 KW AEX,APQ 44 KW AEXAPQ	030 100 104 CX
1	Base engine 47 KW AEY 47 KW AEY	028 100 034 QX
1	Base engine 47 KW AEY 47 KW AEY	028 100 034 Q
1A	Base engine 44 KW AEX 44 KW AEX	030 100 034 E
2	Base engine also use: 128 KW >>M AAA 262999021 109 127 B 021 905 163 AAA 128 KW >>M AAA 262999021 109 127 B 021 905 163 AAA	021 100 031 E
2	Base engine if necessary, adopt from old unit: 128 KW >>M AAA 262999021 109 127 B 021 905 163 AAA 128 KW >>M AAA 262999021 109 127 B 021 905 163 AAA	021 100 031 EX
3	Short block 81 KW AFN,1 Z,AHU,AEY 81 KW 1ZAEYAFNAHU	028 100 103 QX
3	Short block 47/66 KW AEY,1 Z,AHU 47/66 KW 1ZAEYAHU	028 100 103 HX

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: 1Y, 1Z, AAA, AAM, AAZ, ABF, ACC, ADZ
Variant tags: diesel
Factory group: 01 Engine
Factory subgroup: 100010
