Which VW part numbers are on the base engine short block diagram for the Mk3 Golf?

This diagram lists 44 OEM part numbers for the Mk3 Golf. The first three are 051 100 098 X, 028 100 031 F and 051 100 098 AX.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1995 generation (RDW). The parts on it carry the engine codes 1Y, 1Z, 2E, AAA, AAM, AAZ, ABD and ABF.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Base engine short block — Mk3 Golf Engine (1995)

Factory title: Volkswagen Golf (1995) - Short block. Base engine

Generation: Mk3 1995 (RDW) Group: Engine Rebuild step 1 Parts: 44 Primary OEM: 051 100 098 X, 028 100 031 F, 051 100 098 AX

Base engine short block for the Volkswagen Golf Mk3 (1995): factory exploded diagram 100010 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 44 OEM part numbers including 051 100 098 X, 028 100 031 F and 051 100 098 AX. Parts on this plate carry the engine codes 1Y, 1Z, 2E, AAA, AAM, AAZ, ABD and ABF. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 44 OEM part numbers across 44 numbered positions.

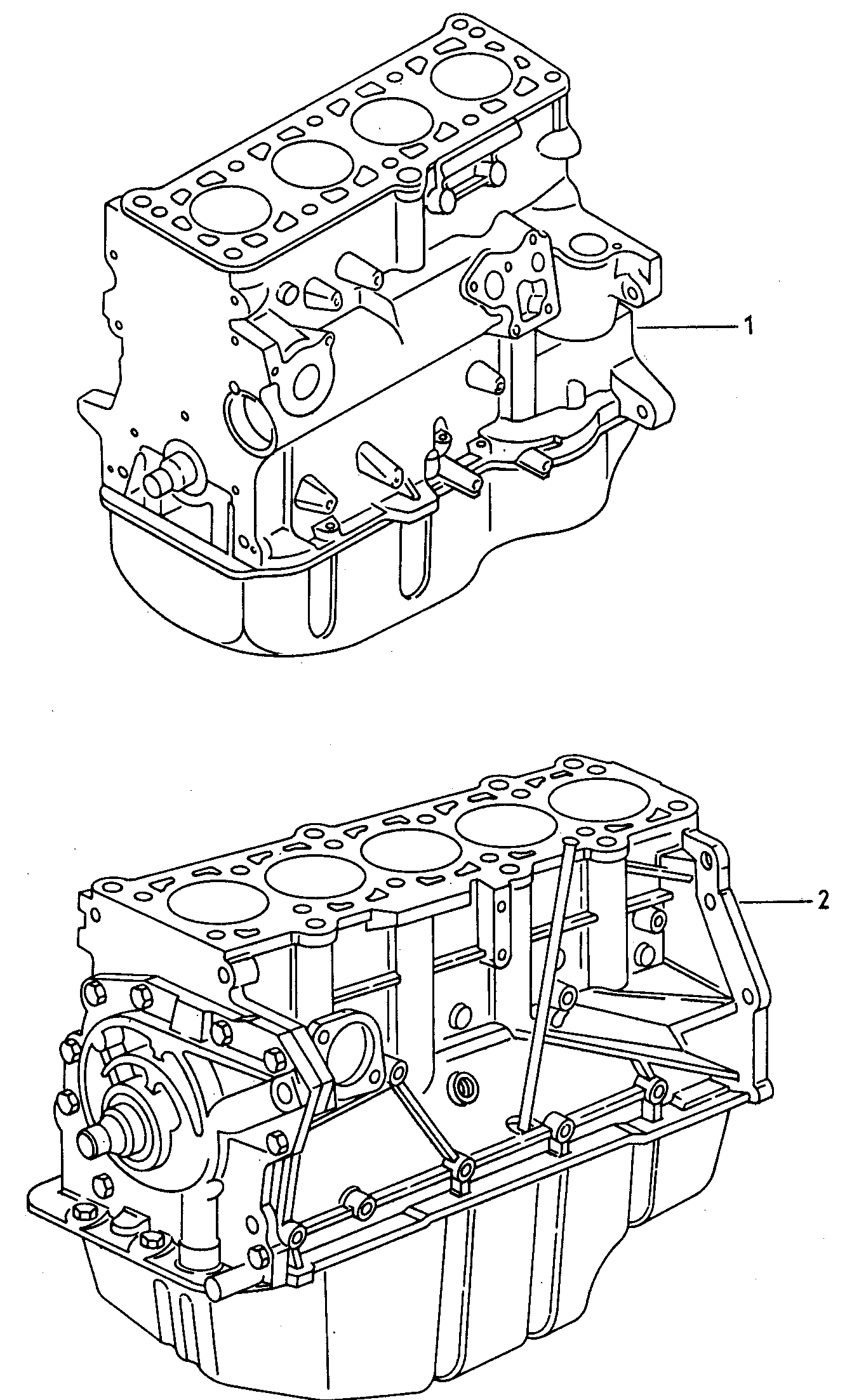

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Base engine M >> ABS 935 648 66 KW ABS 66 KW ABS	051 100 098 X
-	Base engine 66 KW 1 Z 66 KW 1Z	028 100 031 F
-	Base engine M >> AAM 408 197 55 KW AAM 55 KW AAM	051 100 098 AX
-	Base engine 66 KW 1 Z 66 KW 1Z	028 100 034 T
-	Base engine 47 KW 1 Y 47 KW 1Y	028 100 090 LX
-	Base engine 55 KW ABU 55 KW ABU	032 100 031 N
-	Base engine 74 KW AEK 74 KW AEK	050 100 031 FX
-	Base engine 55 KW AAZ 55 KW AAZ	028 100 031 M
-	Base engine 66 KW 1 Z 66 KW 1Z	028 100 031 FX
-	Base engine 55 KW AEA 55 KW AEA	032 100 031 F
-	Base engine 85 KW ADY 85 KW ADY	037 100 032 LX
-	Base engine 66 KW 1 Z 66 KW 1Z	028 100 090 HX
-	Base engine 66 KW ABS,ADZ 66 KW ABSADZ	051 100 031 F
-	Base engine F 1 H-SP 078 144>>F 1 H-SB 016 396>>F 1 H-SW 116 879>> 44 KW ABD 44 KW ABD	030 100 034 AX
-	Base engine 55 KW ABU 55 KW ABU	032 100 098 AX
-	Short block F 1 H-S-064 182>> 1 H-S-078 143 F >> 1 H-SB 016 395 F >> 1 H-SW 116 878 also use: 44 KW 030 103 265 KX ABD 44 KW 030 103 265 KX ABD	030 100 103 JX
-	Base engine F 1 H-S-064 182>> 1 H-SP 078 143 F >> 1 H-SB 016 395 F >> 1 H-SW 116 878 44 KW ABD 44 KW ABD	030 100 034 C
-	Base engine also use: 128 KW 021 109 125 A 021 109 475 AAA 128 KW 021 109 125 A 021 109 475 AAA	021 100 031 E
-	Base engine 85 KW ADY 85 KW ADY	037 100 032 L
-	Base engine 110 KW ABF 110 KW ABF	037 100 031 L
-	Base engine 66 KW ACC 66 KW ACC	051 100 031 N
-	Base engine if necessary, adopt from old unit: 128 KW 021 109 125 A 021 109 475 AAA 128 KW 021 109 125 A 021 109 475 AAA	021 100 031 EX
-	Base engine F 1 H-SP 078 144>>F 1 H-SB 016 396>>F 1 H-SW 116 879>> 44 KW ABD 44 KW ABD	030 100 034 A
-	Base engine 55 KW AEA 55 KW AEA	032 100 098 BX
-	Base engine 55 KW AAZ 55 KW AAZ	028 100 090 CX
-	Base engine 55 KW AAZ 55 KW AAZ	028 100 035 C
-	Base engine 74 KW AEK 74 KW AEK	050 100 031 F
(1)	Short block 110 KW ABF 110 KW ABF	037 100 103 HX
(1)	Short block 55 KW Diesel eng.+AAZ 55 KW	028 100 103 C
(1)	Short block 55 KW Diesel eng.+AAZ 55 KW	028 100 103 CX
(1)	Short block 66 KW Diesel eng.+1 Z 66 KW	028 100 103 QX
(1)	Short block 66 KW Diesel eng.+1 Z 66 KW	028 100 103 HX
(1)	Short block 85 KW 2 E 85 KW 2E	037 100 103 DX
(1)	Short block 55/66 KW AAM,ACC 55/66 KW AAMACC	051 100 103 CX
(1)	Short block 74 KW AEK 74 KW AEK	050 100 103 CX
(1)	Short block 55 KW AAM 55 KW AAM	051 100 103 C
(1)	Short block 85 KW ADY 85 KW ADY	037 100 103 RX
(1)	Short block F 1 H-SP 078 144>>F 1 H-SB 016 396>>F 1 H-SW 116 879>> 44 KW ABD 44 KW ABD	030 100 104 HX
(1)	Short block 66 KW ABS,ADZ 66 KW ABSADZ	051 100 103 EX
(1)	Short block 85 KW 2 E 85 KW 2E	037 100 103 D
(1)	Short block 48 KW Diesel eng.+1 Y 48 KW 1Y	028 100 103 E
(1)	Short block 48 KW Diesel eng.+1 Y 48 KW 1Y	028 100 103 EX
1	Short block F >> 1 H-S-078 143 44 KW ABD 44 KW ABD	030 100 103 J
1	Short block F >> 1 H-SP 078 143 F >> 1 H-SB 016 395 F >> 1 H-SW 116 878 44 KW ABD 44 KW ABD	030 100 103 JX

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1995
Generation region: RDW
Generation code: 159
Engine codes on this plate: 1Y, 1Z, 2E, AAA, AAM, AAZ, ABD, ABF
Variant tags: diesel
Factory group: 01 Engine
Factory subgroup: 100010
