Which VW part numbers are on the camshaft valves 1 6 2 0 litres diagram for the Mk3 Golf?

This diagram lists 42 OEM part numbers for the Mk3 Golf. The first three are 050 109 101 A, 048 109 101 D and 026 109 101 Q.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The parts on it carry the engine codes 1Y, 1Z, AAM, AAZ, ACC, ADY, ADZ and AEK.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Camshaft valves 1 6 2 0 litres — Mk3 Golf Engine (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Repair kit for toothed belt with tensioning roller

Generation: Mk3 1997 (RDW) Group: Engine Rebuild step 1 Parts: 43 Primary OEM: 050 109 101 A, 048 109 101 D, 026 109 101 Q

Camshaft valves 1 6 2 0 litres for the Volkswagen Golf Mk3 (1997): factory exploded diagram 109010 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 42 OEM part numbers across 43 catalogued positions including 050 109 101 A, 048 109 101 D and 026 109 101 Q. Parts on this plate carry the engine codes 1Y, 1Z, AAM, AAZ, ACC, ADY, ADZ and AEK. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 42 OEM part numbers across 43 numbered positions.

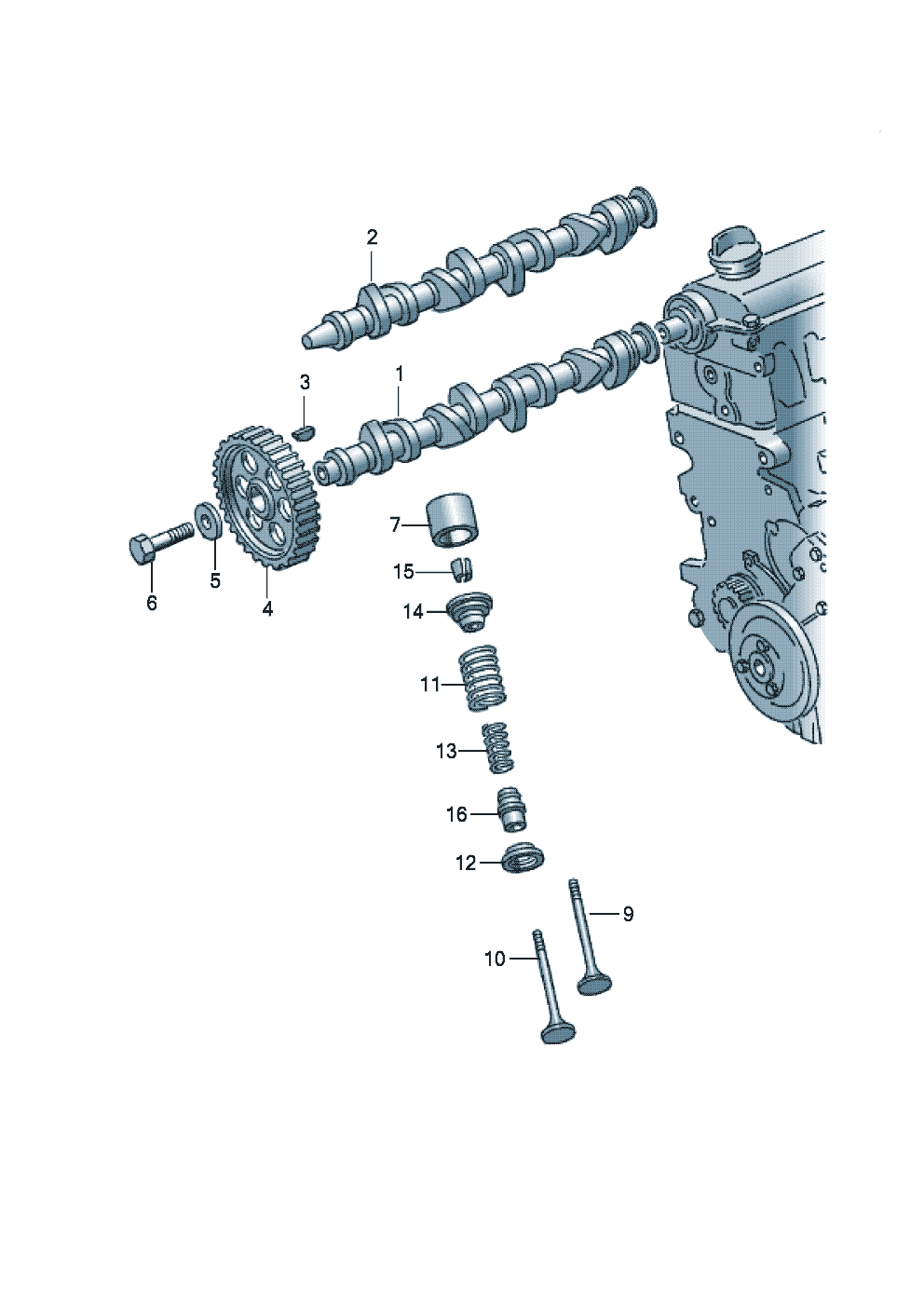

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	camshaft, valves 1.6-2.0 litres 1.9 ltr. AAM,ADZ,ACC,AEK,AFT,AKS,AGG,AKR,AEPDiesel eng.+1 Y,AEY,AAZ,1 Z,AHU,ALE,AFN 1.6-2.0 litres 1.9 ltr. 1ZAAMAAZACCADZAEKAEYAFNAFTAGGAHUAKRAKSALE	—
(1)	Camshaft AFT,AKS,AEP,AGG,AKR AEPAFTAGGAKRAKS	050 109 101 A
(1)	Camshaft AEK AEK	048 109 101 D
(1)	Camshaft ADZ,ACC ACCADZ	026 109 101 Q
(1)	Camshaft ADY ADY	037 109 101 B
(10)	exhaust valve 91,15 AEP,AEK,AFT,AKS,ADZ,AAM,AGG,AKR,ACC 91,15 AAMACCADZAEKAEPAFTAGGAKRAKS	048 109 611 B
(10)	exhaust valve 96,85 1 Z,AHU,ALE,AFN 96,85 1ZAFNAHUALE	028 109 611 G
(10)	exhaust valve 95,5 1 Y,AAZ 95,5 1YAAZ	028 109 611 E
(11)	Valve spring M 1 Z 800 001>>*M >> AHU 321 707 M >> ALE 045 694 M >> AFN 430 891	028 109 623 A
(11)	Valve spring M AHU 321 708>>M ALE 045 695>>M AFN 430 892>>	038 109 623 D
(11)	Valve spring AEP,AEK,AFT,AKS,ADZ,AAM,AGG,AKR,ACC AAMACCADZAEKAEPAFTAGGAKRAKS	078 109 623 C
(14)	spring disc AEP,AEK,AFT,AKS,ADZ,AAM,AGG,AKR,ACC AAMACCADZAEKAEPAFTAGGAKRAKS	078 109 641 C
(2)	Camshaft 1 Z,AHU,ALE,AFN 1ZAFNAHUALE	028 109 101 F
(2)	Camshaft AEY AEY	028 109 101 E
(2)	Camshaft 1 Y,AAZ 1YAAZ	028 109 101 G
(4)	toothed belt pulley 1 Y,AEY,AAZ,1 Z,AHU,ALE,AFN 1Y1ZAAZAEYAFNAHUALE	069 109 111
(6)	hexagon head bolt (combi) M 12 X 1,5 X 35 1 Y,AEY,AAZ,1 Z,AHU,ALE,AFN M 12 X 1,5 X 35 1Y1ZAAZAEYAFNAHUALE	N 905 021 02
(7)	Tappets AEP,AEK,AFT,AKS,ADZ,AAM,AGG,AKR,ACC AAMACCADZAEKAEPAFTAGGAKRAKS	050 109 309 H
(7)	Tappets AEP,AEK,AFT,AKS,ADZ,AAM,AGG,AKR,ACC AAMACCADZAEKAEPAFTAGGAKRAKS	050 109 309 J
(9)	Inlet valve 91,9 AEP,ADY,AEK,AFT,AKS,AGG,AKR 91,9 ADYAEKAEPAFTAGGAKRAKS	078 109 601 B
(9)	Inlet valve 96,85 1 Z,AHU,ALE,AFN 96,85 1ZAFNAHUALE	028 109 601 D
(9)	Inlet valve 91,9 ACC,AAM,ADZ 91,9 AAMACCADZ	048 109 601 E
(9)	Inlet valve 95,5 AAZ 95,5 AAZ	028 109 601 C
(9)	Inlet valve 95,5 1 Y 95,5 1Y	028 109 601 B
1	Camshaft AAM AAM	026 109 101 M
10	exhaust valve 96,35 AEY 96,35 AEY	028 109 611 K
11	Valve spring M 1 Z 800 001>>* AHU,AFN AFNAHU	068 109 623
11	Valve spring M >> 1 Z 800 000* 1 Y,AEY,AAZ 1YAAZAEY	028 109 623 B
12	spring disc M 1 Z 800 001>>*M >> AHU 321 707 M >> ALE 045 694 M >> AFN 430 891	056 109 629 A
13	Valve spring M 1 Z 800 001>>*M >> AHU 321 707 M >> ALE 045 694 M >> AFN 430 891	028 109 633 A
13	Valve spring M 1 Z 800 001>>* AHU,AFN AFNAHU	068 109 633
14	spring disc 1 Y,AEY,AAZ,1 Z,AHU,ALE,AFN 1Y1ZAAZAEYAFNAHUALE	021 109 641 C
15	cotter, split	021 109 651
16	Valve stem seal 7 MM 7 MM	027 109 675
3	woodruff key 4 X 5 4 X 5	N 012 708 2
4	toothed belt pulley AAM,ADZ,AEK,AFT,AKS,AEP,AGG,AKR,ACC AAMACCADZAEKAEPAFTAGGAKRAKS	049 109 111 C
5	Washer 12,5 X 28 X 6 12,5 X 28 X 6	056 109 143
6	Hexagon bolt M 12 X 1,5 X 35 AAM,AEP,ADZ,AEK,AFT,AKS,AGG,AKR,ACC M 12 X 1,5 X 35 AAMACCADZAEKAEPAFTAGGAKRAKS	N 010 137 1
6	hexagon head bolt (combi) M 12 X 1,5 X 35 1 Y,AEY,AAZ,1 Z,AHU,ALE,AFN M 12 X 1,5 X 35 1Y1ZAAZAEYAFNAHUALE	N 901 439 06
7	Tappets AEP,AEK,AFT,ADZ,AAM,ADY,AGG,ACC AAMACCADYADZAEKAEPAFTAGG	050 109 309 A
7	Tappets 1 Y,AEY,AAZ,1 Z,AHU,ALE,AFN 1Y1ZAAZAEYAFNAHUALE	034 109 309 AD
9	Inlet valve 96,55 AEY 96,55 AEY	028 109 601 J
9	Inlet valve 96,85 1 Z,AHU,AFN 96,85 1ZAFNAHU	028 109 601 K

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: 1Y, 1Z, AAM, AAZ, ACC, ADY, ADZ, AEK
Variant tags: diesel, petrol_8v_gti_or_gl
Factory group: 01 Engine
Factory subgroup: 109010
