Camshaft valves — Mk3 Golf Engine (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Repair kit for toothed belt with tensioning roller

Generation: Mk3 1997 (RDW) Group: Engine Rebuild step 1 Parts: 16 Primary OEM: 032 109 101 S, 032 109 623 E, 030 109 101 AM

Camshaft valves for the Volkswagen Golf Mk3 (1997): factory exploded diagram 109005 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 15 OEM part numbers across 16 catalogued positions including 032 109 101 S, 032 109 623 E and 030 109 101 AM. Parts on this plate carry the engine codes AEE and AEX. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 15 OEM part numbers across 16 numbered positions.

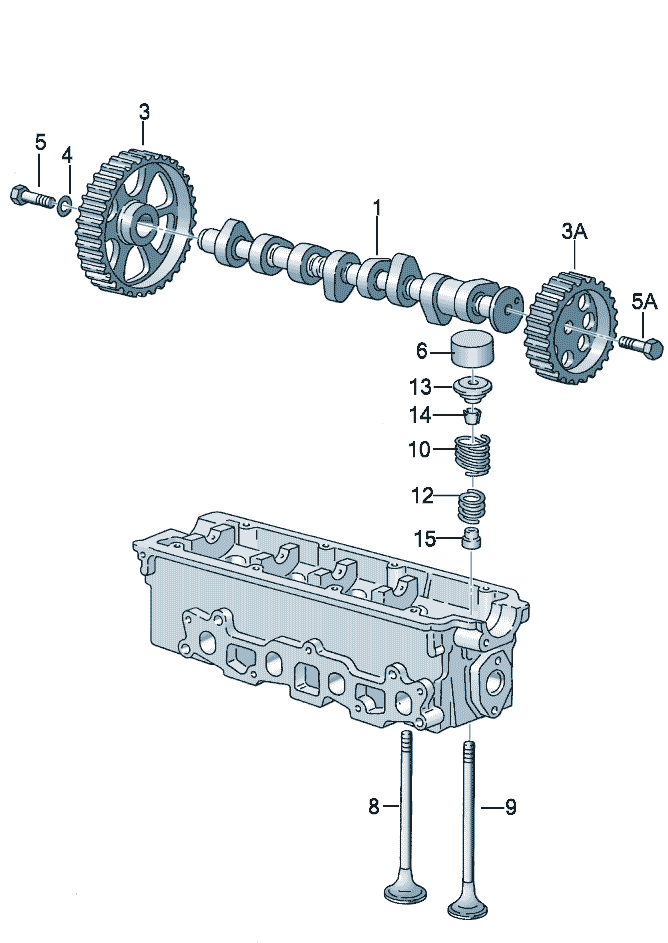

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	camshaft, valves 1.4/1.6 ltr. AEX,AEE 1.4/1.6 ltr. AEEAEX	—
(1)	Camshaft AEE AEE	032 109 101 S
(10)	Valve spring AEE AEE	032 109 623 E
1	Camshaft AEX AEX	030 109 101 AM
10	Valve spring AEX AEX	030 109 623 B
13	spring disc	021 109 641 C
14	cotter, split	021 109 651
15	Valve stem seal 7 MM 7 MM	027 109 675
3	toothed belt pulley	030 109 111 B
5	Hexagon bolt M 10 X 1,25 X 30 M 10 X 1,25 X 30	N 902 562 01
6	Tappets	050 109 309 A
6	Tappets	050 109 309 J
6	Tappets	050 109 309 H
8	Inlet valve 94,8 94,8	030 109 601 AH
8	Inlet valve 94,8 94,8	032 109 601 E
9	exhaust valve 95 95	032 109 611 G
