Camshaft valves — Mk3 Golf Engine (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Repair kit for toothed belt with tensioning roller

Generation: Mk3 1997 (RDW) Group: Engine Rebuild step 1 Parts: 22 Primary OEM: 021 109 111 H, 021 905 163, 071 109 227

Camshaft valves for the Volkswagen Golf Mk3 (1997): factory exploded diagram 109025 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 21 OEM part numbers across 22 catalogued positions including 021 109 111 H, 021 905 163 and 071 109 227. Parts on this plate carry the engine code AAA. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 21 OEM part numbers across 22 numbered positions.

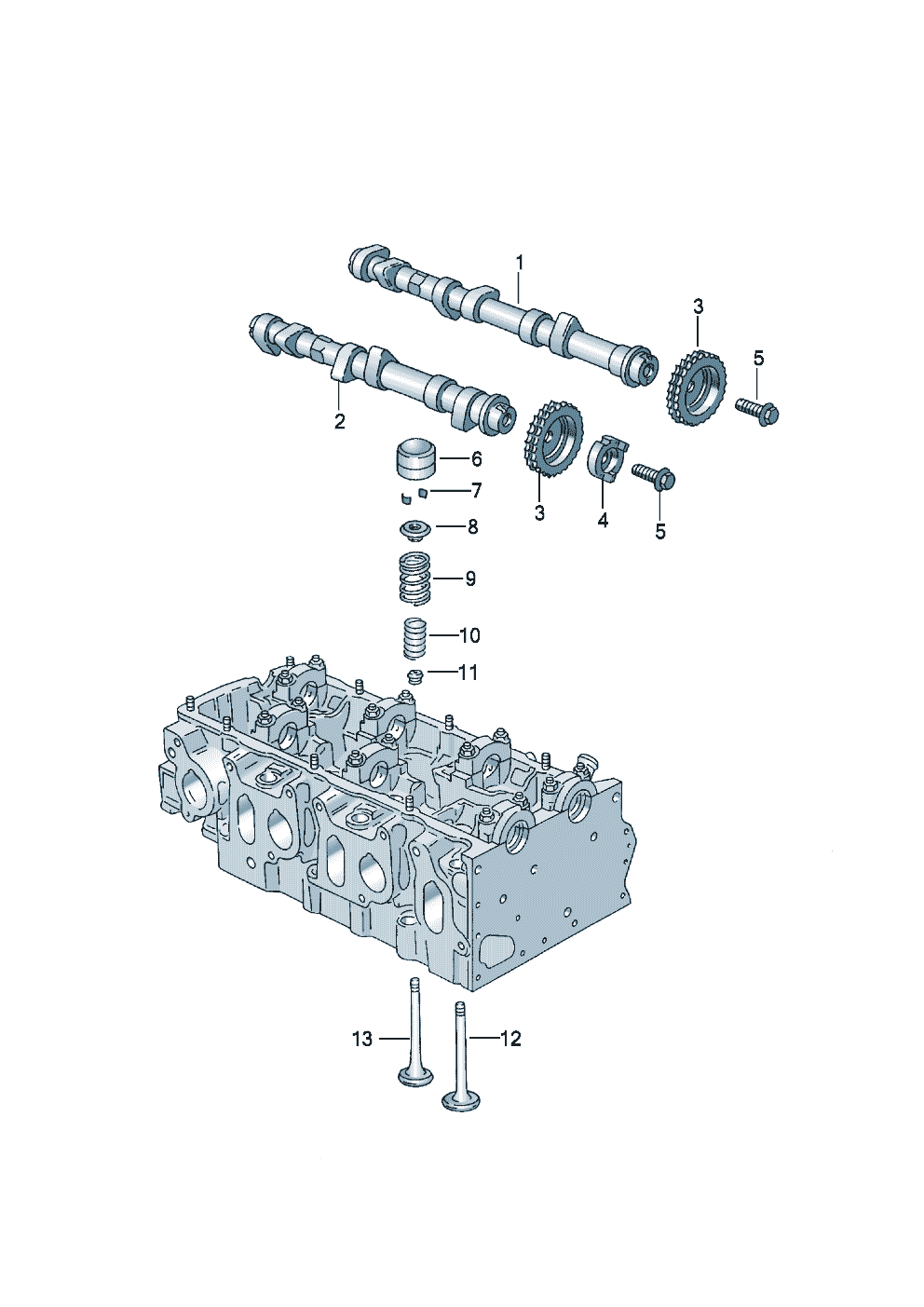

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	camshaft, valves 2.8 Ltr. AAA 2.8 Ltr. AAA	—
(3)	Chain sprocket M AAA 217 001>> Z=27 Z=27	021 109 111 H
(4)	Position sensor wheel forcamshaft M >> AAA 260 000*	021 905 163
(4)	Position sensor wheel forcamshaft M AAA 260 001>>*	071 109 227
1	Camshaft	021 109 101 N
10	Valve spring also use: 021 109 623 P 021 109 623 P	021 109 633 B
10	Valve spring	021 109 633
11	Valve stem seal	027 109 675
12	Inlet valve 105,95 MM 105,95 MM	021 109 601 K
12	Inlet valve 105,95 105,95	021 109 601 L
12	Inlet valve F >> 1 H-VW 090 000F >> 1 H-VB 030 000F >> 1 H-VP 060 000F >> 1 H-VD 020 000 105,95 MM 105,95 MM	021 109 601 J
13	exhaust valve 106,95 106,95	021 109 611 G
13	exhaust valve 106,95 MM 106,95 MM	021 109 611 F
2	Camshaft	021 109 102 B
3	Chain sprocket M >> AAA 217 000 Z=2 X 27 Z=2 X 27	021 109 111 G
5	Hexagon bolt M 12 X 1,50 X 40 M 12 X 1,50 X 40	N 102 038 03
5	Hexagon bolt M 12 X 1,5 X 40 M 12 X 1,5 X 40	N 102 038 01
6	Tappets	034 109 309 AD
7	cotter, split	021 109 651
8	spring disc	021 109 641 C
9	Valve spring	021 109 623 L
9	Valve spring also use: 021 109 633 B 021 109 633 B	021 109 623 P
