Camshaft valves — Mk3 Golf Engine (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Repair kit for toothed belt with tensioning roller

Generation: Mk3 1997 (RDW) Group: Engine Rebuild step 1 Parts: 20 Primary OEM: 051 109 021, 051 109 022, 051 109 021 B

Camshaft valves for the Volkswagen Golf Mk3 (1997): factory exploded diagram 109015 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 18 OEM part numbers across 20 catalogued positions including 051 109 021, 051 109 022 and 051 109 021 B. Parts on this plate carry the engine code ABF. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 18 OEM part numbers across 20 numbered positions.

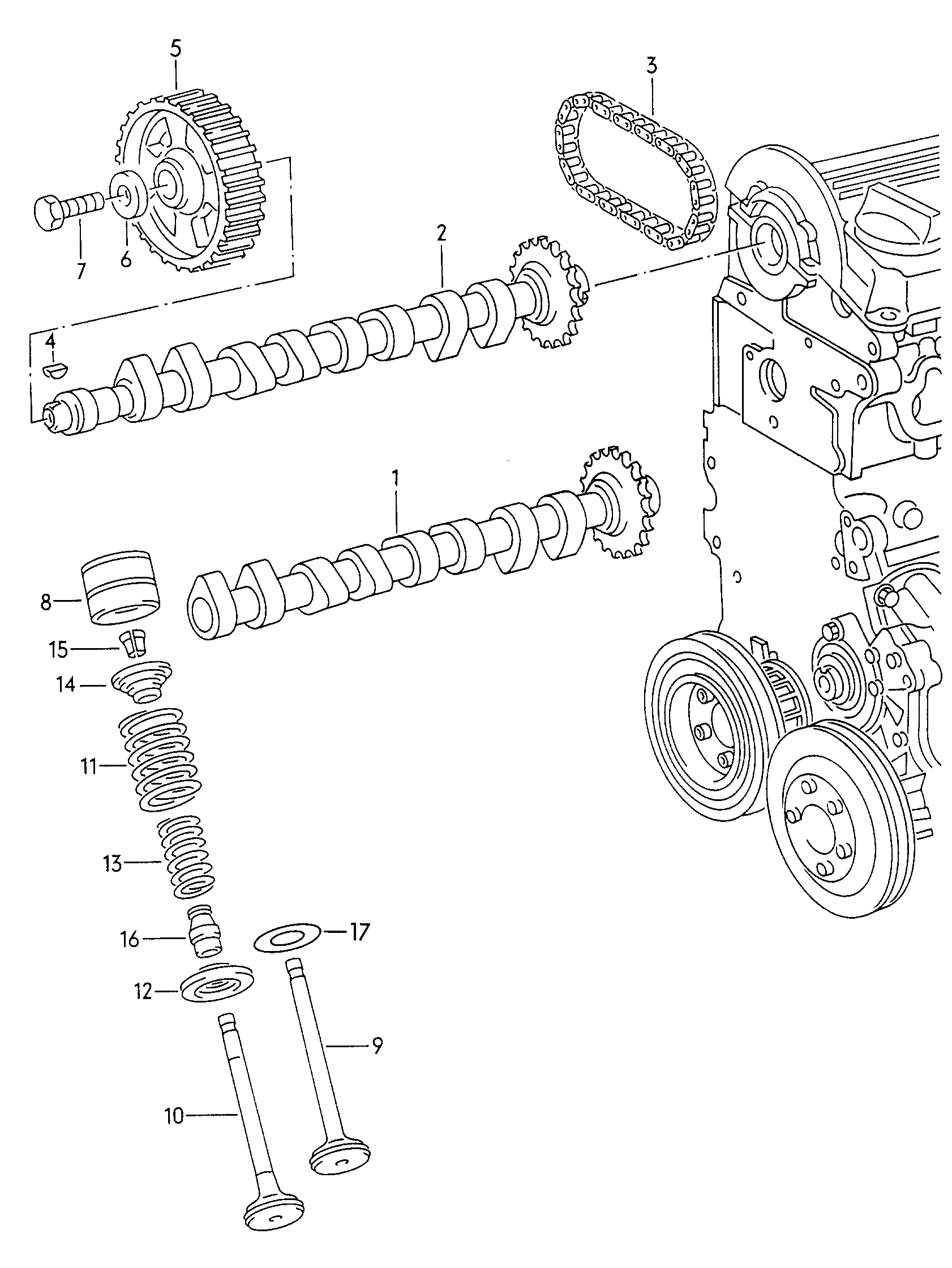

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	camshaft, valves 16 V	—
	camshaft, valves 2.0 Ltr. ABF 2.0 Ltr. ABF	—
(1)	Camshaft	051 109 021
(2)	Camshaft	051 109 022
1	Camshaft	051 109 021 B
10	exhaust valve 97,95 97,95	051 109 611 B
11	Valve spring	078 109 623 A
12	spring disc	056 109 629 A
13	Valve spring	078 109 633 A
14	spring disc	021 109 641 C
15	cotter, split	021 109 651
16	Valve stem seal 7 MM 7 MM	027 109 675
2	Camshaft	051 109 022 B
3	timing chain	077 109 120
4	woodruff key 4 X 5 4 X 5	N 012 708 2
5	toothed belt pulley	027 109 111 H
6	Washer	027 109 143
7	Hexagon bolt M 10 X 1,25 X 30 M 10 X 1,25 X 30	N 902 562 01
8	Tappets	034 109 309 AD
9	Inlet valve 95,5 95,5	051 109 601 B

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: ABF
Variant tags: petrol_8v_gti_or_gl
Factory group: 01 Engine
Factory subgroup: 109015
