Crankshaftconrodbearings 1 6 2 0 litres — Mk3 Golf Engine (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Conrod. bearings. Crankshaft

Generation: Mk3 1997 (RDW) Group: Engine Rebuild step 1 Parts: 115 Primary OEM: 034 105 713 0 07, 034 105 719 0 07, 034 105 701 0 07

Crankshaftconrodbearings 1 6 2 0 litres for the Volkswagen Golf Mk3 (1997): factory exploded diagram 105015 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 113 OEM part numbers across 115 catalogued positions including 034 105 713 0 07, 034 105 719 0 07 and 034 105 701 0 07. Parts on this plate carry the engine codes 1Y, 1Z, AAM, AAZ, ABF, ACC, ADZ and AEK. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 113 OEM part numbers across 115 numbered positions.

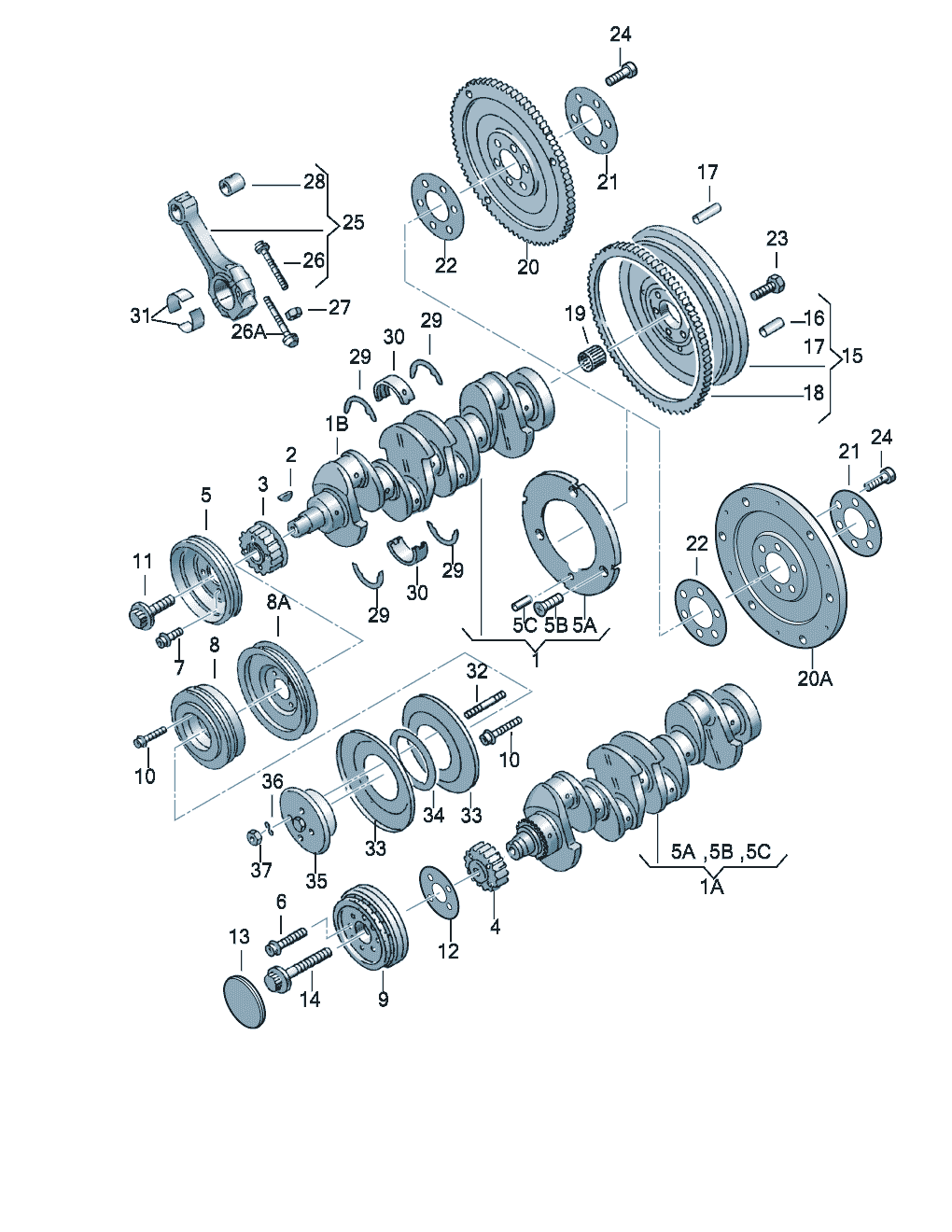

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	yellow	034 105 713 0 07
	yellow	034 105 719 0 07
	Crankshaftconrodbearings 1.6-2.0 litres 1.9 ltr. AAM,ADZ,ABF,AFT,AKS,AEP,AGG,AKR,ACCDiesel eng.+1 Y,AEY,AAZ,1 Z,AHU,ALE,AFN 1.6-2.0 litres 1.9 ltr. 1ZAAMAAZABFADZAEPAEYAFNAFTAGGAHUAKRAKSALE	—
	yellow	034 105 701 0 07
	yellow	034 105 707 0 07
-	crankshaft bearing shell	056 105 567 B
-	crankshaft bearing shell	056 105 579 B
-	crankshaft bearing shell	056 105 573 B
-	thrust washer only for: 028 105 243 K AEY,1 Z,AHU,ALE,AFN 028 105 243 K 1ZAEYAFNAHUALE	028 105 246
-	thrust washer only for: 028 105 243 K 1 Y,AEY,AAZ,1 Z,AHU,ALE,AFN 028 105 243 K 1Y1ZAAZAEYAFNAHUALE	028 105 246
-	v-belt pulleyfor power steering AAZ,1 Y,AEY,1 Z,AHU,ALE,AFN 1Y1ZAAZAEYAFNAHUALE	028 105 253 A
-	thrust washer only for: 028 105 243 T 1 Y,AEY,AAZ,1 Z,AHU,ALE,AFN 028 105 243 T 1Y1ZAAZAEYAFNAHUALE	028 105 246 A
(1)	Crankshaft AEY,1 Z,AHU,ALE,AFN,1 Y,AAZ 1Y1ZAAZAEYAFNAHUALE	028 105 101 L
(1)	Crankshaft also use: 050 105 189 B 053 105 229 A AFT,AKS 050 105 189 B 053 105 229 A AFTAKS	050 105 101 B
(1)	Crankshaft also use: 050 105 189 A 053 105 229 A AFT,AKS 050 105 189 A 053 105 229 A AFTAKS	050 105 101 B
(1)	Crankshaft use if required: 048 105 189 B 053 105 229 AGG,AKR,AEP 048 105 189 B 053 105 229 AEPAGGAKR	053 105 101 K
(1)	Crankshaft use if required: 048 105 189 B 053 105 229 ABF 048 105 189 B 053 105 229 ABF	053 105 101 H
(1)	Crankshaft AFT AFT	026 105 101 AA
(11)	12-point head bolt M 14 X 1,5 X 39 ABF M 14 X 1,5 X 39 ABF	N 903 670 01
(15)	flywheel 210 MM AAM,AEP,ADZ,AAZ,ACC,AGG,AKR 210 MM AAMAAZACCADZAEPAGGAKR	027 105 271 NX
(15)	flywheel 200 MM 1 Y,AEY,AFT,AKS 200 MM 1YAEYAFTAKS	067 105 271 T
(15)	flywheel with clutch 220 MM AFN 220 MM AFN	028 105 264 K
(15)	flywheel with clutch 225 MM AFN 225 MM AFN	038 105 264 E
(15)	flywheel 228 MM ABF,1 Z,AHU,ALE 228 MM 1ZABFAHUALE	028 105 269 B
(15)	flywheel with clutch 225 MM AFN 225 MM AFN	038 105 264 J
(15)	flywheel 228 MM ABF,1 Z,AHU,ALE 228 MM 1ZABFAHUALE	028 105 269 BX
(15)	flywheel with clutch 220 MM AFN 220 MM AFN	028 105 264 E
(15)	flywheel 200 MM 1 Y,AEY,AFT,AKS 200 MM 1YAEYAFTAKS	067 105 271 TX
(15)	flywheel 210 MM AAM,AEP,ADZ,AAZ,ACC,AGG,AKR 210 MM AAMAAZACCADZAEPAGGAKR	027 105 271 P
(20)	Clutch plate automatic	068 105 323 D
(23)	12-point head bolt M 7 X 40 X 20 AEP,ADZ,AAM,AFT,AKS,AGG,AKR,ACC M 7 X 40 X 20 AAMACCADZAEPAFTAGGAKRAKS	N 100 134 01
(23)	Socket head bolt with innermultipoint head M 10 X 1 X 22,30 Manualgearbox+AFN M 10 X 1 X 22,30	N 906 650 01
(23)	12-point head bolt M 10 X 1 X 17 automatic M 10 X 1 X 17	N 904 656 01
(25)	1 set: connecting rods AEY,1 Z,AHU,ALE,AFN 1ZAEYAFNAHUALE	028 198 401 F
(25)	1 set: connecting rods AFT,AKS AFTAKS	058 198 401
(25)	1 set: connecting rods ABF,AEP,AGG,AKR ABFAEPAGGAKR	037 198 401 C
(25)	1 set: connecting rods AAZ AAZ	028 198 401 C
(26)	Big end bolt, press-fitted(rotation-angle controlled) AAM,ADZ,ABF,ABF,AFT,AKS,AEP,ACC,AGG,AKR AAMABFACCADZAEPAFTAGGAKRAKS	048 105 425
(27)	Hexagon nut AAM,AEP,ADZ,ABF,AFT,AKS,AGG,AKR,ACC AAMABFACCADZAEPAFTAGGAKRAKS	048 105 427
(28)	bush - connecting rod AEY,AAZ,1 Z,AHU,ALE,AFN 1ZAAZAEYAFNAHUALE	028 105 431 C
(28)	bush - connecting rod ABF,AEP,AGG,AKR ABFAEPAGGAKR	048 105 431
(28)	bush - connecting rod 1 Y 1Y	028 105 431 D
(3)	toothed belt pulley ABF ABF	027 105 263 B
(30)	1 set: crankshaft bearings 1 Y,AAZ 1YAAZ	068 198 497
(30)	1 set: crankshaft bearings also use: 056 105 567 B AAM,AEP,ADZ,AFT,AKS,AGG,AKR,ACC 056 105 567 B AAMACCADZAEPAFTAGGAKRAKS	068 198 493
(30)	1 set: crankshaft bearings also use: 056 105 573 B AAM,AEP,ADZ,AFT,AKS,AGG,AKR,ACC 056 105 573 B AAMACCADZAEPAFTAGGAKRAKS	068 198 495
(30)	1 set: crankshaft bearings AAM,AEP,ADZ,ABF,AFT,AKS,AGG,AKR,ACC AAMABFACCADZAEPAFTAGGAKRAKS	026 198 491 A
(30)	1 set: crankshaft bearings 1 Y,AAZ 1YAAZ	068 198 493
(30)	1 set: crankshaft bearings 1 Y,AAZ 1YAAZ	068 198 495
(30)	1 set: crankshaft bearings also use: 056 105 579 B AAM,ADZ,AEP,AFT,AKS,AGG,AKR,ACC 056 105 579 B AAMACCADZAEPAFTAGGAKRAKS	068 198 497
(31)	connecting rod bearing shell AAZ,1 Z,AHU,ALE 1ZAAZAHUALE	028 105 707
(31)	connecting rod bearing shell AFN AFN	028 105 719
(31)	connecting rod bearing shell 1 Y 1Y	033 105 701
(31)	connecting rod bearing shell AAZ,1 Z,AHU,ALE 1ZAAZAHUALE	028 105 713
(31)	connecting rod bearing shell AEY,AAZ,1 Z,AHU,ALE 1ZAAZAEYAHUALE	028 105 701 J
(31)	connecting rod bearing shell AFN AFN	028 105 713 A
(31)	connecting rod bearing shell 1 Y 1Y	033 105 713
(31)	connecting rod bearing shell AAM,ADZ,AEP,AEK,AFT,AKS,AGG,AKR,ACC AAMACCADZAEKAEPAFTAGGAKRAKS	034 105 707
(31)	connecting rod bearing shell 1 Y 1Y	033 105 707
(31)	connecting rod bearing shell AFN AFN	028 105 707 A
(31)	connecting rod bearing shell AFN AFN	028 105 701 H
(31)	connecting rod bearing shell AFN AFN	028 105 707
(31)	connecting rod bearing shell 1 Y 1Y	033 105 719
(31)	connecting rod bearing shell AFN AFN	028 105 701 J
(31)	connecting rod bearing shell AAM,ADZ,AEP,AEK,AFT,AKS,AGG,AKR,ACC AAMACCADZAEKAEPAFTAGGAKRAKS	034 105 719
(31)	connecting rod bearing shell AAZ,1 Z,AHU,ALE 1ZAAZAHUALE	028 105 719
(31)	connecting rod bearing shell AFN AFN	028 105 719 A
(31)	connecting rod bearing shell AAM,ADZ,AEP,AEK,AFT,AKS,AGG,AKR,ACC AAMACCADZAEKAEPAFTAGGAKRAKS	034 105 713
(31)	connecting rod bearing shell AFN AFN	028 105 713
(4)	toothed belt pulley AEY,1 Z,AHU,AFN 1ZAEYAFNAHU	028 105 263 A
(4)	toothed belt pulley AEY,1 Z,AHU,ALE,AFN 1ZAEYAFNAHUALE	028 105 263 D
(5)	v-belt pulleyfor power steering AAM,ADZ,ACC,AFT,AKS AAMACCADZAFTAKS	037 105 253 D
(5A)	impulse rotor AFT,AKS AFTAKS	050 105 189 A
(5A)	impulse rotor AGG,AKR,AEP AEPAGGAKR	050 105 189 B
(5A)	impulse rotor AGG,AKR,AEP AEPAGGAKR	050 105 189 A
(5A)	impulse rotor AFT AFT	050 105 189
(5A)	impulse rotor AFT,AKS AFTAKS	050 105 189 B
(5B)	countersunk bolt M 6 X 16 AGG,AKR,AEP M 6 X 16 AEPAGGAKR	053 105 229 A
(5B)	countersunk bolt M 6 X 16 AFT,AKS M 6 X 16 AFTAKS	053 105 229 A
(8)	vibration damper ABF ABF	037 105 243 B
(9)	vibration damper AEY,1 Z,AHU,AFN 1ZAEYAFNAHU	028 105 243 K
(9)	vibration damper AAZ,1 Y 1YAAZ	028 105 243 R
(9)	vibration damper 1 Y,AEY,AAZ,1 Z,AHU,ALE,AFN 1Y1ZAAZAEYAFNAHUALE	028 105 243 T
1	Crankshaft AAM,ADZ,ACC AAMACCADZ	026 105 101 E
10	Socket head bolt M 8 X 45 ABF,AEP,AGG,AKR,1 Y,AEY,AAZ,1 Z,AHU,ALE,AFN M 8 X 45 1Y1ZAAZABFAEPAEYAFNAGGAHUAKRALE	N 903 487 04
10	Socket head bolt AM 8 X 45 ABF,AEP,AGG,AKR,1 Y,AEY,AAZ,1 Z,AHU,ALE,AFN AM 8 X 45 1Y1ZAAZABFAEPAEYAFNAGGAHUAKRALE	N 903 487 01
11	12-point head bolt M 14 X 1,5 X 33 AAM,ACC,ADZ,AEP,AGG,AKR,AFT,AKS M 14 X 1,5 X 33 AAMACCADZAEPAFTAGGAKRAKS	N 903 208 02
14	12-point head bolt M 14 X 1,5 X 47 1 Y,AEY,AAZ,1 Z,AHU,ALE,AFN M 14 X 1,5 X 47 1Y1ZAAZAEYAFNAHUALE	N 905 771 01
16	Cylinder pin 6 X 30 ABF,1 Z,AHU,ALE 6 X 30 1ZABFAHUALE	N 101 058 01
19	needle bearing - 15 X 21 X 15 15 X 21 X 15	056 105 313 C
2	woodruff key 4 X 5 4 X 5	N 012 708 2
21	Washer 0,5 automatic 0,5	051 105 301
22	compensation washer 1,2 MM automatic 1,2 MM	056 105 303
23	Hexagon bolt M 10 X 1 X 19,5 manualgearbox M 10 X 1 X 19,5	N 902 061 03
24	Fasteners Converter see illustration: 323-050 323-050	—
25	1 set: connecting rods 1 Y 1Y	028 198 401 E
25	1 set: connecting rods AAM,ADZ,ACC AAMACCADZ	027 198 401 B
26A	bolt - connecting rod M 8 X 1 X 45 1 Y,AEY,AAZ,1 Z,AHU,ALE,AFN M 8 X 1 X 45 1Y1ZAAZAEYAFNAHUALE	028 105 425 C
28	bush - connecting rod AAM,ADZ,AEK,AFT,AKS,ACC AAMACCADZAEKAFTAKS	053 105 431 B
29	1 set of thrust washers	026 198 421
3	toothed belt pulley AAM,AEP,ADZ,AFT,AKS,AGG,AKR,ACC AAMACCADZAEPAFTAGGAKRAKS	049 105 263 C
30	1 set: crankshaft bearings 1 Y,AEY,AAZ,1 Z,AHU,ALE,AFN,AFT,AKS,AGG,AKR 1Y1ZAAZAEYAFNAFTAGGAHUAKRAKSALE	026 198 491
30	1 set: crankshaft bearings AAM,ADZ,ABF,AEP,ACC AAMABFACCADZAEP	026 198 491
31	connecting rod bearing shell AAM,AEP,ADZ,ABF,AFT,AKS,AGG,AKR,ACC AAMABFACCADZAEPAFTAGGAKRAKS	034 105 701
4	toothed belt pulley 1 Y,AAZ 1YAAZ	028 105 263
4	toothed belt pulley 1 Y,AAZ 1YAAZ	028 105 263 E
5	Poly V-belt pulley AAM,ADZ,ACC,AFT,AKS AAMACCADZAFTAKS	037 105 255 A
5A	Speed sensor ring AEY,1 Z,AHU,ALE,AFN 1ZAEYAFNAHUALE	028 105 189 B
5A	Speed sensor ring ABF,AGG,AKR,AEP ABFAEPAGGAKR	048 105 189 B
5B	countersunk bolt M 6 X 16 ABF,AEP,AGG,AKR,AEY,1 Z,AHU,ALE,AFN M 6 X 16 1ZABFAEPAEYAFNAGGAHUAKRALE	053 105 229
5C	Cylinder pin 6 X 12 ABF,AEY,1 Z,AHU,ALE,AFN 6 X 12 1ZABFAEYAFNAHUALE	N 013 199 1
7	Socket head bolt withinner multipoint head M 8 X 14 AAM,ADZ,ACC,AFT,AKS M 8 X 14 AAMACCADZAFTAKS	N 903 086 05
7	Socket head bolt withinner multipoint head M 8 X 14 AAM,ADZ,ACC,AFT,AKS M 8 X 14 AAMACCADZAFTAKS	N 903 086 03
8	vibration damper AGG,AKR,AEP AEPAGGAKR	037 105 243 A
8A	v-belt pulley ABF,AGG,AKR,AEP ABFAEPAGGAKR	037 105 253

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: 1Y, 1Z, AAM, AAZ, ABF, ACC, ADZ, AEK
Variant tags: diesel, petrol_8v_gti_or_gl
Factory group: 01 Engine
Factory subgroup: 105015
