Crankshaftconrodbearings — Mk3 Golf Engine (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Conrod. bearings. Crankshaft

Generation: Mk3 1997 (RDW) Group: Engine Rebuild step 1 Parts: 39 Primary OEM: 036 105 101 H, 036 105 101 C, 032 105 101 M

Crankshaftconrodbearings for the Volkswagen Golf Mk3 (1997): factory exploded diagram 105005 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 38 OEM part numbers across 39 catalogued positions including 036 105 101 H, 036 105 101 C and 032 105 101 M. Parts on this plate carry the engine codes AEE and AEX. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 38 OEM part numbers across 39 numbered positions.

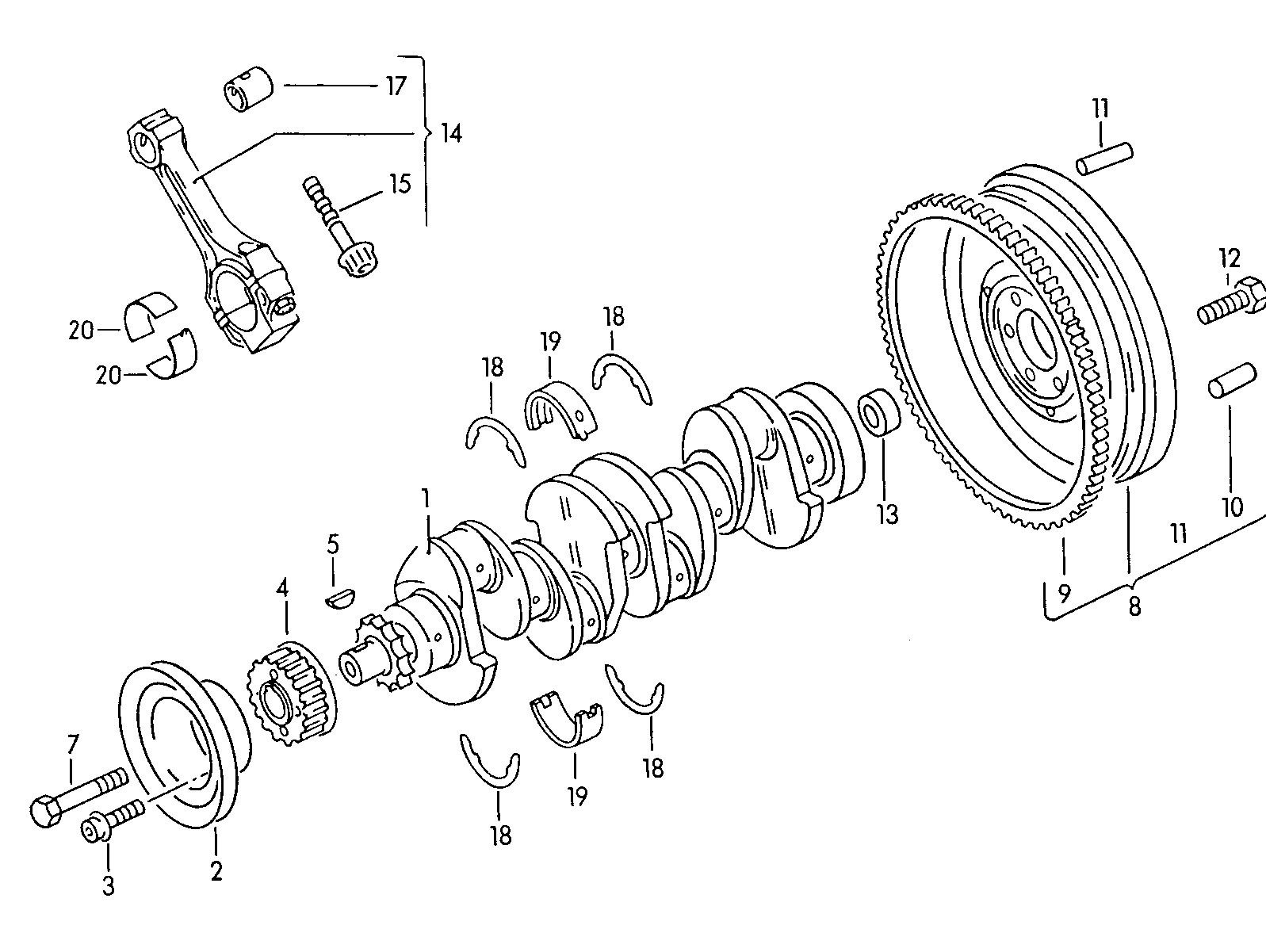

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Crankshaftconrodbearings 1.4/1.6 ltr. AEX,AEE 1.4/1.6 ltr. AEEAEX	—
(1)	Crankshaft F 1 H-WB 050 001>>F 1 H-WD 119 001>>F 1 H-WP 090 001>>*F 1 H-WW 157 906>> Manualgearbox+AEX	036 105 101 H
(1)	Crankshaft F 1 H-WB 050 001>>F 1 H-WD 119 001>>F 1 H-WP 090 001>>*F 1 H-WW 157 906>> AEE AEE	036 105 101 C
(1)	Crankshaft F 1 H-WB 050 001>>F 1 H-WD 119 001>>F 1 H-WP 090 001>>*F 1 H-WW 157 906>> AEE AEE	032 105 101 M
(1)	Crankshaft F >> 1 H-WB 050 000F >> 1 H-WD 119 000F >> 1 H-WP 090 000*F >> 1 H-WW 157 905 AEE AEE	032 105 021 E
(15)	bolt - connecting rod M 7 X 0,75 X 41 M 7 X 0,75 X 41	030 105 425 E
(15)	bolt - connecting rod only to be used for: M 8 X 1 X 44032 105 401 T M 8 X 1 X 44032 105 401 T	045 105 425
(17)	bush - connecting rod M AEE 617 126>>	030 105 431 P
(19)	crankshaft bearing shell	056 105 567 B
(19)	crankshaft bearing shell	056 105 579 B
(19)	crankshaft bearing shell	056 105 573 B
(20)	connecting rod bearing shell AEX AEX	032 105 719
(20)	connecting rod bearing shell AEX AEX	032 105 707 D
(20)	connecting rod bearing shell	032 105 713
(20)	connecting rod bearing shell AEX AEX	032 105 707 F
(20)	connecting rod bearing shell M >> AEE 617 125 AEX AEX	032 105 701 D
(20)	connecting rod bearing shell AEX AEX	032 105 707
(20)	connecting rod bearing shell AEX AEX	032 105 719 F
(4)	toothed belt pulley F 1 H-WB 050 001>>F 1 H-WD 119 001>>F 1 H-WP 090 001>>*F 1 H-WW 157 906>>	032 105 263 C
1	Crankshaft F >> 1 H-WB 050 000F >> 1 H-WD 119 000F >> 1 H-WP 090 000*F >> 1 H-WW 157 905 Manualgearbox+AEX	030 105 021 AT
10	Cylinder pin 6 X 16 6 X 16	N 013 210 2
11	Cylinder pin 4 X 28 4 X 28	N 013 205 2
12	Hexagon bolt M 10 X 1 X 19,5 M 10 X 1 X 19,5	N 902 061 03
14	1 set: connecting rods	032 198 401
14	1 set: connecting rods also use: 032 105 701 H 032 105 701 H	036 198 401
15	bolt - connecting rod only to be used for: M 8 X 1 X 41032 105 401 D M 8 X 1 X 41032 105 401 D	030 105 425
17	bush - connecting rod M >> AEE 617 125 AEX AEX	030 105 431
18	1 set of thrust washers	026 198 421
19	1 set: crankshaft bearings	026 198 491 A
19	1 set: crankshaft bearings	026 198 491
2	Poly V-belt pulley	030 105 255 D
20	connecting rod bearing shell	032 105 701 H
20	connecting rod bearing shell	032 105 701
3	Socket head bolt withinner multipoint head M 8 X 14 M 8 X 14	N 903 086 03
3	Socket head bolt withinner multipoint head M 8 X 14 M 8 X 14	N 903 086 05
4	toothed belt pulley F >> 1 H-WB 050 000F >> 1 H-WD 119 000F >> 1 H-WP 090 000*F >> 1 H-WW 157 905	030 105 263 C
7	Hexagon bolt M 14 X 1,5 X 47 M 14 X 1,5 X 47	N 902 928 02
8	flywheel 200 MM 200 MM	067 105 271 TX
8	flywheel 200 MM 200 MM	067 105 271 T
