Crankshaftconrodbearings — Mk3 Golf Engine (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Conrod. bearings. Crankshaft

Generation: Mk3 1997 (RDW) Group: Engine Rebuild step 1 Parts: 34 Primary OEM: 021 105 707 B G LB, 021 105 701 B G LB, D 000 600 A2

Crankshaftconrodbearings for the Volkswagen Golf Mk3 (1997): factory exploded diagram 105025 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 33 OEM part numbers across 34 catalogued positions including 021 105 707 B G LB, 021 105 701 B G LB and D 000 600 A2. Parts on this plate carry the engine code AAA. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 33 OEM part numbers across 34 numbered positions.

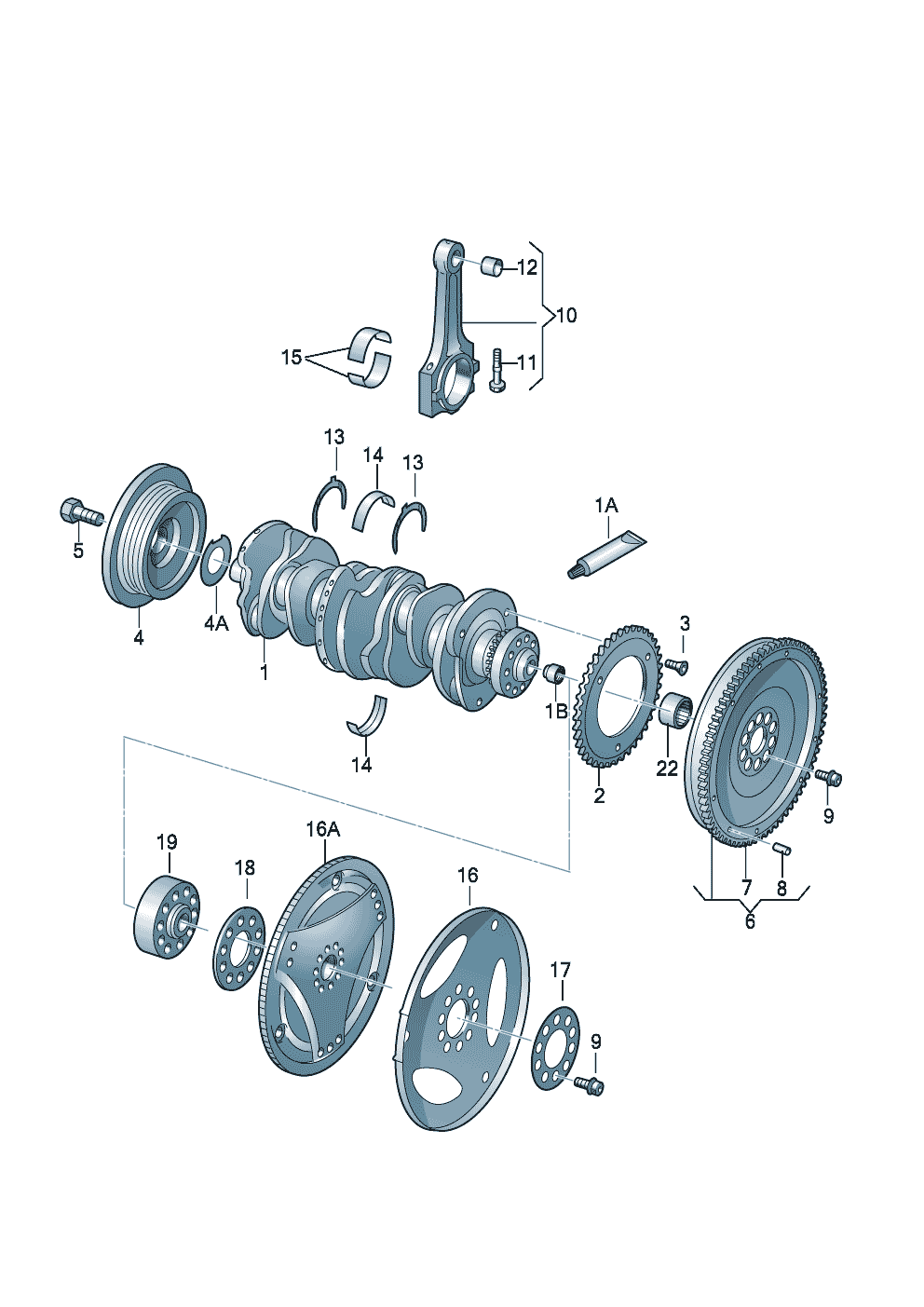

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	yellow	021 105 707 B G LB
	Crankshaftconrodbearings 2.8 Ltr. AAA 2.8 Ltr. AAA	—
	yellow	021 105 701 B G LB
-	Locking fluid	D 000 600 A2
(1)	Crankshaft	021 105 101 B
(13)	thrust washer	021 105 635 B
(13)	thrust washer	022 105 635
(14)	1 set: crankshaft bearings	021 198 493
(15)	connecting rod bearing shell	021 105 707 B
(18)	compensation washer 1,6 MM automatic 1,6 MM	021 105 303 C
(18)	compensation washer 1,2 MM automatic 1,2 MM	021 105 303 B
(18)	compensation washer 0,8 automatic 0,8	021 105 303 A
(18)	compensation washer 2 MM automatic 2 MM	021 105 303 D
(18)	compensation washer 2,4 MM automatic 2,4 MM	021 105 303 E
(2)	impulse rotor M AAA 223 457>>	071 105 189 A
(4)	vibration damper	021 105 243 D
(6)	flywheel	021 105 269 BX
1	Crankshaft also use: >>AAA 223456071 105 189 A >>AAA 223456071 105 189 A	021 105 101 L
10	1 set: connecting rods	021 198 401 B
10	1 set: connecting rods	022 198 401
11	bolt - connecting rod	021 105 425 B
12	bush - connecting rod	021 105 431 C
13	1 set of thrust washers	021 198 421
14	1 set: crankshaft bearings	021 198 491 A
15	connecting rod bearing shell	021 105 701 B
16	Clutch plate automatic	021 105 327
17	Washer 0,5 MM automatic 0,5 MM	021 105 301
18	compensation washer 0,4 automatic 0,4	021 105 303
2	impulse rotor M >> AAA 223 456	021 105 189 C
3	countersunk bolt	021 105 229
5	Hexagon bolt M 18 X 1,5 X 40 M 18 X 1,5 X 40	N 010 087 3
6	flywheel	021 105 269 B
8	Cylinder pin 6 X 30 6 X 30	N 101 058 01
9	Socket head bolt M 10 X 1 X 19 X 11 M 10 X 1 X 19 X 11	N 905 398 01

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: AAA
Factory group: 01 Engine
Factory subgroup: 105025
