Cylinder block pistonsoil sump 1 6 2 0 litres — Mk3 Golf Engine (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Cylinder block with pistons. oil sump

Generation: Mk3 1997 (RDW) Group: Engine Rebuild step 1 Parts: 74 Primary OEM: 867 971 928, N 012 226 5, 037 198 667 A

Cylinder block pistonsoil sump 1 6 2 0 litres for the Volkswagen Golf Mk3 (1997): factory exploded diagram 103010 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 71 OEM part numbers across 74 catalogued positions including 867 971 928, N 012 226 5 and 037 198 667 A. Parts on this plate carry the engine codes AAM, ABF, ABS, ACC, ADZ, AEP, AFT and AGG. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 71 OEM part numbers across 74 numbered positions.

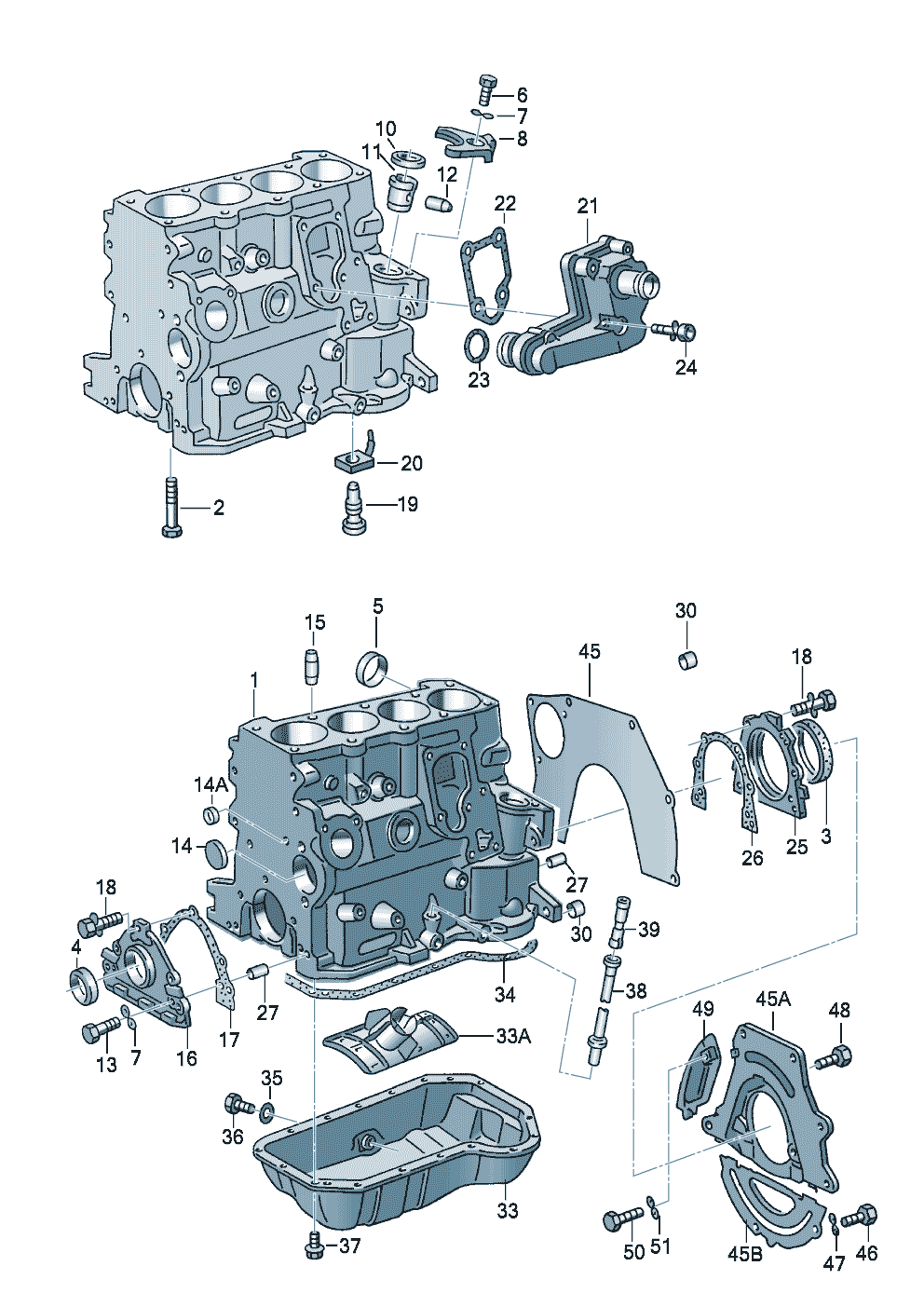

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	cylinder block with pistonsoil sump 1.6-2.0 litres ABF,AFT,AKS,AAM,ADZ,AEP,AGG,AKR,ACC 1.6-2.0 litres AAMABFACCADZAEPAFTAGGAKRAKS	—
-	Bungs 38 automatic 38	867 971 928
-	Spring washer 6 6	N 012 226 5
-	repair setcover for oil sump ABF ABF	037 198 667 A
-	cover for oil sump ABF ABF	037 103 660 A
-	Spreader rivet ABF ABF	028 103 952 A
(1)	cylinder block with pistons AFT AFT	050 103 101 D
(1)	cylinder block with pistons ADZ ADZ	051 103 101 B
(1)	cylinder block with pistons AAM,ACC AAMACC	051 103 101 A
(1)	cylinder block with pistons AGG,AKR AGGAKR	037 103 101 AA
(1)	cylinder block with pistons AFT,AKS AFTAKS	050 103 101 E
(1)	cylinder block with pistons AEP AEP	037 103 101 AB
(11)	End cap ABF ABF	051 103 703 C
(12)	cup rivet 4,8 X 14 4,8 X 14	N 016 201 1
(21)	breather assy. AAM,ADZ,AFT,AKS,AGG,AKR,ACC AAMACCADZAFTAGGAKRAKS	048 103 772 C
(33)	oil sump ABF ABF	048 103 599 C
(35)	seal ring 26 X 31 ABF 26 X 31 ABF	N 043 854 1
(36)	oil drain plug M 26 X 1,5 ABF M 26 X 1,5 ABF	059 103 193
(37)	Socket head bolt with hexagonsocket head (combination) M 6 X 25 ABF M 6 X 25 ABF	N 100 801 02
(45B)	Cover plate ADZ,AFT,AKS,AEP,AGG,AKR,ACC ACCADZAEPAFTAGGAKRAKS	068 103 648 K
(49)	cover plate AAM,AEP,ADZ,AFT,AKS,AGG,AKR,ACC AAMACCADZAEPAFTAGGAKRAKS	038 103 645 A
1	cylinder block with pistons ABF ABF	037 103 101 F
11	bush AAM,ADZ,AEP,AFT,AKS,AGG,AKR,ACC AAMACCADZAEPAFTAGGAKRAKS	056 103 541
12	Bungs 6,4 MM 6,4 MM	056 103 117
13	Hexagon bolt M 8 X 20 M 8 X 20	N 010 240 16
14	End cap 36,6 36,6	059 103 113
14	End cap 36,6 36,6	036 103 113 A
14A	End cap A 14 A 14	N 011 907 7
14A	End cap 14 14	N 011 907 4
15	Cylinder pin 6 M 6 X 20 6 M 6 X 20	026 103 139
16	Sealing flange	051 103 152
17	Seal	026 103 161 B
18	Hexagon bolt also use: M 6 X 18 N 012 226 5 M 6 X 18 N 012 226 5	N 010 216 12
19	Pressure-relief valve ABF,AEP ABFAEP	053 103 155 C
19	Pressure-relief valve ABF,AEP ABFAEP	053 103 155 E
2	Hexagon bolt M 10 X 65 M 10 X 65	N 102 638 01
20	oil spray jet ABF,AEP ABFAEP	053 103 157 A
21	breather assy. ABF ABF	048 103 772
22	Seal Included in position: 21 21	048 103 771
23	O-ring 34,2 X 3 34,2 X 3	N 904 673 01
24	Socket head bolt withhexagon socket head M 8 X 38 M 8 X 38	N 100 227 01
25	Sealing flange	068 103 171 F
25	Sealing flange	028 103 171 B
26	Seal	026 103 181 B
27	Cylinder pin 8 X 14 8 X 14	N 043 207 2
3	Discont. / replace: 028 103 171 B 028 103 171 B	—
30	dowel sleeve 16 X 13,5 16 X 13,5	012 301 153 B
30	dowel sleeve 16 X 13,5 16 X 13,5	014 301 153 B
30	dowel sleeve 16 X 13,5 16 X 13,5	022 103 139
33	Engine oil sump AAM,AEP,ADZ,AFT,AKS,AGG,AKR,ACC AAMACCADZAEPAFTAGGAKRAKS	051 103 601
33A	Surge lock	051 103 623
34	Seal	044 103 609 D
34	Seal	048 103 609 B
35	seal ring 14 X 20 AAM,AEP,ADZ,AFT,AKS,AGG,AKR,ACC 14 X 20 AAMACCADZAEPAFTAGGAKRAKS	N 013 849 2
36	oil drain plug M 14 X 1,5 X 16 AAM,AEP,ADZ,AFT,AKS,AGG,AKR,ACC M 14 X 1,5 X 16 AAMACCADZAEPAFTAGGAKRAKS	N 902 889 01
37	bolt, hex. hd. with shoulder,self-locking M 6 X 17 AAM,AEP,ADZ,AFT,AKS,AGG,AKR,ACC M 6 X 17 AAMACCADZAEPAFTAGGAKRAKS	N 904 234 02
38	tube for oil dipstick	049 103 634
39	guide funnel	053 103 663
4	Shaft oil seal 47 X 10 47 X 10	068 103 085 E
4	Shaft oil seal 47 X 10 47 X 10	026 103 085 F
45	Spacer plate automatic	068 105 551
45A	Cover plate manualgearbox	068 103 621 E
45B	Cover plate AAM,ABF AAMABF	068 103 648 H
45B	Cover plate AAM,ABF AAMABF	038 103 648 A
46	bolt, hexagon headself-locking M 7 X 12 M 7 X 12	N 010 227 6
47	Spring washer 7 7	N 012 234 5
48	Hexagon bolt M 6 X 8 M 6 X 8	N 904 832 01
49	cover plate AAM,AEP,ADZ,AFT,AGG,ACC AAMACCADZAEPAFTAGG	068 103 645 K
49	cover plate ABF,AAM,ABS AAMABFABS	068 103 645 M
5	End cap 36,6 36,6	059 103 113
5	End cap 36,6 36,6	036 103 113 A
50	Hexagon bolt M 6 X 8 M 6 X 8	N 010 208 5
51	Spring washer 6 6	N 012 226 5
8	Bracket see illustration: 905-040 905-040	—
