Cylinder block pistonsoil sump — Mk3 Golf Engine (1995)

Factory title: Volkswagen Golf (1995) - Cylinder block with pistons. oil sump

Generation: Mk3 1995 (RDW) Group: Engine Rebuild step 1 Parts: 60 Primary OEM: 026 103 139, 030 115 112 B, 030 198 011

Cylinder block pistonsoil sump for the Volkswagen Golf Mk3 (1995): factory exploded diagram 103000 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 58 OEM part numbers across 60 catalogued positions including 026 103 139, 030 115 112 B and 030 198 011. Parts on this plate carry the engine codes ABD, ABU and AEA. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 58 OEM part numbers across 60 numbered positions.

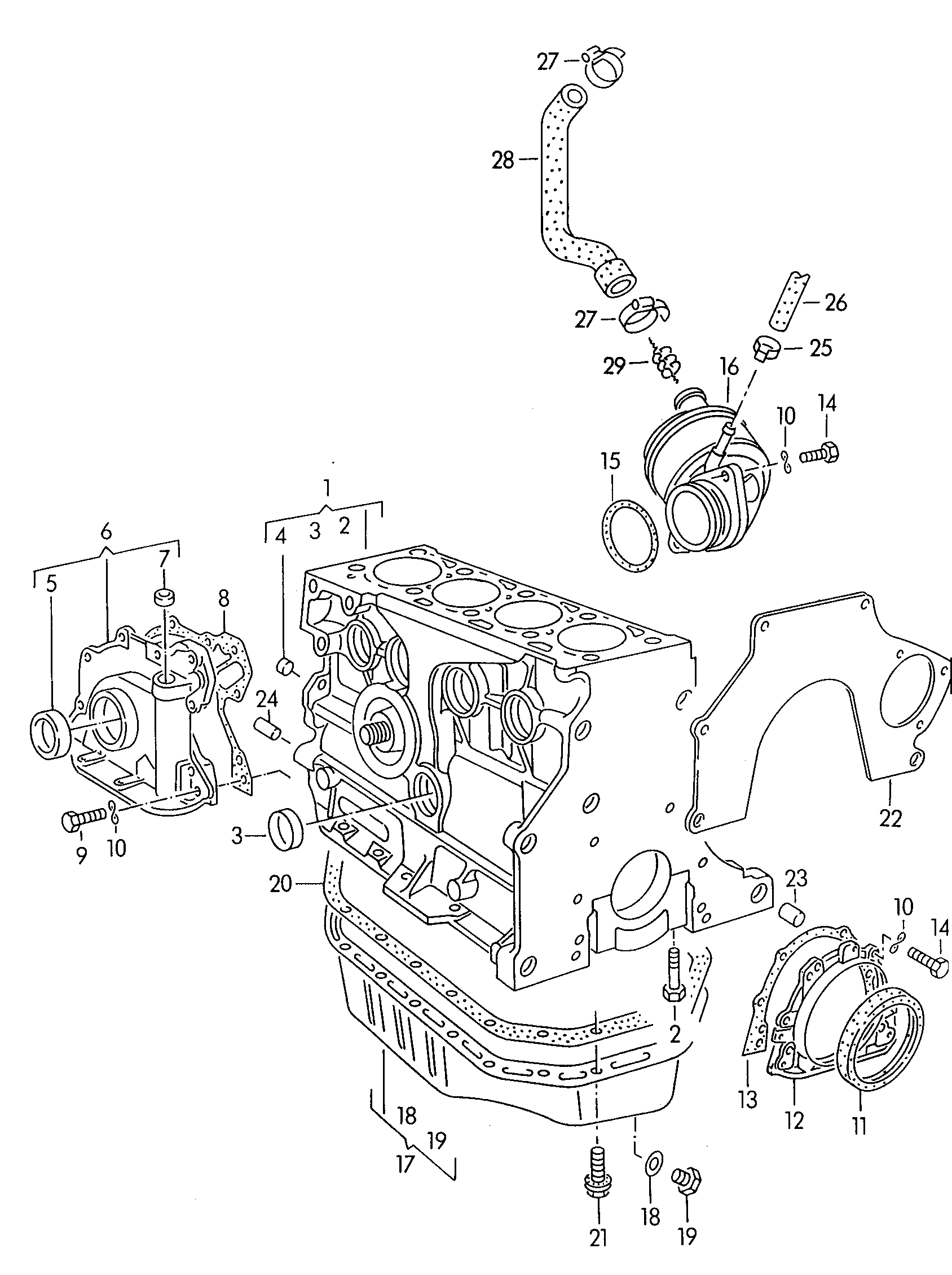

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	cylinder block with pistonsoil sump 1.4/1.6 ltr. ABD,ABU,AEA 1.4/1.6 ltr. ABDABUAEA	—
-	Cylinder pin 6 M 6 X 20 ABU,AEA 6 M 6 X 20 ABUAEA	026 103 139
-	bush	030 115 112 B
-	Gasket set for cylinderblock F >> 1 H-S-120 000F >> 1 H-SB 060 000 also use: 030 103 161 H AEAABU,AEA 030 103 161 H AEA	030 198 011
-	seal ring AEA AEA	036 103 677
(1)	cylinder block with pistons ABU ABU	032 103 101 A
(1)	cylinder block with pistons AEA AEA	032 103 101 F
(15)	seal ring 60 X 4 AEA 60 X 4 AEA	N 906 175 01
(16)	oil separator ABU ABU	032 103 495 C
(16)	oil separator AEA AEA	036 103 464 E
(17)	Engine oil sump F >> 1 H-S-120 000F >> 1 H-SB 060 000F 1 H-S-078 144>> ABU,AEA,ABD ABDABUAEA	032 103 601 A
(17)	Engine oil sump F 1 H-S-120 001>>F 1 H-SB 060 001>> AEA AEA	032 103 601 N
(18)	seal ring F 1 H-S-120 001>>F 1 H-SB 060 001>> 14 X 20 AEA 14 X 20 AEA	N 013 849 3
(19)	oil drain plug F 1 H-S-120 001>>F 1 H-SB 060 001>> M 14 X 1,5 X 18 AEA M 14 X 1,5 X 18 AEA	N 906 606 01
(20)	Seal F 1 H-S-120 001>>F 1 H-SB 060 001>> AEA AEA	036 103 609 B
(21)	Socket head bolt withinner multipoint head F 1 H-S-120 001>>F 1 H-SB 060 001>> M 6 X 22 AEA M 6 X 22 AEA	N 905 006 01
(22)	Spacer platemodify in workshop ABD ABD	052 103 551 A
(22)	Spacer plate ABD ABD	032 103 551 A
(22)	Spacer plate AEA AEA	036 103 551
(23)	dowel sleeve 16 X 13,5 ABU 16 X 13,5 ABU	022 103 139
(23)	dowel sleeve 16 X 13,5 ABU 16 X 13,5 ABU	012 301 153 B
(28)	Vent hose ABU ABU	032 103 493 E
(28)	Vent hose AEA AEA	036 103 493 K
(3)	End capoversize 38 38	034 103 113 B
(5)	Shaft oil seal 47 X 10 47 X 10	026 103 085 F
(6)	Sealing flange ABU,AEA ABUAEA	032 103 151 B
(8)	Seal ABU,AEA ABUAEA	030 103 161 H
1	cylinder block with pistons ABD ABD	030 103 101 AD
10	Spring washer 6 6	N 012 226 5
11	Discont. / replace: 068 103 171 F 068 103 171 F	—
12	Sealing flange	068 103 171 F
13	Seal	026 103 181 B
14	Hexagon bolt M 6 X 18 M 6 X 18	N 010 216 12
15	seal ring ABD,ABU ABDABU	030 103 677 A
16	oil separator ABD ABD	030 103 495 D
17	Engine oil sump F >> 1 H-S-078 143 also use: 032 103 609 B ABD 032 103 609 B ABD	030 103 601 E
17	Engine oil sump F 1 H-S-120 001>>F 1 H-SB 060 001>> AEA AEA	032 103 601 G
18	seal ring F >> 1 H-S-120 000F >> 1 H-SB 060 000 14 X 20 ABD,ABU,AEA 14 X 20 ABDABUAEA	N 013 849 2
19	oil drain plug F >> 1 H-S-120 000F >> 1 H-SB 060 000 M 14 X 1,5 X 16 ABD,ABU,AEA M 14 X 1,5 X 16 ABDABUAEA	N 902 889 01
19	oil drain plug M 14 X 1,5 X 12 AEA M 14 X 1,5 X 12 AEA	N 029 701 2
2	Hexagon bolt	N 102 638 01
20	Seal F >> 1 H-S-120 000F >> 1 H-SB 060 000 ABD,ABU,AEA ABDABUAEA	032 103 609 B
21	Hex collared bolt F >> 1 H-S-120 000F >> 1 H-SB 060 000 M 6 X 14 ABD,ABUAEA M 6 X 14 ABD	N 900 084 01
23	dowel sleeve 16 X 12,8 ABD 16 X 12,8 ABD	014 301 153
23	dowel sleeve 16 X 13,5 ABU 16 X 13,5 ABU	014 301 153 B
24	Cylinder pin 8 X 14 8 X 14	N 043 207 2
27	Clamp 25-40 X 9 X 0,5 25-40 X 9 X 0,5	N 024 506 5
28	Vent hose ABD ABD	030 103 493 AM
29	flame deflector plate	030 103 683
3	End cap 36,6 36,6	036 103 113 A
3	End cap 36,6 36,6	059 103 113
4	End cap 14 14	N 011 907 4
4	End cap A 14 A 14	N 011 907 7
5	Shaft oil seal 47 X 10 47 X 10	068 103 085 E
5	Shaft oil seal 47 X 10 47 X 10	026 103 085 E
6	Sealing flange ABD ABD	031 103 151 A
7	Bungs 15,2 15,2	021 101 119
8	Seal ABU,AEA ABUAEA	032 103 161 C
8	Seal ABD ABD	030 103 161 C
9	Hexagon bolt M 6 X 20 M 6 X 20	N 010 217 10

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1995
Generation region: RDW
Generation code: 159
Engine codes on this plate: ABD, ABU, AEA
Variant tags: petrol_8v_base
Factory group: 01 Engine
Factory subgroup: 103000
