Cylinder block pistonsoil sump — Mk3 Golf Engine (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Cylinder block with pistons. oil sump

Generation: Mk3 1997 (RDW) Group: Engine Rebuild step 1 Parts: 46 Primary OEM: 032 103 101 F, 034 103 113 B, 030 103 101 AG

Cylinder block pistonsoil sump for the Volkswagen Golf Mk3 (1997): factory exploded diagram 103000 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 39 OEM part numbers across 46 catalogued positions including 032 103 101 F, 034 103 113 B and 030 103 101 AG. Parts on this plate carry the engine codes AEE and AEX. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 39 OEM part numbers across 46 numbered positions.

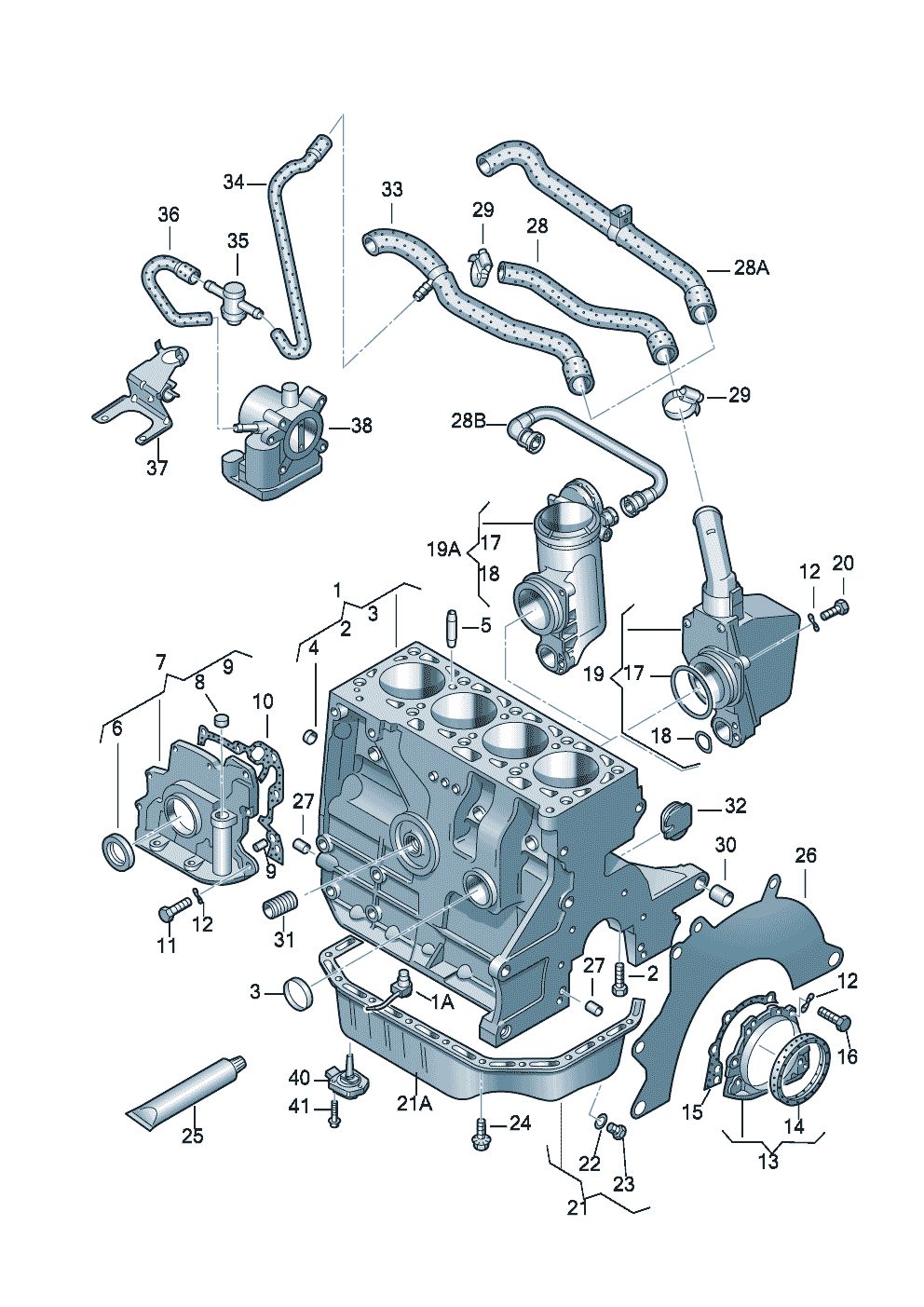

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
cylinder block with pistonsoil sump 1.4/1.6 ltr. AEX,AEE
1.4/1.6 ltr.
AEEAEX
—
(1)
cylinder block with pistons AEE
AEE
032 103 101 F
(10)
Seal F 1 H-WB 050 001>>*F 1 H-WD 119 001>>*F 1 H-WP 090 001>>*F 1 H-WW 157 906>> see illustration: 115-010
115-010
 —
(11)
Hexagon bolt F 1 H-WB 050 001>>*F 1 H-WD 119 001>>*F 1 H-WP 090 001>>*F 1 H-WW 157 906>> see illustration: 115-010
115-010
 —
(3)
End capoversize 38
38
 034 103 113 B
(7)
oil pump F 1 H-WB 050 001>>*F 1 H-WD 119 001>>*F 1 H-WP 090 001>>*F 1 H-WW 157 906>> see illustration: 115-010
115-010
 —
1
cylinder block with pistons AEX
AEX
030 103 101 AG
10
Seal F >> 1 H-WB 050 000*F >> 1 H-WD 119 000*F >> 1 H-WP 090 000*F >> 1 H-WW 157 905
 030 103 161 H
10
Seal F >> 1 H-V-100 000*
 032 103 161 C
11
Hexagon bolt F >> 1 H-WB 050 000*F >> 1 H-WD 119 000*F >> 1 H-WP 090 000*F >> 1 H-WW 157 905 M 6 X 20
M 6 X 20
 N 010 217 10
12
Spring washer 6
6
 N 012 226 5
13
Sealing flange
 028 103 171 B
13
Sealing flange
 068 103 171 F
15
Seal
 026 103 181 B
16
Hexagon bolt M 6 X 18
M 6 X 18
 N 010 216 12
17
seal ring 60 X 4
60 X 4
 N 906 175 01
18
seal ring
 036 103 677
19
oil separator
 036 103 464 G
2
Hexagon bolt
 N 102 638 01
20
Socket head bolt withinner multipoint head M 6 X 30
M 6 X 30
 N 102 488 01
21
Engine oil sump
 032 103 601 G
21
Engine oil sump
 032 103 601 N
22
seal ring 14 X 20
14 X 20
 N 013 849 3
23
oil drain plug M 14 X 1,5 X 12
M 14 X 1,5 X 12
 N 029 701 2
23
oil drain plug M 14 X 1,5 X 18
M 14 X 1,5 X 18
 N 906 606 01
23
oil drain plug M 14 X 1,5 X 20
M 14 X 1,5 X 20
 N 907 576 01
24
Socket head bolt withinner multipoint head M 6 X 22
M 6 X 22
 N 905 006 01
25
Silicone sealantoil sump
 D 176 404 A2
26
Spacer plate
 036 103 551
27
Cylinder pin 8 X 14
8 X 14
 N 043 207 2
28
Vent hose
 030 103 493 BB
29
Clamp 25-40 X 9 X 0,5
25-40 X 9 X 0,5
 N 024 506 5
3
End cap 36,6
36,6
 036 103 113 A
3
End cap 36,6
36,6
 059 103 113
30
dowel sleeve see illustration: 300-072
300-072
 —
31
threaded union see illustration: 115-010
115-010
 —
4
End cap 14
14
 N 011 907 7
4
End cap 14
14
 N 011 907 4
5
Cylinder pin 6 X 20
6 X 20
 026 103 139
6
Shaft oil seal 47 X 10
47 X 10
 026 103 085 F
6
Shaft oil seal F >> 1 H-WB 050 000*F >> 1 H-WD 119 000*F >> 1 H-WP 090 000*F >> 1 H-WW 157 905 47 X 10
47 X 10
 068 103 085 E
6
Shaft oil seal F 1 H-WB 050 001>>*F 1 H-WD 119 001>>*F 1 H-WP 090 001>>*F 1 H-WW 157 906>> 42 X 6
42 X 6
 036 103 085 H
6
Shaft oil seal F 1 H-WB 050 001>>*F 1 H-WD 119 001>>*F 1 H-WP 090 001>>*F 1 H-WW 157 906>> 42 X 7
42 X 7
 036 103 085 C
7
Sealing flange F >> 1 H-WB 050 000*F >> 1 H-WD 119 000*F >> 1 H-WP 090 000*F >> 1 H-WW 157 905
 032 103 151 B
8
Bungs F >> 1 H-WB 050 000*F >> 1 H-WD 119 000*F >> 1 H-WP 090 000*F >> 1 H-WW 157 905 15,2
15,2
 021 101 119
9
bush see illustration: 115-010
115-010
 —

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk3
Model years
1997
Generation region
RDW
Generation code
184
Engine codes on this plate
AEE, AEX
Variant tags
petrol_8v_base
Factory group
01 Engine
Factory subgroup
103000

Related factory diagrams

Other published engine plates for the Mk3 Golf in this catalogue.

The complete Mk3 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the cylinder block pistonsoil sump diagram for the Mk3 Golf?
This diagram lists 39 OEM part numbers for the Mk3 Golf. The first three are 032 103 101 F, 034 103 113 B and 030 103 101 AG.
Which Mk3 Golf years and engines does this diagram cover?
This plate is from the Mk3 Golf 1997 generation (RDW). The parts on it carry the engine codes AEE and AEX.
Where is the complete Mk3 Golf factory parts catalogue?
The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
