Which VW part numbers are on the cylinder block pistonsoil sump diagram for the Mk3 Golf?

This diagram lists 39 OEM part numbers for the Mk3 Golf. The first three are N 907 123 01, 021 103 101 and 021 103 101 B.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The parts on it carry the engine code AAA.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Cylinder block pistonsoil sump — Mk3 Golf Engine (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Cylinder block with pistons. oil sump

Generation: Mk3 1997 (RDW) Group: Engine Rebuild step 1 Parts: 40 Primary OEM: N 907 123 01, 021 103 101, 021 103 101 B

Cylinder block pistonsoil sump for the Volkswagen Golf Mk3 (1997): factory exploded diagram 103025 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 39 OEM part numbers across 40 catalogued positions including N 907 123 01, 021 103 101 and 021 103 101 B. Parts on this plate carry the engine code AAA. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 39 OEM part numbers across 40 numbered positions.

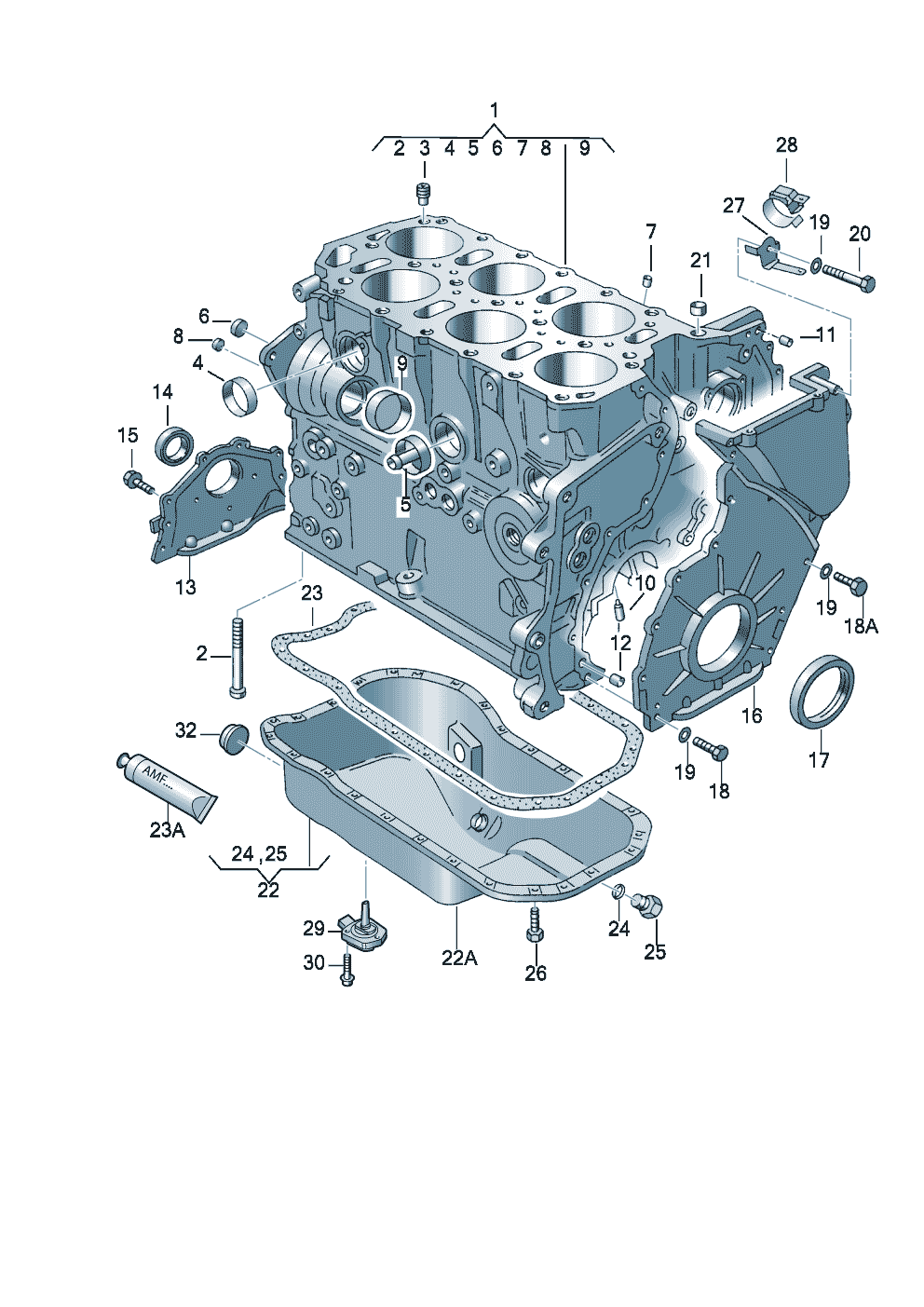

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	cylinder block with pistonsoil sump 2.8 Ltr. AAA 2.8 Ltr. AAA	—
(26)	Socket head bolt M AAA 255 786>> M 6 X 12 M 6 X 12	N 907 123 01
1	cylinder block with pistons	021 103 101
1	cylinder block with pistons	021 103 101 B
10	oil spray jet	021 103 157 A
11	Cylinder pin 8 X 14 8 X 14	N 043 207 2
12	dowel sleeve 16 X 13,5 16 X 13,5	012 301 153 B
12	dowel sleeve 16 X 13,5 16 X 13,5	022 103 139
12	dowel sleeve 16 X 13,5 16 X 13,5	014 301 153 B
13	Sealing flange	021 103 153 A
13	Sealing flange	022 103 153
14	radial shaft seal 35 X 48 X 10 35 X 48 X 10	054 115 147 B
14	radial shaft seal 35 X 48 X 10 35 X 48 X 10	034 115 147 A
15	Hexagon bolt also use: M 6 X 15 N 011 524 23 M 6 X 15 N 011 524 23	N 010 215 27
16	Sealing flange	021 103 173 E
17	repair kit for sealingflange	068 198 171
18	Hexagon bolt also use: M 6 X 18 N 011 524 23 M 6 X 18 N 011 524 23	N 010 216 12
18A	Hexagon bolt also use: M 6 X 12 N 011 524 23 M 6 X 12 N 011 524 23	N 010 212 26
19	Washer 6,4 X 12,5 X 1,6 6,4 X 12,5 X 1,6	N 011 524 23
2	Socket head bolt with innermultipoint head M 10 X 78 M 10 X 78	N 903 658 01
20	Socket head bolt withhexagon socket head also use: M 6 X 60 N 011 524 23 M 6 X 60 N 011 524 23	N 014 722 2
21	dowel sleeve 14 X 12 14 X 12	N 905 026 01
22A	Engine oil sump	021 103 601 B
23	Seal M >> AAA 255 785	021 103 609 B
23A	Silicone sealant M AAA 255 786>>	D 176 404 A2
24	seal ring 14 X 20 14 X 20	N 013 849 2
25	oil drain plug M 14 X 1,5 X 16 M 14 X 1,5 X 16	N 902 889 01
26	bolt, hex. hd. with shoulder,self-locking M >> AAA 255 785 M 6 X 17 M 6 X 17	N 904 234 02
27	Retaining plate	021 121 120
28	Bracket	021 121 093 C
28	Bracket	7M0 121 093
3	Valve	077 103 175 B
4	End cap 36,6 36,6	036 103 113 A
4	End cap 36,6 36,6	059 103 113
5	Connector union	035 103 111 B
6	End cap 16 16	N 011 903 4
6	End cap 16 16	N 011 903 3
7	Bungs 7,3 X 9,3 7,3 X 9,3	113 101 115 A
8	End cap 10,1 10,1	N 011 910 1
9	End cap 24 24	N 011 914 2

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: AAA
Factory group: 01 Engine
Factory subgroup: 103025
