Cylinder head — Mk3 Golf Engine (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Cylinder block with pistons. oil sump

Generation: Mk3 1997 (RDW) Group: Engine Rebuild step 1 Parts: 72 Primary OEM: 028 103 935 A B 41, 867 711 532, 028 103 638 F

Cylinder head for the Volkswagen Golf Mk3 (1997): factory exploded diagram 103045 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 70 OEM part numbers across 72 catalogued positions including 028 103 935 A B 41, 867 711 532 and 028 103 638 F. Parts on this plate carry the engine codes 1Y, 1Z, AAZ, AEY, AFN, AHU and ALE. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 70 OEM part numbers across 72 numbered positions.

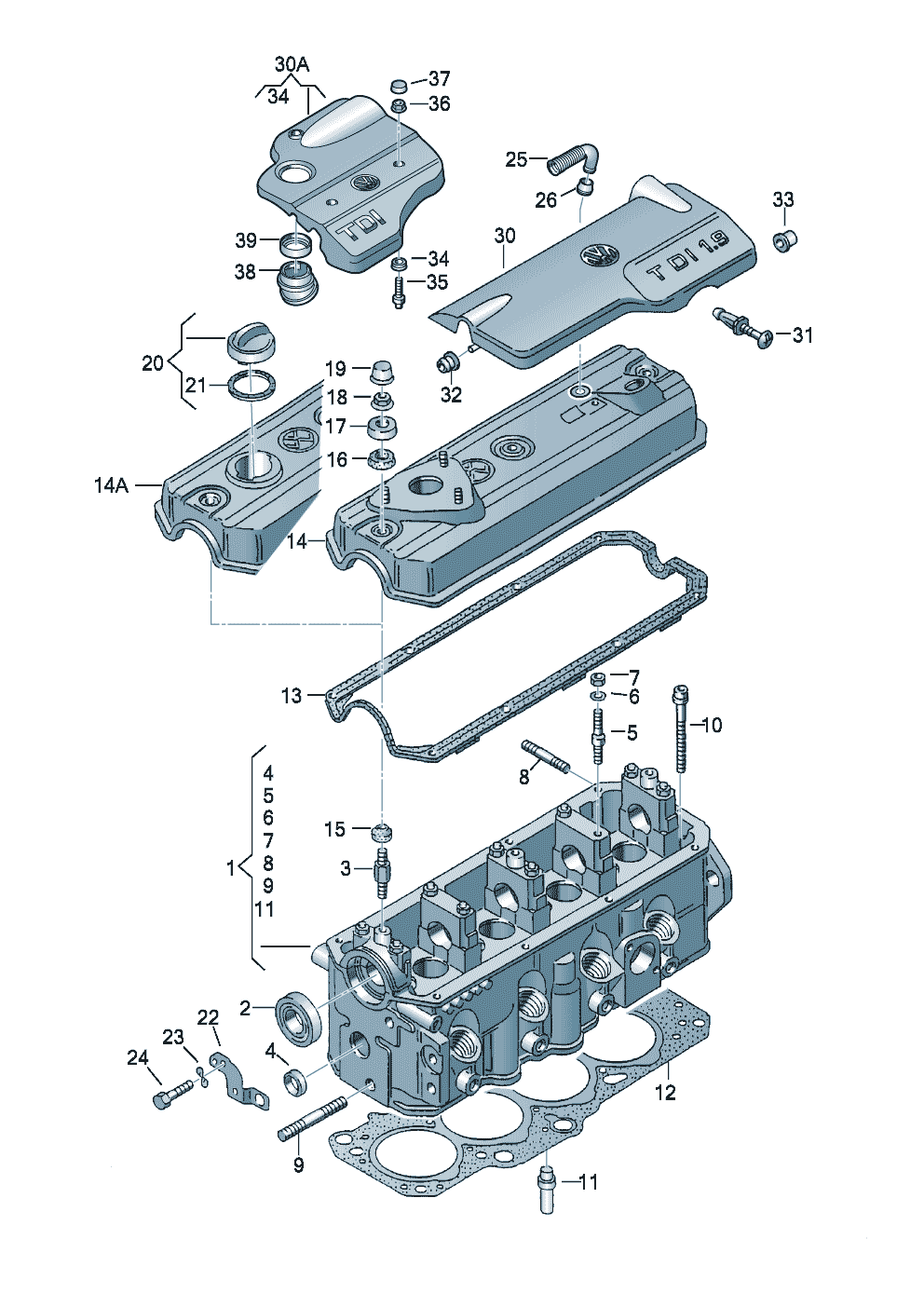

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	028 103 935 A B 41
	Cylinder head diesel eng.	—
	Cylinder head 1.9 ltr. Diesel eng.+1 Y,AEY,AAZ,1 Z,AHU,ALE,AFN 1.9 ltr. 1ZAAZAEYAFNAHUALE	—
-	Bracket Coolant hose AEY,1 Z,AHU 1ZAEYAHU	867 711 532
-	Grommet AFN AFN	028 103 638 F
(1)	Cylinder head AEY AEY	028 103 351 K
(1)	Cylinder head with valvesand camshaft 1 Y 1Y	028 103 265 GX
(1)	Cylinder head 1 Z,AHU,ALE,AFN 1ZAFNAHUALE	028 103 351 P
(1)	Cylinder head AAZ AAZ	028 103 351 J
(1)	Cylinder head with valvesand camshaft 1 Z,AHU,AFN,ALE 1ZAFNAHUALE	028 103 265 HX
(1)	Cylinder head with valvesand camshaft AAZ AAZ	028 103 265 FX
(1)	Cylinder head with valvesand camshaft AEY AEY	028 103 265 JX
(12)	Cylinder head gasket 1,53 MM AEY,1 Z,AHU,ALE,AFN 1,53 MM 1ZAEYAFNAHUALE	028 103 383 BQ
(12)	Cylinder head gasket (metal) 1,61 MM 1 Y,AAZ 1,61 MM 1YAAZ	028 103 383 BK
(12)	Cylinder head gasket 1,61 MM AEY,1 Z,AHU,ALE,AFN 1,61 MM 1ZAEYAFNAHUALE	028 103 383 BR
(12)	Cylinder head gasket (metal) 1,53 MM 1 Y,AAZ 1,53 MM 1YAAZ	028 103 383 BH
(12)	Cylinder head gasket 1,45 MM AEY,1 Z,AHU,ALE,AFN 1,45 MM 1ZAEYAFNAHUALE	028 103 383 BL
(12)	Cylinder head gasket 1,53 MM AEY,1 Z,AFN,AHU 1,53 MM 1ZAEYAFNAHU	028 103 383 AT
(12)	Cylinder head gasket 1,61 MM AEY,1 Z,AHU,ALE,AFN 1,61 MM 1ZAEYAFNAHUALE	028 103 383 BA
(12)	Cylinder head gasket (metal) 1,57 MM 1 Y,AAZ 1,57 MM 1YAAZ	028 103 383 BJ
(13)	Seal AEY,1 Z,AHU,ALE,AFN 1ZAEYAFNAHUALE	028 103 483 G
(14)	cylinder head cover AEY,1 Z,AHU,ALE,AFN 1ZAEYAFNAHUALE	028 103 469 E
(19)	Cover cap	028 103 534 A
(3)	Threaded pin also use: M 6 X 12028 103 534 A M 6 X 12028 103 534 A	028 103 531 B
(30)	Cover "VW" "SDI 1,9" AEY "VW" "SDI 1,9" AEY	028 103 935 K
(30)	Cover F >> 1 H-V-100 000* AFN AFN	028 103 935 F
(30)	Cover AEY AEY	028 103 935 D
(4)	End capoversize 25 25	N 011 919 1
(9)	Threaded pin M 10 XM 8 X 62 M 10 XM 8 X 62	N 014 408 3
1	Cylinder head 1 Y 1Y	028 103 351 M
10	Socket head bolt M 12 X 115 M 12 X 115	068 103 384 A
11	Valve guide 36,5 MM/7 MM 36,5 MM/7 MM	037 103 419 B
12	Cylinder head gasket 1,45 MM AEY,1 Z,AFN,AHU 1,45 MM 1ZAEYAFNAHU	028 103 383 AS
12	Cylinder head gasket 1,45 MM AEY,1 Z,AHU,ALE,AFN 1,45 MM 1ZAEYAFNAHUALE	028 103 383 BP
13	Seal 1 Y,AAZ 1YAAZ	028 103 483 H
14	cylinder head cover 1 Y,AAZ 1YAAZ	028 103 469 L
15	Sealing cone	028 103 532 A
16	Sealing plate	028 103 533
17	Cup washer	028 103 536
18	hex. nut with washer M 6 M 6	N 901 326 03
2	Shaft oil seal 47 X 10 47 X 10	068 103 085 E
2	Shaft oil seal 47 X 10 47 X 10	026 103 085 F
20	End cap	026 103 485 A
20	End cap	06B 103 485 C
20	End cap	06A 103 485 F
21	Seal	059 103 487
21	Seal	06A 103 483 D
22	Bracket	028 103 941
22	Bracketcover for intake manifold	038 103 941 A
22	Retaining bracketcover for intake manifold	038 103 941 E
23	Spring washer B 8 X 15 X 0,8 B 8 X 15 X 0,8	N 012 241 11
23	Spring washer B 8 X 15 B 8 X 15	N 012 241 10
24	Hexagon bolt M 8 X 28 M 8 X 28	N 010 233 6
25	Hexagon bolt M 8 X 50 AEY,1 Z,AHU,ALE,AFN M 8 X 50 1ZAEYAFNAHUALE	N 010 350 6
30	Cover 1 Z,AHU,ALE 1ZAHUALE	028 103 935 A
30A	Cover ALE,AFN AFNALE	028 103 935 M
31	Spreader rivet AEY,1 Z,AHU 1ZAEYAHU	028 103 952
32	Grommet AEY,1 Z,AHU 1ZAEYAHU	028 103 638
33	Grommet AEY,1 Z,AHU 1ZAEYAHU	028 103 638 A
34	Grommet ALE,AFN AFNALE	028 103 638 G
34	Grommet ALE,AFN AFNALE	028 103 638 M
35	Securing pin ALE,AFN AFNALE	028 103 665
36	hex. nut with washer M 6 ALE,AFN M 6 AFNALE	N 901 326 03
37	Cap closure ALE,AFN AFNALE	028 103 937
38	oil filler support ALE,AFN AFNALE	028 115 301
39	seal ring ALE,AFN AFNALE	021 133 287 A
4	End cap 24 24	N 011 914 2
5	Threaded pin M 8 X 56 M 8 X 56	056 103 397
6	Washer 8,4 X 15 X 1,6 8,4 X 15 X 1,6	N 011 558 11
7	Hexagon nut M 8 M 8	N 011 008 8
8	Threaded pin M 8 X 35 M 8 X 35	N 901 889 02
9	Threaded pin M 10 X 45 1 Y,AAZ M 10 X 45 1YAAZ	N 900 803 01

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: 1Y, 1Z, AAZ, AEY, AFN, AHU, ALE
Variant tags: diesel
Factory group: 01 Engine
Factory subgroup: 103045
