Cylinder headcylinder head cover 1 6 2 0 litres — Mk3 Golf Engine (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Cylinder block with pistons. oil sump

Generation: Mk3 1997 (RDW) Group: Engine Rebuild step 1 Parts: 44 Primary OEM: 051 103 265 BX, 048 103 265 LX, 051 103 265 CX

Cylinder headcylinder head cover 1 6 2 0 litres for the Volkswagen Golf Mk3 (1997): factory exploded diagram 103035 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 43 OEM part numbers across 44 catalogued positions including 051 103 265 BX, 048 103 265 LX and 051 103 265 CX. Parts on this plate carry the engine codes AAM, ACC, ADZ, AEP, AFT, AGG, AKR and AKS. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 43 OEM part numbers across 44 numbered positions.

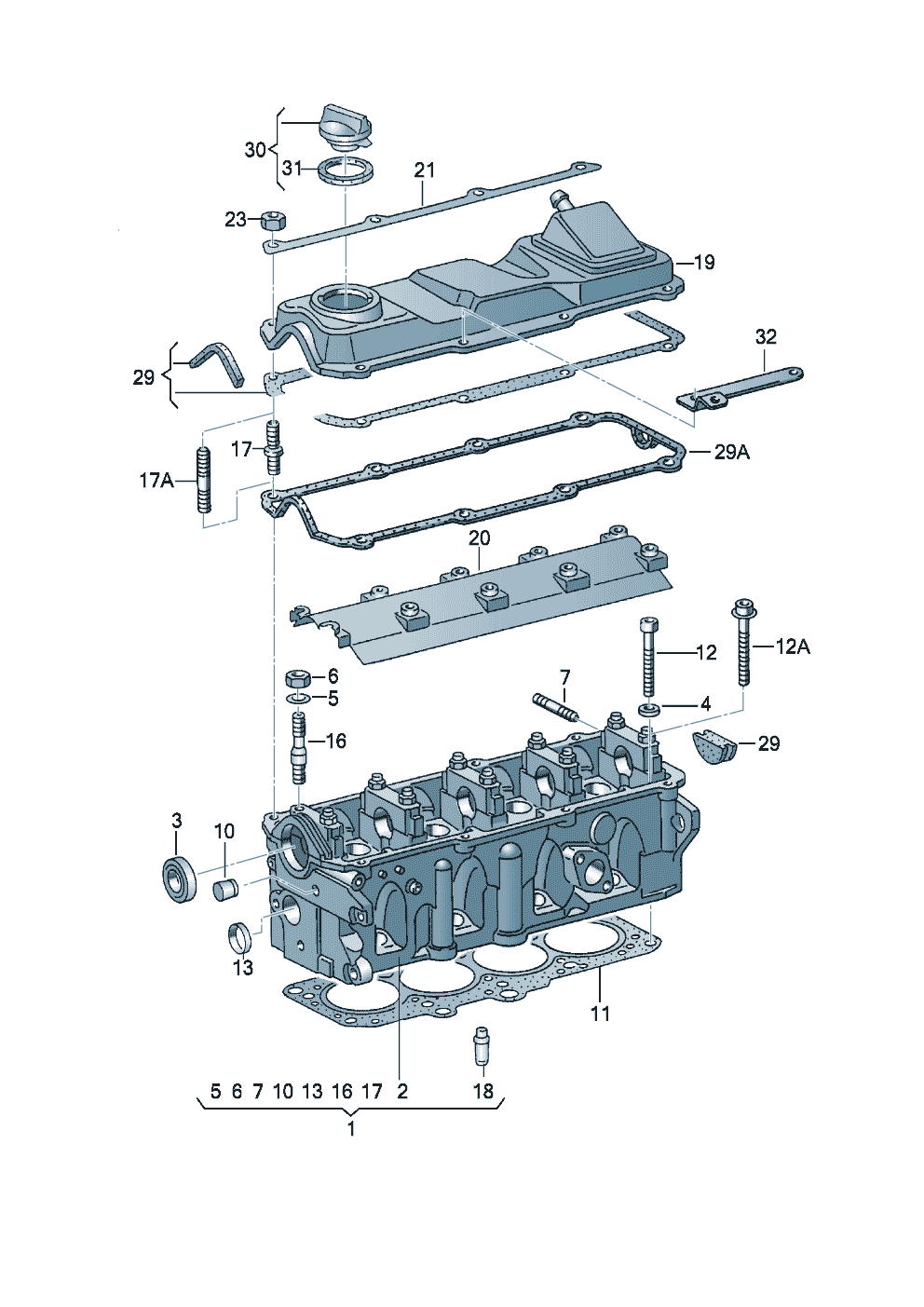

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Cylinder headcylinder head cover 1.6-2.0 litres ADZ,AAM,AFT,AKS,AEP,AGG,AKR,ACC 1.6-2.0 litres AAMACCADZAEPAFTAGGAKRAKS	—
-	Cylinder head with valvesand camshaft also use:SIEHE IDENTIFIKATIONSKATALOG 026 198 025 A 051 103 483 A AAM 026 198 025 A 051 103 483 A AAM	051 103 265 BX
-	Cylinder head with valvesand camshaft AGG,AKR,AEP AEPAGGAKR	048 103 265 LX
-	Cylinder head with valvesand camshaft also use:SIEHE IDENTIFIKATIONSKATALOG 026 198 025 A 051 103 483 A ADZ 026 198 025 A 051 103 483 A ADZ	051 103 265 CX
-	Cylinder head with valvesand camshaft AFT,AKS AFTAKS	050 103 265 X
-	Cylinder head with valvesand camshaft AAM AAM	051 103 265 EX
-	Cylinder head with valvesand camshaft ADZ,ACC ACCADZ	051 103 265 DX
(1)	Cylinder head AEP,AGG,AKR AEPAGGAKR	048 103 351 D
(1)	Cylinder head ACC,ADZ,AAM AAMACCADZ	051 103 351 C
(1)	Cylinder head AFT,AKS AFTAKS	050 103 351
(11)	Cylinder head gasket (metal) AEP,AGG,AKR AEPAGGAKR	048 103 383 D
(11)	Cylinder head gasket (metal) AAM,ADZ,ACC AAMACCADZ	050 103 383 B
(11)	Cylinder head gasket (metal) AFT,AKS AFTAKS	050 103 383
(11)	Cylinder head gasket (metal) AAM,ADZ,ACC AAMACCADZ	050 103 383 A
(13)	sealing plug	059 103 381 A
(13)	End capoversize 25 25	N 011 919 1
(18)	Valve guide 36,5 MM/7 MM 36,5 MM/7 MM	037 103 419 B
(19)	cylinder head cover AEP,AGG,AKR AEPAGGAKR	037 103 475 G
(19)	cylinder head cover AFT,AKS AFTAKS	037 103 469 N
(20)	oil deflector AFT,AKS AFTAKS	06A 103 544
(29A)	Seal	051 103 483 A
10	Bungs 8,9 8,9	035 103 379
12A	Socket head bolt with innermultipoint head M 11 X 1,5 X 96 M 11 X 1,5 X 96	050 103 384
13	End cap 24 24	N 011 914 2
16	Threaded pin M 8 X 56 M 8 X 56	056 103 397
17A	Threaded pin M 6 X 20 M 6 X 20	N 101 863 01
18	Valve guide 36,5 MM/8 MM 36,5 MM/8 MM	056 103 419 A
19	cylinder head cover AAM,ADZ,ACC AAMACCADZ	026 103 469 E
20	oil deflector ADZ,AAM,AEP,AGG,AKR,ACC AAMACCADZAEPAGGAKR	026 103 547
21	strip	056 103 591
23	Hexagon nut M 6 M 6	N 011 006 27
3	Shaft oil seal 47 X 10 47 X 10	026 103 085 F
3	Shaft oil seal 47 X 10 47 X 10	068 103 085 E
30	End cap	026 103 485 A
30	End cap	06A 103 485 F
30	End cap	06B 103 485 C
31	Seal	059 103 487
31	Seal	06A 103 483 D
4	Washer 11,5 X 20 11,5 X 20	056 103 377
5	Washer 8,4 X 15 X 1,6 8,4 X 15 X 1,6	N 011 558 11
6	Hexagon nut M 8 M 8	N 011 008 8
7	Threaded pin M 8 X 30 M 8 X 30	N 044 411 5
8	Threaded pin M 10 X 40 M 10 X 40	N 902 964 01
9	double stud with hexagon drive M 6 X 22/M 6 X 14 M 6 X 22/M 6 X 14	027 121 631 A
