Cylinder headcylinder head cover — Mk3 Golf Engine (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Cylinder block with pistons. oil sump

Generation: Mk3 1997 (RDW) Group: Engine Rebuild step 1 Parts: 40 Primary OEM: 021 905 163, 021 109 111 H, 021 103 383 L

Cylinder headcylinder head cover for the Volkswagen Golf Mk3 (1997): factory exploded diagram 103050 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 38 OEM part numbers across 40 catalogued positions including 021 905 163, 021 109 111 H and 021 103 383 L. Parts on this plate carry the engine code AAA. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 38 OEM part numbers across 40 numbered positions.

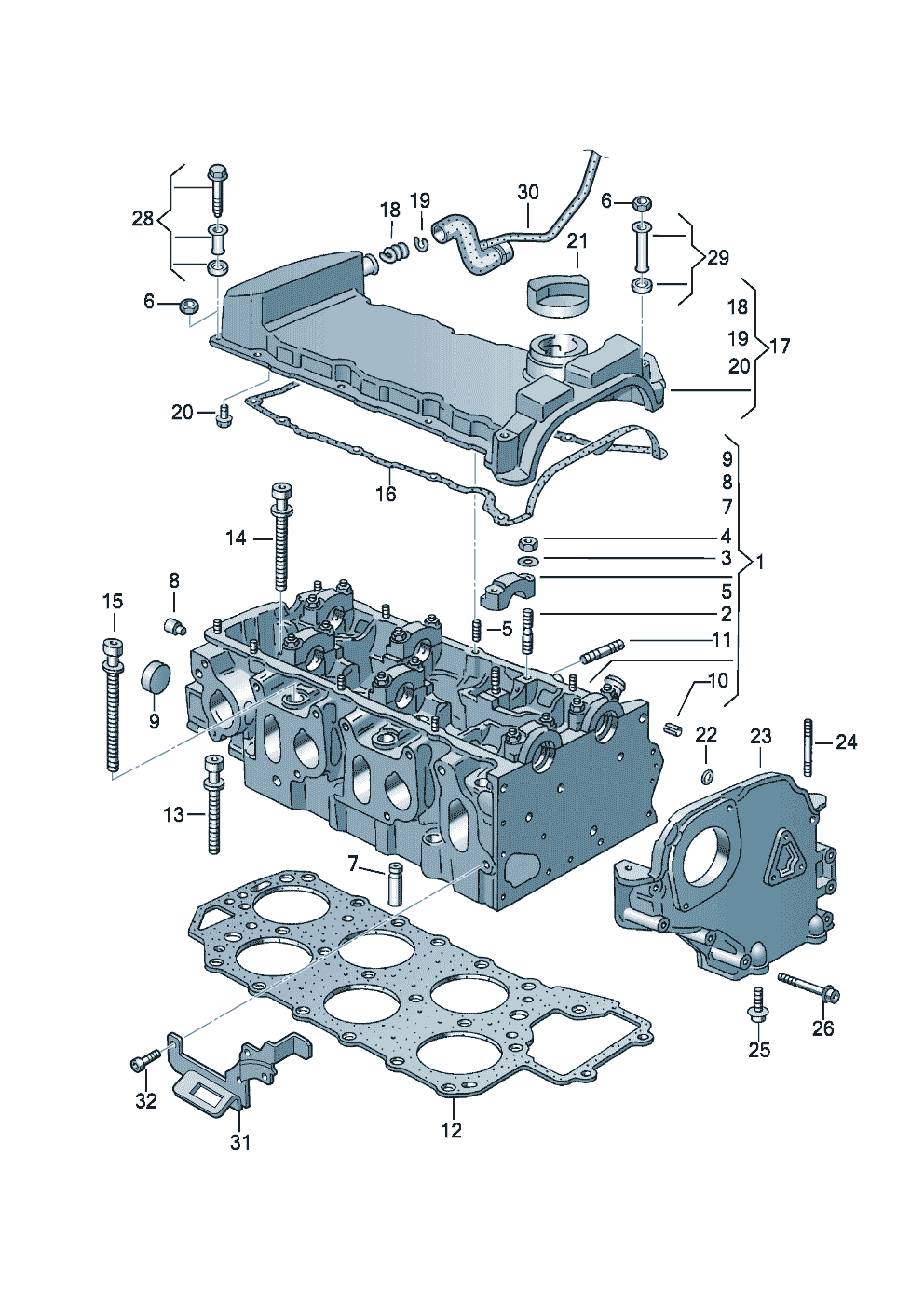

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Cylinder headcylinder head cover 2.8 Ltr. AAA 2.8 Ltr. AAA	—
-	Position sensor wheel forcamshaft	021 905 163
-	Chain sprocket Z=27 Z=27	021 109 111 H
(12)	Cylinder head gasket	021 103 383 L
(16)	Seal	021 103 483 D
(17)	cylinder head cover M >> AAA 260 000*	021 103 475 M
(17)	cylinder head cover M AAA 260 001>>*	021 103 475 M
(17)	cylinder head cover M >> AAA 260 000*	021 103 475 G
(23)	Cover	021 109 125 B
(23)	Cover M >> AAA 260 000*	021 109 127 B
(23)	Cover M AAA 260 001>>*	021 109 127 C
(24)	Threaded pin M 6 X 62 M 6 X 62	N 102 771 01
(6)	Hexagon collar nut M 6 M 6	N 901 752 03
(8)	Bungsoversize 9,5 9,5	034 103 379
(9)	End capoversize 38 38	034 103 113 B
1	Cylinder head with valvesand camshaft also use: use if required: M AAA 217001>>021 109 111 H 021 905 163 M AAA 217001>>021 109 111 H 021 905 163	021 103 265 X
1	Cylinder head	021 103 351 A
10	spring pin 9 X 11,8 9 X 11,8	N 903 327 01
11	Threaded pin M 8 X 35 M 8 X 35	N 901 889 02
13	Socket head bolt with innermultipoint head M 11 X 1,5 X 85 M 11 X 1,5 X 85	021 103 384 E
14	Socket head bolt with innermultipoint head M 11 X 1,5 X 119 M 11 X 1,5 X 119	021 103 384 D
15	Socket head bolt with innermultipoint head M 11 X 1,5 X 144 M 11 X 1,5 X 144	021 103 384 F
2	Threaded pin M 8 X 45,5 M 8 X 45,5	021 103 397
21	End cap	026 103 485 A
21	End cap	06B 103 485 C
21	End cap	06A 103 485 F
22	O-ring 8 X 3 8 X 3	N 900 411 02
25	Socket head bolt with hexagonsocket head (combination) M 8 X 30 M 8 X 30	N 903 559 02
26	Socket head bolt with hexagonsocket head (combination) M 6 X 65 M 6 X 65	N 100 993 01
26	Socket head bolt with hexagonsocket head (combination) M 6 X 65 M 6 X 65	N 100 993 02
27	Sealing plate	021 103 827
28	Hexagon collared bolt withguide sleeve	021 103 831
29	guide sleeve	021 103 831 A
3	Washer 8,4 X 15 X 1,6 8,4 X 15 X 1,6	N 011 558 11
30	intake hose see illustration, item: 129-026,9 129-026,9	—
4	Hexagon nut M 8 M 8	N 011 008 8
7	Valve guide 38 MM 38 MM	027 103 419
8	Bungs 8,9 8,9	035 103 379
9	End cap 36,6 36,6	059 103 113
9	End cap 36,6 36,6	036 103 113 A
