Cylinder headcylinder head cover — Mk3 Golf Engine (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Cylinder block with pistons. oil sump

Generation: Mk3 1997 (RDW) Group: Engine Rebuild step 1 Parts: 35 Primary OEM: 053 103 265 GX, 051 198 025, 051 103 475 B

Cylinder headcylinder head cover for the Volkswagen Golf Mk3 (1997): factory exploded diagram 103048 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 33 OEM part numbers across 35 catalogued positions including 053 103 265 GX, 051 198 025 and 051 103 475 B. Parts on this plate carry the engine code ABF. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 33 OEM part numbers across 35 numbered positions.

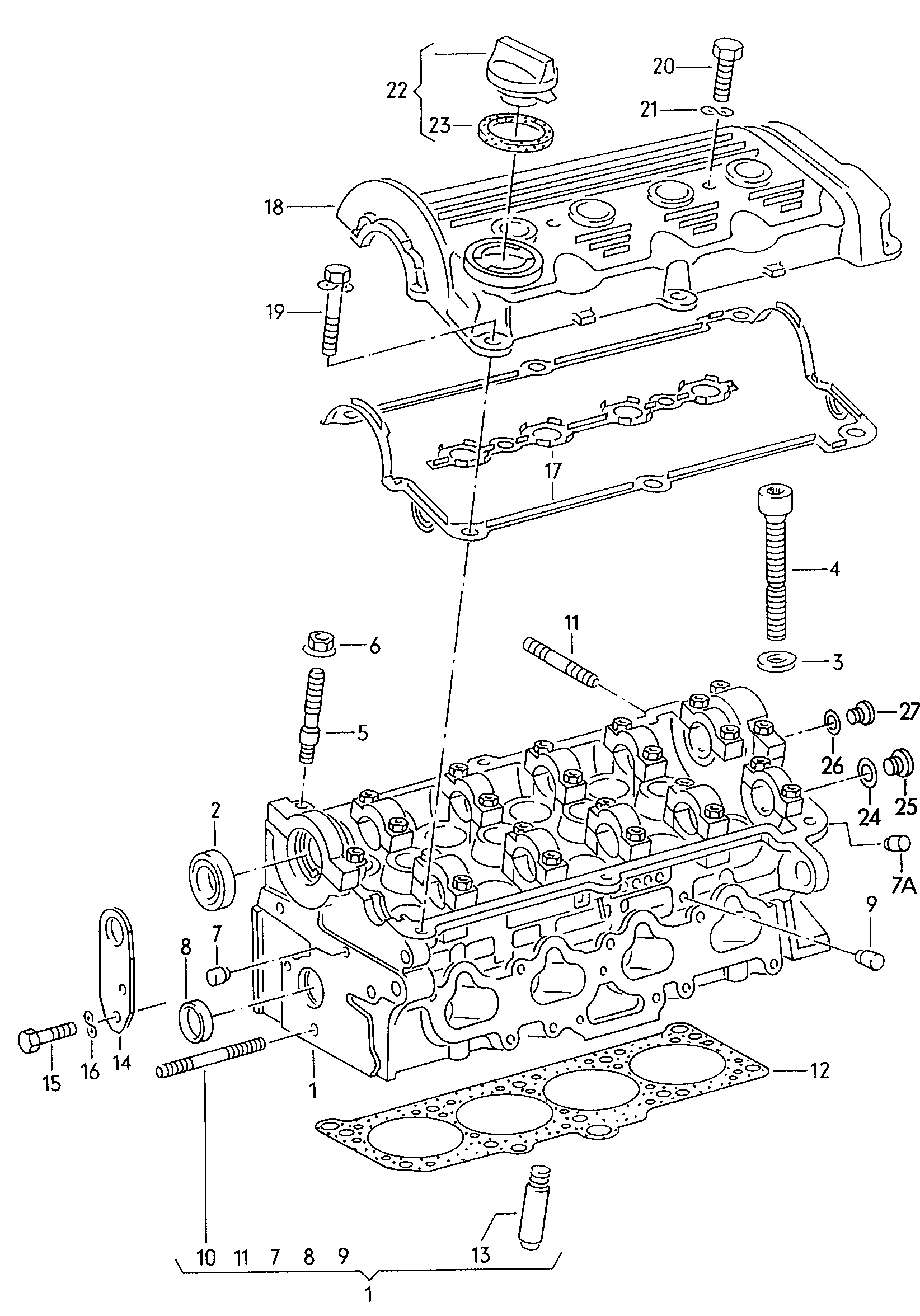

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Cylinder headcylinder head cover 2.0 Ltr. ABF 2.0 Ltr. ABF	—
	Cylinder headcylinder head cover 16 V	—
(1)	Cylinder head with valvesand camshaft	053 103 265 GX
(17)	Gasket set for cylinderhead cover	051 198 025
(18)	cylinder head cover	051 103 475 B
1	Cylinder head	053 103 351 C
10	Threaded pin M 10 X 40 M 10 X 40	N 902 964 01
11	Threaded pin M 8 X 30 M 8 X 30	N 044 411 5
12	Cylinder head gasket (metal)	048 103 383 D
13	Valve guide 35 MM 35 MM	051 103 419
14	strap	027 103 390
15	Hexagon bolt M 10 X 35 M 10 X 35	N 010 275 4
16	Spring washer 10 10	N 012 230 7
19	hexagon head bolt (combi) M 6 X 50 M 6 X 50	N 100 929 01
2	Shaft oil seal 47 X 10 47 X 10	068 103 085 E
2	Shaft oil seal 47 X 10 47 X 10	026 103 085 F
20	Hexagon bolt M 6 X 25 M 6 X 25	N 010 218 6
21	Washer 6,4 X 12,5 X 1,6 6,4 X 12,5 X 1,6	N 011 524 23
22	End cap	06A 103 485 F
22	End cap	06B 103 485 C
22	End cap	026 103 485 A
23	Seal	059 103 487
23	Seal	06A 103 483 D
24	seal ring 14 X 18 14 X 18	N 013 814 2
25	sealing plug M 14 X 1,5 M 14 X 1,5	N 016 027 5
26	seal ring 10 X 13,5 10 X 13,5	N 013 811 5
27	sealing plug M 10 X 1 M 10 X 1	N 016 024 1
3	Washer 11,5 X 20 11,5 X 20	056 103 377
4	Socket head bolt	053 103 385
5	Threaded pin M 7 X 45 M 7 X 45	030 103 397 A
5	Threaded pin M 7 X 45 M 7 X 45	027 103 397
6	Hexagon collar nut M 7 M 7	N 902 790 01
7	Bungs 8,9 8,9	035 103 379
8	End cap 28 28	N 011 908 2
9	Bungs 9,5 9,5	034 103 379
