Cylinder headcylinder head cover — Mk3 Golf Engine (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Cylinder block with pistons. oil sump

Generation: Mk3 1997 (RDW) Group: Engine Rebuild step 1 Parts: 33 Primary OEM: 032 103 265 BX, N 012 167 1, 032 103 351 B

Cylinder headcylinder head cover for the Volkswagen Golf Mk3 (1997): factory exploded diagram 103030 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 31 OEM part numbers across 33 catalogued positions including 032 103 265 BX, N 012 167 1 and 032 103 351 B. Parts on this plate carry the engine codes AEE and AEX. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 31 OEM part numbers across 33 numbered positions.

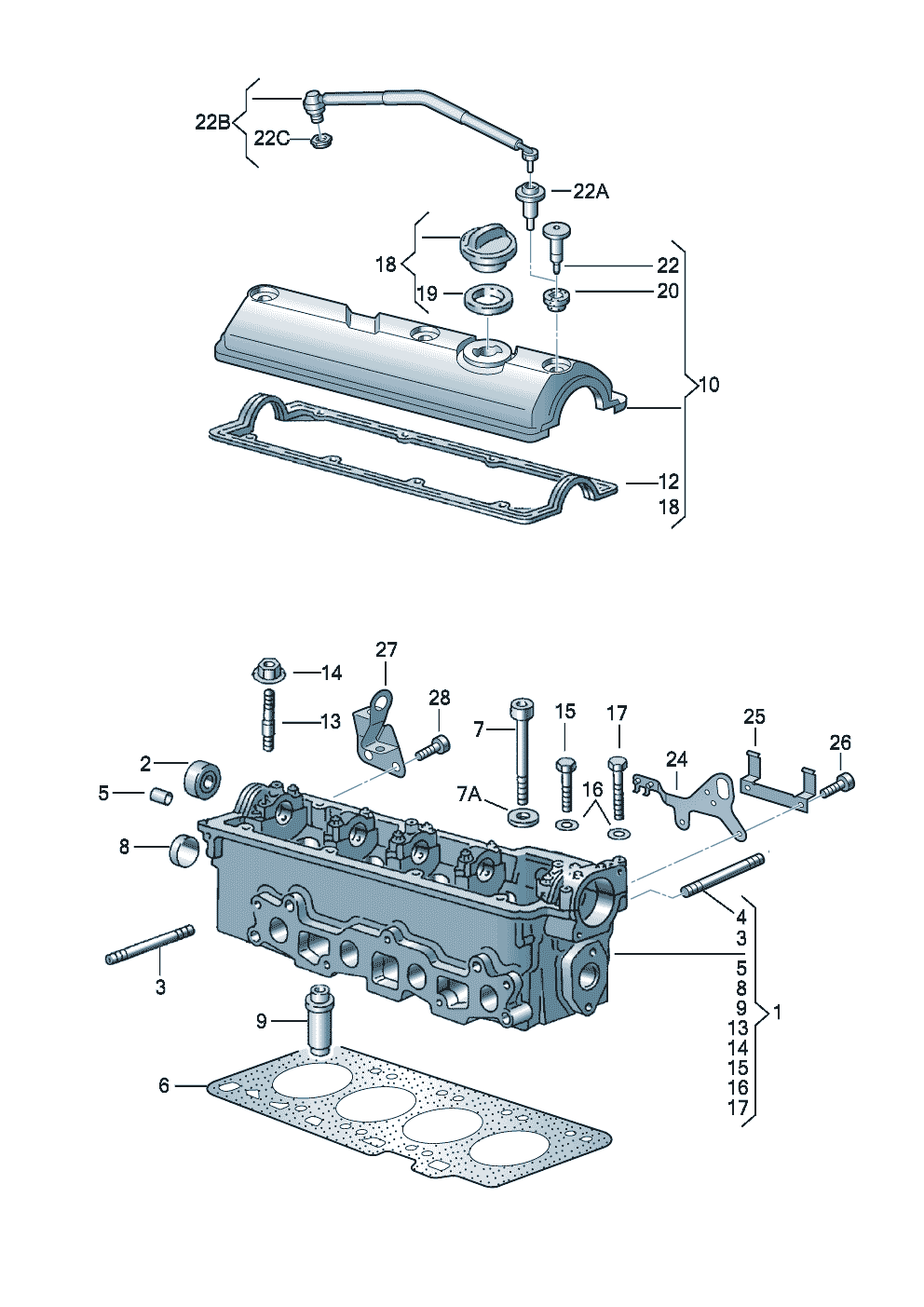

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Cylinder headcylinder head cover 1.4/1.6 ltr. AEX,AEE
1.4/1.6 ltr.
AEEAEX
—
-
Cylinder head with valvesand camshaft AEE
AEE
032 103 265 BX
-
Belleville spring A 20
A 20
 N 012 167 1
(1)
Cylinder head AEE
AEE
032 103 351 B
(10)
cylinder head cover
 030 103 469 N
(12)
Seal
 030 103 483 K
(20)
Sealing plate
 030 103 533 F
(22)
Socket head bolt withhexagon socket head M 6
M 6
 030 103 531 D
(5)
Bungsoversize 8
8
 056 103 379 A
(6)
Cylinder head gasket (metal)
 030 103 383 AH
(7)
Socket head bolt M 11 X 110
M 11 X 110
 032 103 384
(9)
Valve guide 33 MM
33 MM
 032 103 419 A
1
Cylinder head AEX
AEX
030 103 351 Q
1
Cylinder head with valvesand camshaft AEX
AEX
030 103 265 PX
13
Threaded pin M 7 X 45
M 7 X 45
 030 103 397 A
13
Threaded pin
 027 103 397
14
Hexagon nut M 7
M 7
 N 100 453 01
15
Hexagon bolt M 6 X 35
M 6 X 35
 N 010 221 3
16
Washer 6,4 X 12,5 X 1,6
6,4 X 12,5 X 1,6
 N 011 524 23
17
Hexagon bolt M 6 X 45
M 6 X 45
 N 010 349 5
18
End cap
 06A 103 485 F
18
End cap
 026 103 485 A
18
End cap
 06B 103 485 C
19
Seal
 06A 103 483 D
19
Seal
 059 103 487
2
Shaft oil seal 47 X 10
47 X 10
 030 103 085 A
24
Suspension lug
 030 103 388 D
25
Bracket
 030 103 311 D
26
Socket head bolt withhexagon socket head M 8 X 20
M 8 X 20
 N 014 710 7
3
Threaded pin M 8 X 28
M 8 X 28
 N 044 410 4
5
Bungs 7,4
7,4
 056 103 379
7A
Washer Included in position: 7
7
 —
8
End cap 24
24
 N 011 914 2

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk3
Model years
1997
Generation region
RDW
Generation code
184
Engine codes on this plate
AEE, AEX
Variant tags
petrol_8v_base
Factory group
01 Engine
Factory subgroup
103030

Related factory diagrams

Other published engine plates for the Mk3 Golf in this catalogue.

The complete Mk3 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the cylinder headcylinder head cover diagram for the Mk3 Golf?
This diagram lists 31 OEM part numbers for the Mk3 Golf. The first three are 032 103 265 BX, N 012 167 1 and 032 103 351 B.
Which Mk3 Golf years and engines does this diagram cover?
This plate is from the Mk3 Golf 1997 generation (RDW). The parts on it carry the engine codes AEE and AEX.
Where is the complete Mk3 Golf factory parts catalogue?
The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
