Cylinder headcylinder head cover — Mk3 Golf Engine (1995)

Factory title: Volkswagen Golf (1995) - Cylinder block with pistons. oil sump

Generation: Mk3 1995 (RDW) Group: Engine Rebuild step 1 Parts: 50 Primary OEM: 032 198 012, N 012 167 1, 030 198 012 D

Cylinder headcylinder head cover for the Volkswagen Golf Mk3 (1995): factory exploded diagram 103030 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 49 OEM part numbers across 50 catalogued positions including 032 198 012, N 012 167 1 and 030 198 012 D. Parts on this plate carry the engine codes ABD, ABU and AEA. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 49 OEM part numbers across 50 numbered positions.

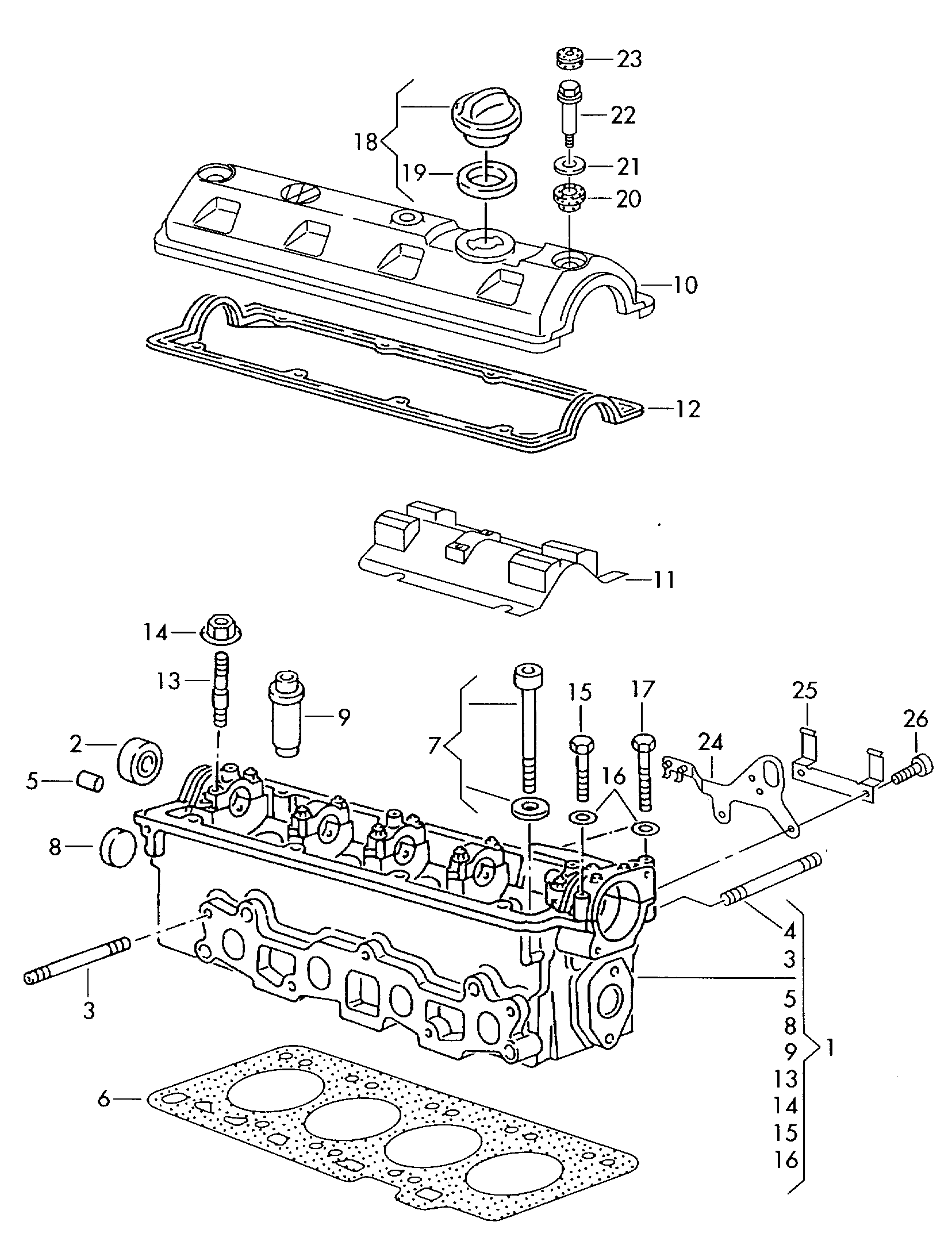

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Cylinder headcylinder head cover 1.4/1.6 ltr. ABD,ABU,AEA 1.4/1.6 ltr. ABDABUAEA	—
-	Gasket set for cylinderhead ABU ABU	032 198 012
-	Belleville spring 20 20	N 012 167 1
-	Gasket set for cylinderhead ABD ABD	030 198 012 D
-	Gasket set for cylinderhead AEA AEA	032 198 012 A
(1)	Cylinder head with valvesand camshaft ABU ABU	032 103 265 X
(1)	Cylinder head AEA AEA	032 103 351 A
(1)	Cylinder head with valvesand camshaft F 1 H-S-181 309>>F 1 H-SB 060 001>>* ABD ABD	030 103 265 NX
(1)	Cylinder head ABU ABU	032 103 351
(1)	Cylinder head with valvesand camshaft AEA AEA	032 103 265 AX
(10)	cylinder head cover F 1 H-S-181 309>>F 1 H-SB 060 001>>* AEAABD	030 103 469 N
(12)	Seal F 1 H-S-181 309>>F 1 H-SB 060 001>>* AEAABD	030 103 483 K
(20)	Sealing plate F 1 H-S-181 309>>F 1 H-SB 060 001>>* AEAABDABD	030 103 533 F
(22)	Socket head bolt withhexagon socket head F 1 H-S-181 309>>F 1 H-SB 060 001>>* M 6 AEAABDABD M 6	030 103 531 D
(4)	Threaded pin M 8 X 25 ABU M 8 X 25 ABU	N 044 408 2
(5)	Bungsoversize 8 8	056 103 379 A
(6)	Cylinder head gasket (metal) AEA AEA	030 103 383 AH
(6)	Cylinder head gasket KLINGER ABU KLINGER ABU	032 103 383 G
(7)	Socket head bolt M 11 X 110 ABU,AEA M 11 X 110 ABUAEA	032 103 384
(9)	Valve guide 33 MM ABU,AEA 33 MM ABUAEA	032 103 419 A
(9)	Valve guide 36,5 MM ABD 36,5 MM ABD	030 103 419 A
1	Cylinder head ABD ABD	030 103 351 P
1	Cylinder head F >> 1 H-S-181 308 F >> 1 H-SB 060 000* ABD ABD	030 103 351 N
10	cylinder head cover F >> 1 H-S-181 308 F >> 1 H-SB 060 000* ABUABD	030 103 469 K
11	oil deflector F >> 1 H-S-181 308 F >> 1 H-SB 060 000* ABUABD	030 103 478 B
12	Seal F >> 1 H-S-181 308 F >> 1 H-SB 060 000* ABUABD	030 103 483 B
13	Threaded pin	027 103 397
13	Threaded pin M 7 X 45 M 7 X 45	030 103 397 A
14	Hexagon nut M 7 M 7	N 100 453 01
15	Hexagon bolt M 6 X 35 M 6 X 35	N 010 221 3
16	Washer 6,4 X 12,5 X 1,6 6,4 X 12,5 X 1,6	N 011 524 23
17	Hexagon bolt M 6 X 45 M 6 X 45	N 010 349 5
18	End cap	06A 103 485 F
18	End cap	026 103 485 A
18	End cap	06B 103 485 C
19	Seal	059 103 487
19	Seal	06A 103 483 D
2	Shaft oil seal 47 X 10 47 X 10	030 103 085 A
20	Sealing plate F >> 1 H-S-181 308 F >> 1 H-SB 060 000* ADUABDABD	030 103 533 C
21	Cup washer F >> 1 H-S-181 308 F >> 1 H-SB 060 000* ABUABDABD	030 903 265
22	bolt, hex. hd. with shoulderand shaft F >> 1 H-S-181 308 F >> 1 H-SB 060 000* use if required: M 6 X 10,5/10 X 22 N 012 167 1 ABUABDABD M 6 X 10,5/10 X 22 N 012 167 1	030 103 531 B
24	Suspension lug AEA AEA	030 103 388 C
25	Bracket	030 103 311 A
26	Socket head bolt withhexagon socket head M 8 X 20 M 8 X 20	N 014 710 7
3	Threaded pin M 8 X 28 ABD,AEA M 8 X 28 ABDAEA	N 044 410 4
4	Threaded pin M 8 X 25 ABD,AEA M 8 X 25 ABDAEA	N 044 408 2
5	Bungs 7,4 7,4	056 103 379
6	Cylinder head gasket ABD ABD	030 103 383 M
7	Socket head bolt with innermultipoint head M 11 X 1,5 X 96 ABD M 11 X 1,5 X 96 ABD	049 103 384 B
8	End cap 24 24	N 011 914 2

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1995
Generation region: RDW
Generation code: 159
Engine codes on this plate: ABD, ABU, AEA
Variant tags: petrol_8v_base
Factory group: 01 Engine
Factory subgroup: 103030
