Which VW part numbers are on the engine gearbox assy skid plate only diagram for the Mk3 Golf?

This diagram lists 8 OEM part numbers for the Mk3 Golf. The first three are 357 018 905 A, 191 018 951 and 191 018 952.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Engine gearbox assy skid plate only — Mk3 Golf Engine (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Engine/gearbox assy skid plate. only for:

Generation: Mk3 1997 (RDW) Group: Engine Rebuild step 1 Parts: 8 Primary OEM: 357 018 905 A, 191 018 951, 191 018 952

Engine gearbox assy skid plate only for the Volkswagen Golf Mk3 (1997): factory exploded diagram 18005 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 8 OEM part numbers including 357 018 905 A, 191 018 951 and 191 018 952. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 8 OEM part numbers across 8 numbered positions.

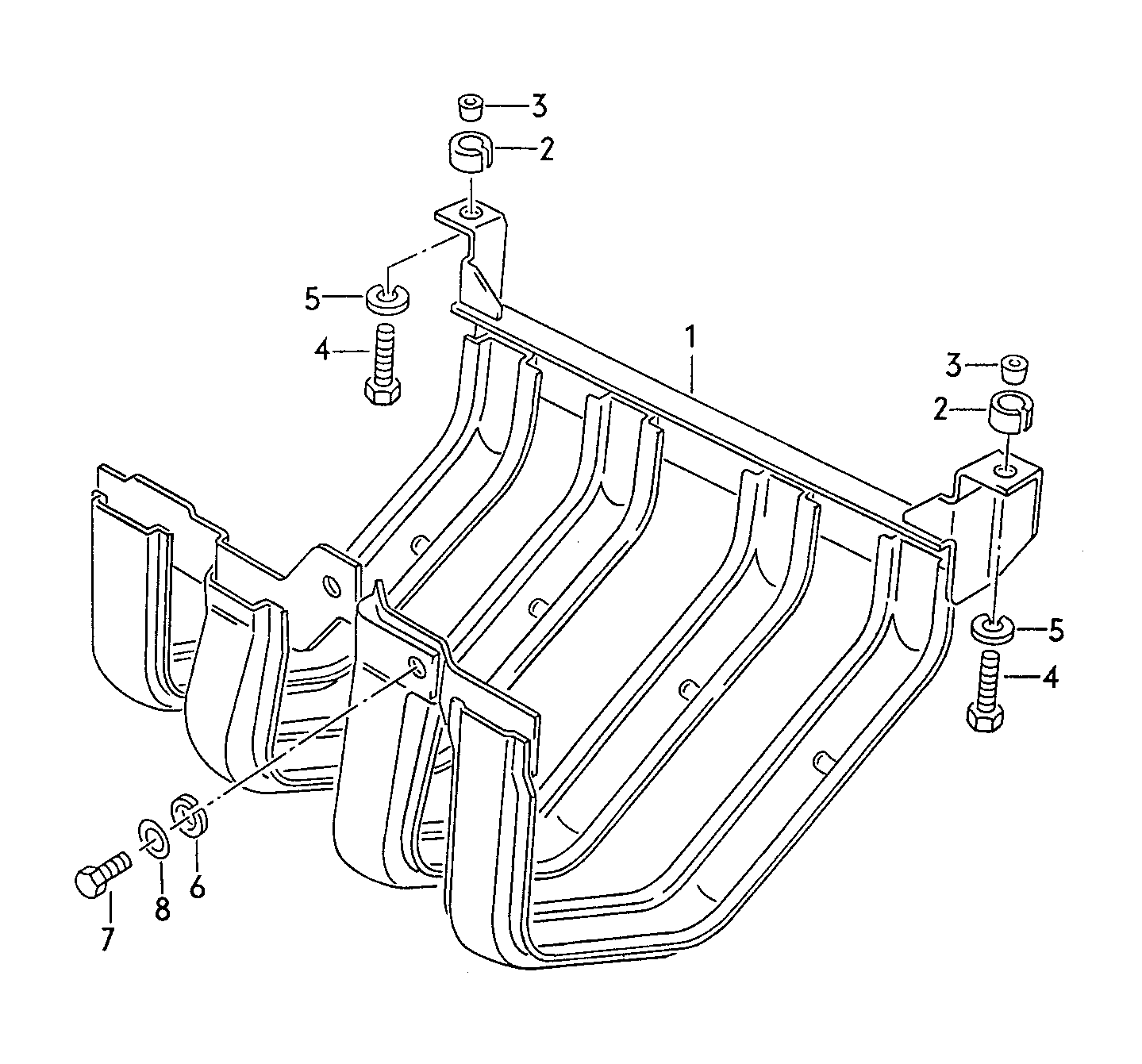

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
1	engine/gearbox assy skid plate	357 018 905 A
2	Spring pin	191 018 951
3	Clamping ring	191 018 952
4	Hexagon bolt M 8 X 25 M 8 X 25	N 010 242 22
5	spring ring 8 8	N 012 038 7
6	spring ring 10 10	N 012 011 3
7	Hexagon bolt M 10 X 25 M 10 X 25	N 010 254 14
8	Washer 10 10	N 011 527 11

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Variant tags: petrol_8v_gti_or_gl
Factory group: 01 Engine
Factory subgroup: 18005
