Fuel rail — Mk3 Golf Engine (1993 - 1996)
Factory title: Volkswagen Golf (1993 - 1996) - Vacuum system

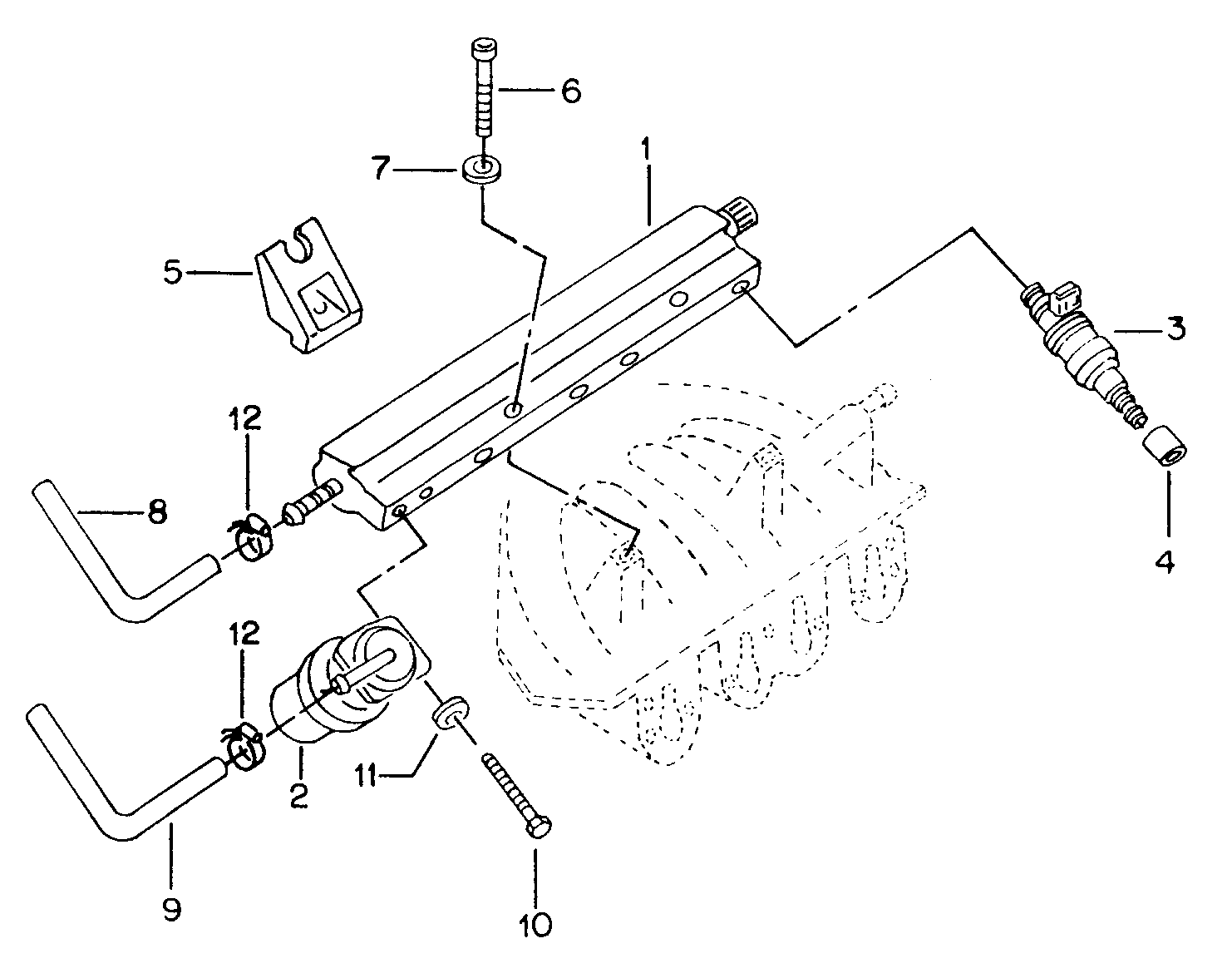

Fuel rail for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 133035 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 22 OEM part numbers across 23 catalogued positions including 1HM 971 766, N 102 793 01 and 037 133 317 AD. Parts on this plate carry the engine code ADD. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 22 OEM part numbers across 23 numbered positions.
| № | Description | Part number |
|---|---|---|
| Fuel rail 1.8 ltr. ADD 1.8 ltr. ADD | — | |
| - | wiring harness forinjectors | 1HM 971 766 |
| - | Spring band clamp 8 X 6 8 X 6 | N 102 793 01 |
| (1) | Fuel rail F 1 H-S-001 474>>* | 037 133 317 AD |
| (1) | Fuel rail "BR." | 037 133 317 AC |
| (1) | Fuel rail "MEX" | 037 133 317 AD |
| (2) | pressure regulator "BR." | 037 133 035 K |
| (3) | Injection valve "BR." | 037 906 031 AF |
| (8) | Return hose "BR." | 037 133 988 AM |
| (9) | Hose "BR." | 037 133 990 AQ |
| 12 | Spring band clamp 14 X 12 14 X 12 | N 906 867 01 |
| 2 | pressure regulator | 1HM 133 035 A |
| 3 | Injection valve "MEX" | BAC 906 031 |
| 3 | Injection valve | BAC 906 031 |
| 4 | seal ring | 1HM 133 555 |
| 5 | bracket for accelerator cable | 1HM 103 573 A |
| 5 | bracket for accelerator cable | 1HM 103 573 A |
| 6 | Socket head bolt withhexagon socket head M 6 X 25 M 6 X 25 | N 014 705 3 |
| 7 | Spring washer 6 6 | N 012 226 5 |
| 8 | Return hose "MEX" | 1HM 133 988 |
| 8 | Return hose | 1HM 133 988 |
| 9 | Hose | 1HM 133 990 |
| 9 | Hose "MEX | 1HM 133 990 |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1993 - 1996
- Generation region
- MEX
- Generation code
- 128
- Engine codes on this plate
- ADD
- Variant tags
- petrol_8v_gti_or_gl
- Factory group
- 01 Engine
- Factory subgroup
- 133035
