Fuel rail — Mk3 Golf Engine (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Vacuum system

Generation: Mk3 1993 - 1996 (MEX) Group: Engine Rebuild step 1 Parts: 33 Primary OEM: 037 133 687 AF, N 020 353 5, 037 133 317 N

Fuel rail for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 133030 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 30 OEM part numbers across 33 catalogued positions including 037 133 687 AF, N 020 353 5 and 037 133 317 N. Parts on this plate carry the engine codes ABA and ADC. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 30 OEM part numbers across 33 numbered positions.

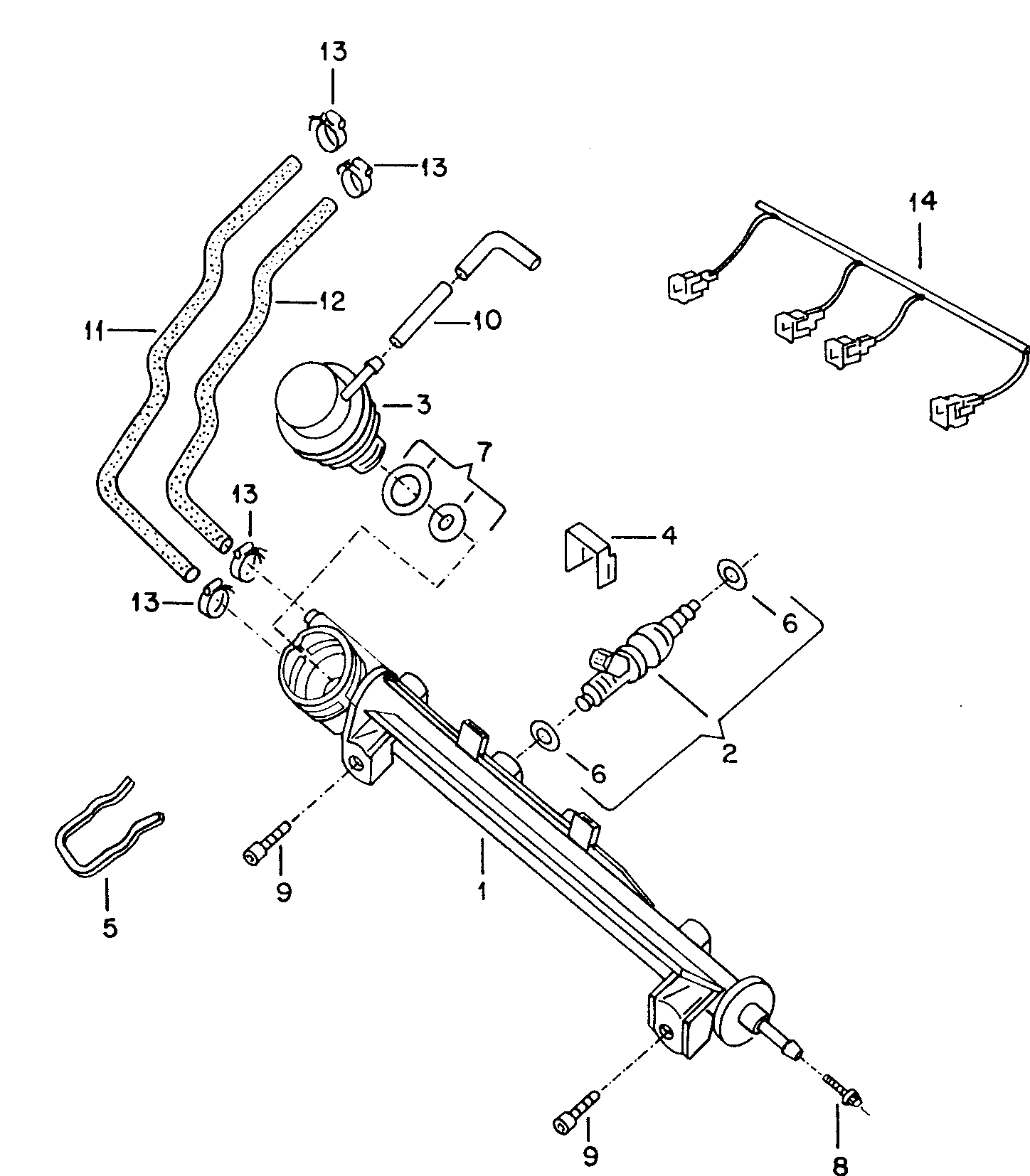

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Fuel rail 2.0 Ltr. ABA,ADC 2.0 Ltr. ABAADC	—
-	Bracket 13/13/7 13/13/7	037 133 687 AF
-	Hose(Bulk stock) 3,5 X 2 3,5 X 2	N 020 353 5
(1)	Fuel rail "MEX"+ABA+ADC	037 133 317 N
(1)	Fuel rail "BR."+ABA	037 133 317 AA
(1)	Fuel rail "MEX"+ABA+ADC	037 133 317 N
(11)	Return hose "MEX"+ABA,ADC ADC	037 133 988 T
(11)	Return hose F 1 H-T-000 001>> "USA"+ABA	037 133 988 AE
(12)	Hose F 1 H-T-000 001>> "USA"+ABA	037 133 990 AH
(12)	Hose "MEX"+ABA,ADC ADC	037 133 990 AC
(2)	Injection valve "BR."+ADC	037 906 031 AE
(2)	Injection valve ADC ADC	037 906 031 P
(3)	pressure regulator "BR."+ABA	037 133 035 J
1	Fuel rail F >> 1 H-N-001 651*	037 133 317 H
1	Fuel rail "USA"+"CDN+ABA	06A 133 317 R
1	Fuel rail "USA"+"CDN+ABA	037 133 317 N
10	shorten to: 115 MM 115 MM	—
11	Return hose F >> 1 H-N-000 651*	037 133 979
12	Hose F >> 1 H-S-999 000 "CDN"+ABA"USA"+ABA	037 133 990 AC
12	Hose F >> 1 H-N-000 651*	037 133 980
13	Clamp 12-22 X 9 X 0,4 12-22 X 9 X 0,4	N 102 582 01
14	see illustration: 971-010 971-010	—
2	Injection valve "BR."+ADC	037 906 031 AJ
2	Injection valve ABA ABA	037 906 031 J
2	Injection valve ADC ADC	037 906 031 R
3	Fuel pressure regulator	037 133 035 C
4	Spring clip	037 133 047
5	Retaining clip	037 133 047 A
6	set of seals f. pressure ctrland inj. valve	030 198 031
7	Gasket set for pressurecontroller	037 198 031
8	hexagon head bolt (combi) M 4 X 8 M 4 X 8	N 904 128 01
9	Socket head bolt withinner multipoint head M 6 X 30 M 6 X 30	N 102 488 04
9	Socket head bolt withinner multipoint head M 6 X 30 M 6 X 30	N 102 488 01
