Intake systemthrottle valve adapter — Mk3 Golf Engine (1993 - 1996)

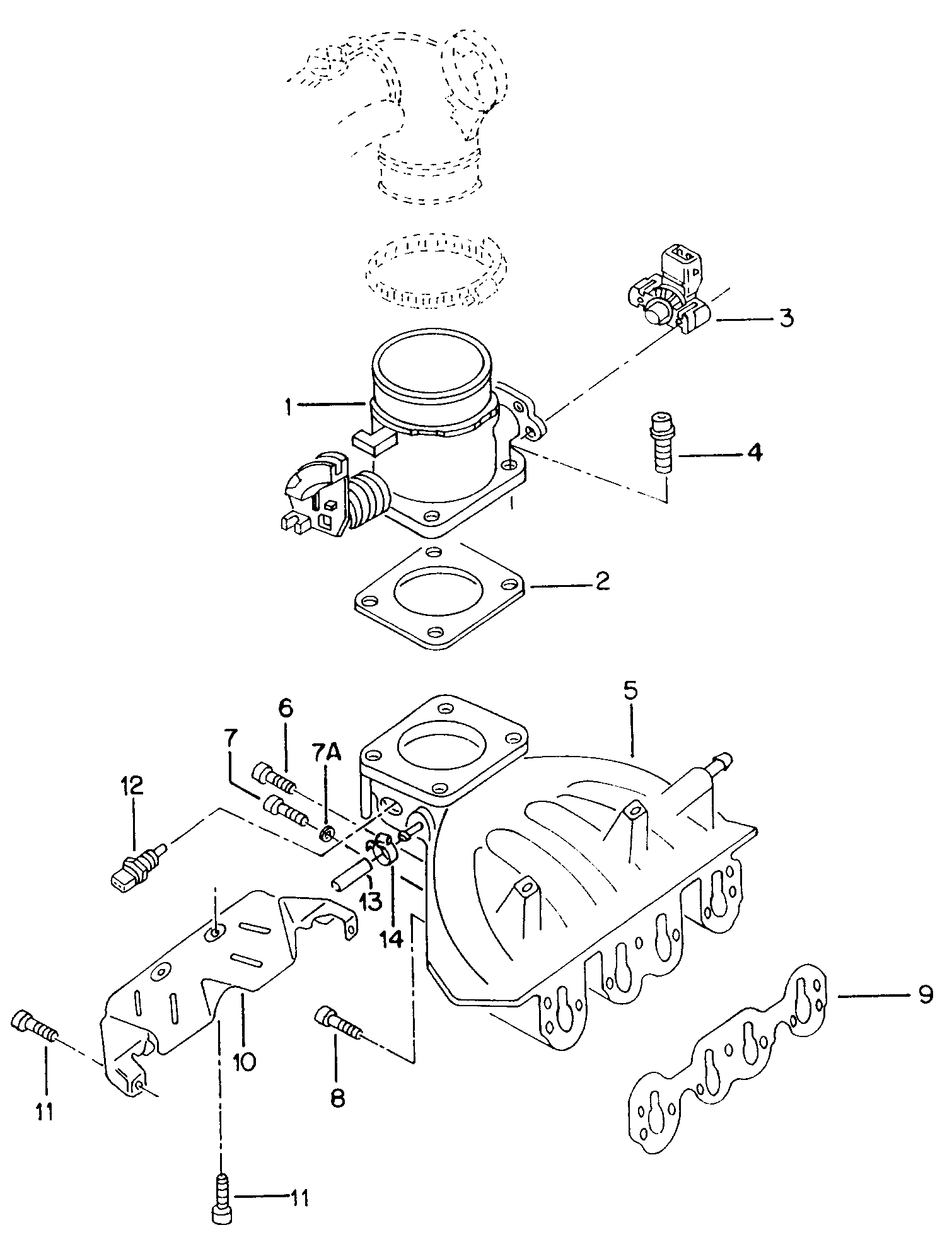

Factory title: Volkswagen Golf (1993 - 1996) - Vacuum system
Intake systemthrottle valve adapter for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 133027 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 26 OEM part numbers across 30 catalogued positions including N 020 139 1, N 020 353 5 and N 903 352 07. Parts on this plate carry the engine code ADD. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 26 OEM part numbers across 30 numbered positions.
| № | Description | Part number |
|---|---|---|
| intake systemthrottle valve adapter 1.8 ltr. ADD 1.8 ltr. ADD | — | |
| - | tube in coils of 5 m'order unit 5' 4 X 1 4 X 1 | N 020 139 1 |
| - | Hose(Bulk stock) shorten to: 3,5 X 290 MM 3,5 X 290 MM | N 020 353 5 |
| - | flat contact 3,5-1 3,5-1 | N 903 352 07 |
| - | Washer 6 X 12 X 1,6 6 X 12 X 1,6 | N 015 276 1 |
| - | O-ring 53,6 X 3,5 53,6 X 3,5 | N 908 143 01 |
| (1) | throttle valve adapter automatic | 1HM 133 061 C |
| (3) | Throttle valve potentiometer also use: N 903 352 07 automatic N 903 352 07 | 037 907 385 M |
| (5) | intake manifold "BR." | 1HM 133 201 |
| 1 | No longer available | — |
| 1 | throttle valve adapter | 1HM 133 061 B |
| 10 | warm air deflector plate | BAC 253 043 |
| 11 | Hexagon bolt M 6 X 12 M 6 X 12 | N 010 212 26 |
| 12 | Temperature sensor | 1HM 906 501 |
| 12+13 | No longer available | — |
| 13 | Connecting hose | 1HM 133 783 A |
| 14 | Clamp 12-22 X 9 X 0,4 12-22 X 9 X 0,4 | N 102 582 01 |
| 2 | Seal | 028 129 748 |
| 3 | Throttle valve potentiometer | 044 907 385 A |
| 4 | Hexagon socket head bolt M 6 X 22 M 6 X 22 | N 107 002 01 |
| 4 | Socket head bolt withinner multipoint head M 6 X 22 M 6 X 22 | N 905 006 01 |
| 5 | No longer available | — |
| 5 | Intake connection | 1HM 133 201 A |
| 6 | Socket head bolt with hexagonsocket head (combination) M 6 X 125 M 6 X 125 | N 101 157 01 |
| 7 | Socket head bolt withhexagon socket head M 8 X 50 M 8 X 50 | N 014 751 3 |
| 7A | Washer A 8,4 X 16 X 1,6 A 8,4 X 16 X 1,6 | N 011 525 20 |
| 7A | Washer A 8,4 X 16 X 1,6 A 8,4 X 16 X 1,6 | N 011 525 13 |
| 8 | Socket head bolt with hexagonsocket head (combination) M 8 X 80-S 4 M 8 X 80-S 4 | N 901 232 01 |
| 8 | Socket head bolt withinner hex round head also use: M 8 X 80 N 011 558 13 M 8 X 80 N 011 558 13 | N 044 714 1 |
| 9 | Seal | 026 129 717 F |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1993 - 1996
- Generation region
- MEX
- Generation code
- 128
- Engine codes on this plate
- ADD
- Variant tags
- petrol_8v_gti_or_gl
- Factory group
- 01 Engine
- Factory subgroup
- 133027
