Intake systemthrottle valve adapter — Mk3 Golf Engine (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Vacuum system

Generation: Mk3 1993 - 1996 (MEX) Group: Engine Rebuild step 1 Parts: 47 Primary OEM: 037 133 063 BT, 037 133 063 BS, 037 133 063 CC

Intake systemthrottle valve adapter for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 133025 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 46 OEM part numbers across 47 catalogued positions including 037 133 063 BT, 037 133 063 BS and 037 133 063 CC. Parts on this plate carry the engine codes ABA and ADC. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 46 OEM part numbers across 47 numbered positions.

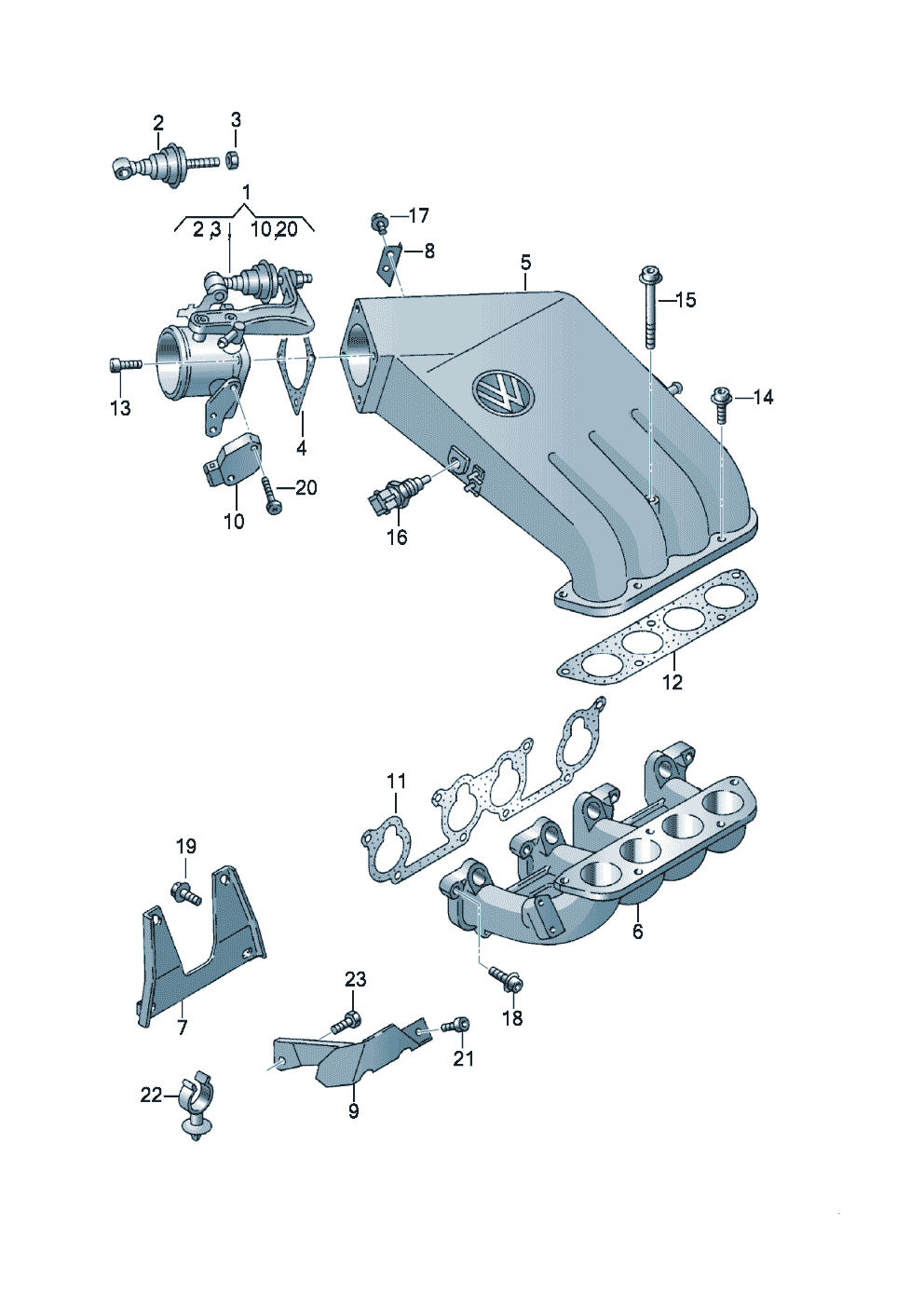

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	intake systemthrottle valve adapter 2.0 Ltr. ABA,ADC 2.0 Ltr. ABAADC	—
(1)	throttle valve adapter F 1 H-P-006 273>> 1 H-R-015 655 F 1 H-R-015 656>> 1 H-R-999 000 also use: 037 907 385 N "MEX"+ABA"BR."+ABA 037 907 385 N	037 133 063 BT
(1)	throttle valve adapter F >> 1 H-S-012 882 also use: 037 907 385 N "USA"+"CDN"+Manualgearbox+ABA 037 907 385 N	037 133 063 BT
(1)	throttle valve adapter F 1 H-S-012 883>> 1 H-S-999 000 F 1 H-S-012 883>>F 1 H-S-000 001>> also use: 037 907 385 Q "USA"+Manualgearbox+ABA"CDN"+Manualgearbox+ABA"BR."+ABA 037 907 385 Q	037 133 063 BT
(1)	throttle valve adapter F 1 H-P-006 273>> 1 H-R-014 324 also use: 037 907 385 P Automatic+ABA 037 907 385 P	037 133 063 BS
(1)	throttle valve adapter F 1 H-P-006 273>>F >> 1 H-S-052 044 also use: also use: 037 907 385 Q 037 907 385 N "MEX"+ABA,ADC"MEX"+ABAautomaticmanualgearbox 037 907 385 Q 037 907 385 N	037 133 063 CC
(1)	throttle valve adapter F >> 1 H-S-052 044 also use: also use: 037 907 385 Q 357 972 753 "USA"+CDN"+ABA 037 907 385 Q 357 972 753	037 133 063 CC
(1)	throttle valve adapter F 1 H-T-000 001>> "USA"+ ABA	037 133 064 F
(1)	throttle valve adapter F 1 H-R-014 325>> ADC ADC	037 133 061 BM
(1)	throttle valve adapter F >> 1 H-P-006 272*	037 133 061 D
(1)	throttle valve adapter F 1 H-P-006 273>> 1 H-R-014 324 F >> 1 H-S-052 044 also use: also use: 037 907 385 P 037 907 385 N ABA,ADCABAautomaticmanualgearbox 037 907 385 P 037 907 385 N ABA	037 133 063 CC
(10)	Throttle valve potentiometer F 1 H-R-014 325>>F 1 H-S-012 883>> 1 H-S-999 000 F 1 H-S-012 883>> ADC"USA"+ABA"CDN"+ABA	037 907 385 Q
(10)	Throttle valve potentiometer F >> 1 H-R-014 324 Automatic+ABA	037 907 385 P
(10)	Throttle valve potentiometer F >> 1 H-R-014 324 also use: 357 972 753 "MEX"+Automatic+ABA 357 972 753	037 907 385 Q
(10)	Throttle valve potentiometer F >> 1 H-S-012 882 also use: 357 972 753 "USA"+"CDN+Automatic+ABA 357 972 753	037 907 385 Q
(13)	Socket head bolt with hexagonsocket head (combination)F 1 H-T-000 001>> M 6 X 40 "USA"+ABA M 6 X 40	N 100 922 01
(20)	fillister hd. bolt F 1 H-R-014 325>>F 1 H-S-012 883>> M 4 X 12 "MEX"+ABA"USA"+"CDN+ABA M 4 X 12	N 014 120 1
(23)	bolt, hexagon headself-locking M 8 X 20 M 8 X 20	N 010 240 41
(5)	intake manifold - upper part F 1 H-T-000 001>> "USA"+ABA	037 133 203 T
(5)	intake manifold - upper part F 1 H-R-011 804>> ABA,ADC ABAADC	037 133 201 AQ
(6)	intake manifold - lower part F 1 H-T-000 001>>F 1 H-T-107 410>>F 1 H-T-006 500>>* "USA"+ABA"CDN"+ABAADC	037 133 206 C
(8)	abutment F 1 H-T-000 001>> "USA"+ABA	037 133 243 Q
10	Throttle valve potentiometer F >> 1 H-R-014 324 F >> 1 H-S-012 882 "MEX"+ABA"USA"+"CDN"+Manualgearbox+ABA	037 907 385 N
11	Seal	037 129 717 C
12	Seal	037 129 717 D
13	Socket head bolt with hexagonsocket head (combination)F >> 1 H-S-999 000 M 6 X 22 "CDN"+"MEX"ABA,ADC"USA"+ABA M 6 X 22	N 101 725 01
13	oval head countersunk boltwith multi-point socket head M 6 X 40 "USA"+ABA M 6 X 40	N 105 821 03
14	Socket head bolt withinner multipoint head M 8 X 26 M 8 X 26	N 102 260 01
15	Socket head bolt withinner multipoint head M 8 X 75 M 8 X 75	N 106 664 01
16	Temperature sensor	046 905 379
17	Socket head bolt withhexagon socket head M 6 X 15 M 6 X 15	N 014 702 10
17	Socket head bolt withhexagon socket head M 6 X 15 M 6 X 15	N 014 702 13
18	Socket head bolt withinner multipoint head M 8 X 26 M 8 X 26	N 102 260 01
19	Socket head bolt withinner multipoint head M 8 X 22 M 8 X 22	N 102 394 02
2	dashpot F 1 H-P-006 273>>*F 1 H-P-006 273>> 1 H-S-999 000 "CDN"+"MEX"+Manualgearbox+ABA.ADC"USA"Manualgearbox+ABA	034 133 283
20	fillister hd. bolt 4 M 4 X 30 X 22 "MEX"+ABA,ADC"USA"+"CDN"+ABA M 4 X 30 X 22	N 044 120 2
20	fillister hd. bolt F >> 1 H-R-014 324 F >> 1 H-S-012 882 BM 4 X 30 X 22-LD "MEX"+ABA,ADC"USA"+"CDN"+ABA BM 4 X 30 X 22-LD	N 044 120 1
21	Socket head bolt withhexagon socket head M 6 X 15 M 6 X 15	N 014 702 10
21	Socket head bolt withhexagon socket head M 6 X 15 M 6 X 15	N 014 702 13
22	Bracket F >> 1 H-S-999 000	037 103 549
23	bolt, hexagon headself-locking M 8 X 20 M 8 X 20	N 010 240 22
3	Hexagon nut F 1 H-P-006 273>>*F 1 H-P-006 273>> 1 H-S-999 000 "CDN"+"MEX"+Manualgearbox+ABA,ADC"USA"+Manualgearbox+ABA	049 129 157
4	Seal	028 129 748
5	intake manifold - upper part F >> 1 H-R-061 339 F >> 1 H-R-011 803 "USA"+"CDN"+ABA"MEX"+ABA	037 133 201 AQ
7	Securing plate	037 133 229 D
8	abutment F >> 1 H-S-999 000 "MEX"+"CDN+ABA"USA"+ABA	037 133 243 G
9	Protective plate	037 133 941
