Which VW part numbers are on the oil filter oil filter bracket 1 6 2 0 litres 4 cylinder diagram for the Mk3 Golf?

This diagram lists 39 OEM part numbers for the Mk3 Golf. The first three are D 000 600 A2, N 012 229 3 and N 012 241 10.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The parts on it carry the engine codes 1Y, 1Z, AAM, AAZ, ABF, ACC, ADZ and AEK.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Oil filter oil filter bracket 1 6 2 0 litres 4 cylinder — Mk3 Golf Engine (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Oil pump. oil filter

Generation: Mk3 1997 (RDW) Group: Engine Rebuild step 1 Parts: 41 Primary OEM: D 000 600 A2, N 012 229 3, N 012 241 10

Oil filter oil filter bracket 1 6 2 0 litres 4 cylinder for the Volkswagen Golf Mk3 (1997): factory exploded diagram 115050 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 39 OEM part numbers across 41 catalogued positions including D 000 600 A2, N 012 229 3 and N 012 241 10. Parts on this plate carry the engine codes 1Y, 1Z, AAM, AAZ, ABF, ACC, ADZ and AEK. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 39 OEM part numbers across 41 numbered positions.

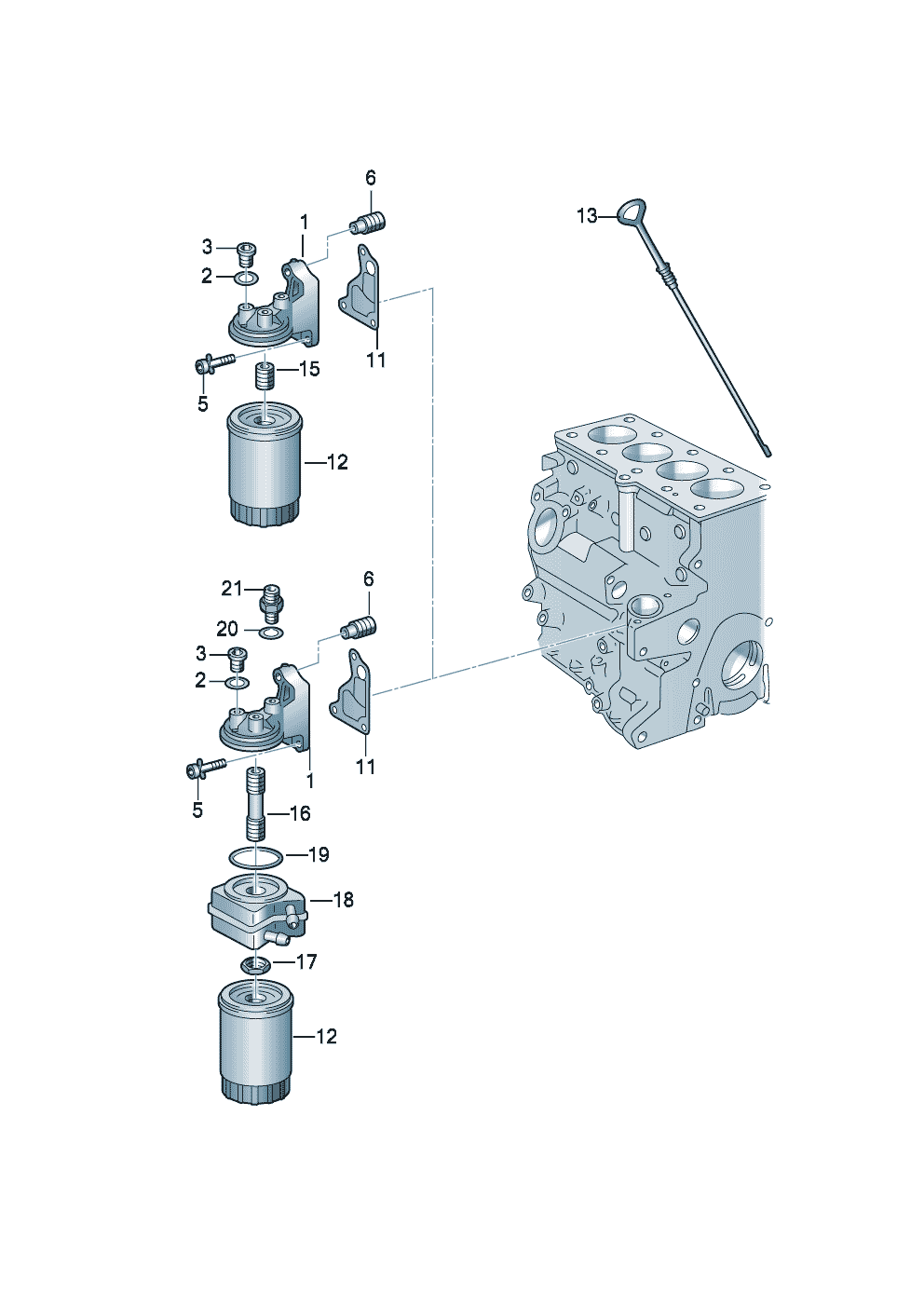

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	oil filter Oil filter bracket 1.6-2.0 litres AAM,ADZ,AGG,ABF,ACC,AEP,AEK,AFT,AKR,AKS,Diesel eng.+1 Y,AAZ,1 Z,AEY,AFN,AHU,ALE 1.6-2.0 litres 1ZAAMAAZABFACCADZAEKAEPAEYAFNAFTAGGAHUAKRAKSALE	—
	oil filter Oil filter bracket 4-cylinder	—
-	Locking fluid	D 000 600 A2
-	Spring washer 8 X 15 X 0,5 1 Y,AAZ 8 X 15 X 0,5 1YAAZ	N 012 229 3
-	Spring washer B 8 X 15 1 Y,AAZ B 8 X 15 1YAAZ	N 012 241 10
(1)	Oil filter bracket AAZ,1 Z,AFN,AHU,ALE 1ZAAZAFNAHUALE	028 115 417
(12)	oil filter AFN AFN	028 115 561 B
(12)	oil filter 1 Y,AAZ,AEY 1YAAZAEY	068 115 561 B
(12)	oil filter 1 Z,AHU,ALE 1ZAHUALE	068 115 561 E
(13)	Oil dipstick 1 Y,AAZ,1 Z,AEY,AFN,AHU,ALE 1Y1ZAAZAEYAFNAHUALE	028 115 611 C
(13)	Oil dipstick ABF ABF	051 115 611 B
(16)	threaded union AFN AFN	028 115 721 B
(18)	Oil cooler AGG,ABF,1 Y,AAZ,1 Z,AEY,AEP,AHU,AKR,ALE 1Y1ZAAZABFAEPAEYAGGAHUAKRALE	068 117 021 B
(18)	Oil cooler AFN AFN	028 117 021 C
(18)	Oil cooler AGG,ABF,1 Y,AAZ,1 Z,AEY,AHU,AEP,AKR,ALE 1Y1ZAAZABFAEPAEYAGGAHUAKRALE	068 117 021 BX
(18)	Oil cooler AFN AFN	028 117 021 E
(19)	Seal 59 X 5 AGG,ABF,1 Y,AAZ,1 Z,AEY,AEP,AHU,ALE,AKR 59 X 5 1Y1ZAAZABFAEPAEYAGGAHUAKRALE	038 117 070 A
(19)	O-ring 59 X 5 AGG,ABF,1 Y,AAZ,1 Z,AEY,AEP,AHU,ALE,AKR 59 X 5 1Y1ZAAZABFAEPAEYAGGAHUAKRALE	021 117 070 A
(19)	gasket for oil cooler only to be used for: 73028 117 021 E AFN 73028 117 021 E AFN	028 117 070 B
(5)	Socket head bolt withhexagon socket head M 8 X 40 1 Y,AAZ M 8 X 40 1YAAZ	N 014 717 2
(5)	Socket head bolt with hexagonsocket head (combination) M 8 X 40 AAM,ADZ,AGG,ABF,AEP,AEY,1 Z,AFN,AHU,ALE,AKR M 8 X 40 1ZAAMABFADZAEPAEYAFNAGGAHUAKRALE	N 904 254 01
(5)	Socket head bolt M 8 X 37 ACC M 8 X 37 ACC	N 903 396 03
(5)	Socket head bolt M 8 X 37 ACC M 8 X 37 ACC	N 903 396 01
(6)	choke M 12 X 1,5 1 Y,AAZ,1 Z,AEY,AFN,AHU,ALE M 12 X 1,5 1Y1ZAAZAEYAFNAHUALE	028 115 436
1	Oil filter bracket AAM,ADZ,AGG,ABF,ACC,AEP,1 Y,AEK,AFT,AEY,AKR,AKS 1YAAMABFACCADZAEKAEPAEYAFTAGGAKRAKS	053 115 417 A
11	Seal	028 115 441 C
12	oil filter AAM,ADZ,AGG,ABF,ACC,AEP,AEK,AFT,AKR,AKS AAMABFACCADZAEKAEPAFTAGGAKRAKS	034 115 561 A
12	oil filter AAM,ADZ,AGG,ABF,ACC,AEP,AEK,AFT,AKR,AKS AAMABFACCADZAEKAEPAFTAGGAKRAKS	06A 115 561 B
13	Oil dipstick AAM,ADZ,AGG,ACC,AEP,AEK,AFT,AKR,AKS AAMACCADZAEKAEPAFTAGGAKRAKS	027 115 611 C
15	threaded union AAM,ADZ,ACC,AEK,AFT,AKS AAMACCADZAEKAFTAKS	059 115 721
16	threaded union AHU,ABF,1 Y,AAZ,1 Z,AEY,AEP,AGG,AKR 1Y1ZAAZABFAEPAEYAGGAHUAKR	028 115 721
17	Hexagon nut ABF,1 Y,AEP,AAZ,1 Z,AHU,ALE 1Y1ZAAZABFAEPAHUALE	068 115 723
18	Oil cooler automatic/Air cond.+AAZ	028 117 021 D
18	Oil cooler automatic/Air cond.+AAZ	028 117 021
19	seal ring 72,2 X 3,2 AFN;automatic/Air cond.+AAZ 72,2 X 3,2	028 117 070
19	O-ring 59 X 5 AGG,ABF,1 Y,AAZ,1 Z,AEY,AEP,AHU 59 X 5 1Y1ZAAZABFAEPAEYAGGAHU	N 901 814 02
2	seal ring A 10 X 14 AAM,ADZ,AGG,ABF,ACC,AEP,1 Z,AEK,AFT,AHU,AFN A 10 X 14 1ZAAMABFACCADZAEKAEPAFNAFTAGGAHU	N 013 806 4
2	seal ring 10 X 13,5 AAM,ADZ,AGG,ABF,ACC,AEP,1 Z,AEK,AFT,AHU,AFN,ALE,AKS,AKR 10 X 13,5 1ZAAMABFACCADZAEKAEPAFNAFTAGGAHUAKRAKSALE	N 013 811 5
3	sealing plug M 10 X 1 AAM,ADZ,AGG,ABF,AEP,AEY,1 Z,AEK,AFT,AFN,AHU,ALE,AKR,AKS M 10 X 1 1ZAAMABFADZAEKAEPAEYAFNAFTAGGAHUAKRAKSALE	N 016 024 1
5	Socket head bolt with hexagonsocket head (combination) M 8 X 25 M 8 X 25	N 090 315 1
6	Valve also use: D 000 600 A 2 AAM,ADZ,AGG,ABF,ACC,AEP,AEK,AFT,AKR,AKS D 000 600 A 2 AAMABFACCADZAEKAEPAFTAGGAKRAKS	077 103 175 B

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: 1Y, 1Z, AAM, AAZ, ABF, ACC, ADZ, AEK
Variant tags: diesel, petrol_8v_gti_or_gl
Factory group: 01 Engine
Factory subgroup: 115050
