Which VW part numbers are on the oil pumpoil filter diagram for the Mk3 Golf?

This diagram lists 42 OEM part numbers for the Mk3 Golf. The first three are N 011 524 23, 021 115 403 D and 021 115 433 B.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The parts on it carry the engine code AAA.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Oil pumpoil filter — Mk3 Golf Engine (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Oil pump. oil filter

Generation: Mk3 1997 (RDW) Group: Engine Rebuild step 1 Parts: 44 Primary OEM: N 011 524 23, 021 115 403 D, 021 115 433 B

Oil pumpoil filter for the Volkswagen Golf Mk3 (1997): factory exploded diagram 115040 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 42 OEM part numbers across 44 catalogued positions including N 011 524 23, 021 115 403 D and 021 115 433 B. Parts on this plate carry the engine code AAA. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 42 OEM part numbers across 44 numbered positions.

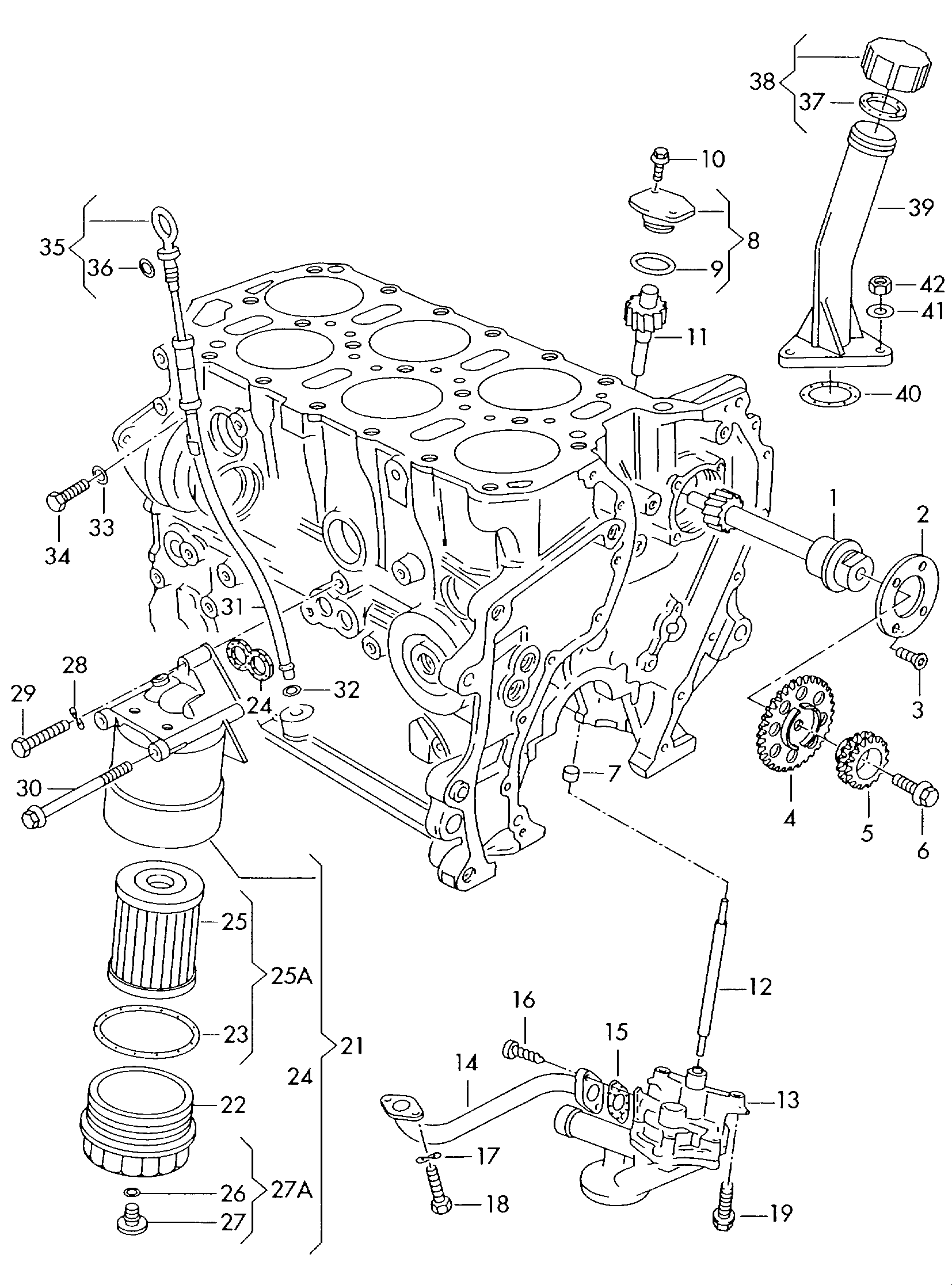

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	oil pumpoil filter 6-cylinder	—
	oil pumpoil filter 2.8 Ltr. AAA 2.8 Ltr. AAA	—
-	Washer 6,4 X 12,5 X 1,6 6,4 X 12,5 X 1,6	N 011 524 23
(21)	oil filter with flange	021 115 403 D
(22)	Filter housing	021 115 433 B
(25A)	filter element with gasket	021 115 562 A
(31)	tube for oil dipstick	021 115 629 E
(33)	Spring washer 6 6	N 012 226 5
(34)	Hexagon bolt M 6 X 15 M 6 X 15	N 010 215 27
(35)	Oil dipstick	021 115 607
(5)	Chain sprocket M AAA 217 001>>* Z=18 Z=18	021 109 570 A
(5)	Chain sprocket M AAA 217 001>>* Z=18 Z=18	066 109 570
1	Intermediate shaft Z=17 Z=17	021 115 017
10	Hexagon bolt also use: M 6 X 16 N 011 524 23 M 6 X 16 N 011 524 23	N 010 287 3
11	shaft with gear	021 115 116 A
12	Follower	021 115 279
13	oil pump	021 115 105 B
13	oil pump	021 115 103
14	suction line	021 115 203
14	suction line	021 115 251 A
16	Socket head bolt with hexagonsocket head (combination) M 6 X 20 M 6 X 20	N 901 224 01
16	Socket head bolt with hexagonsocket head (combination) M 6 X 20 M 6 X 20	N 102 278 03
17	Spring washer 6 6	N 012 226 5
18	Hexagon bolt M 6 X 15 M 6 X 15	N 010 215 27
19	Socket head bolt with hexagonsocket head (combination) M 8 X 30 M 8 X 30	N 903 559 02
2	guide ring	021 115 033
24	Seal	021 115 446 A
26	O-ring 11 X 2,5 11 X 2,5	N 904 054 02
27A	Seal bolt with sealingring	021 115 434
28	Spring washer 8 X 15 X 0,5 8 X 15 X 0,5	N 012 229 3
28	Spring washer 8 X 15 8 X 15	N 012 241 10
29	Hexagon bolt M 8 X 42 M 8 X 42	N 010 353 3
3	countersunk bolt M 6 X 10 M 6 X 10	N 033 166 3
30	hexagon head bolt (combi) M 8 X 105 M 8 X 105	N 100 362 02
30	hexagon head bolt (combi) M 8 X 105 M 8 X 105	N 100 362 01
32	O-ring 9,5 X 2,5 9,5 X 2,5	N 900 672 02
36	seal ring 5 X 1,9 5 X 1,9	034 115 625 B
4	Chain sprocket Z=32 Z=32	021 109 569
5	Chain sprocket M >> AAA 217 000 Z=2 X 18 Z=2 X 18	021 109 570
6	Hexagon bolt M 12 X 1,50 X 40 M 12 X 1,50 X 40	N 102 038 03
6	Hexagon bolt M 12 X 1,5 X 40 M 12 X 1,5 X 40	N 102 038 01
7	bush	021 115 112 B
8	Cover	021 115 185 B
9	O-ring 36,2 X 2,62 36,2 X 2,62	N 905 315 01

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: AAA
Factory group: 01 Engine
Factory subgroup: 115040
