Oil pumpoil filter — Mk3 Golf Engine (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Oil pump. oil filter

Generation: Mk3 1997 (RDW) Group: Engine Rebuild step 1 Parts: 22 Primary OEM: 032 115 105 G, 030 115 561 AB, 030 115 561 E

Oil pumpoil filter for the Volkswagen Golf Mk3 (1997): factory exploded diagram 115010 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 20 OEM part numbers across 22 catalogued positions including 032 115 105 G, 030 115 561 AB and 030 115 561 E. Parts on this plate carry the engine codes AEE and AEX. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 20 OEM part numbers across 22 numbered positions.

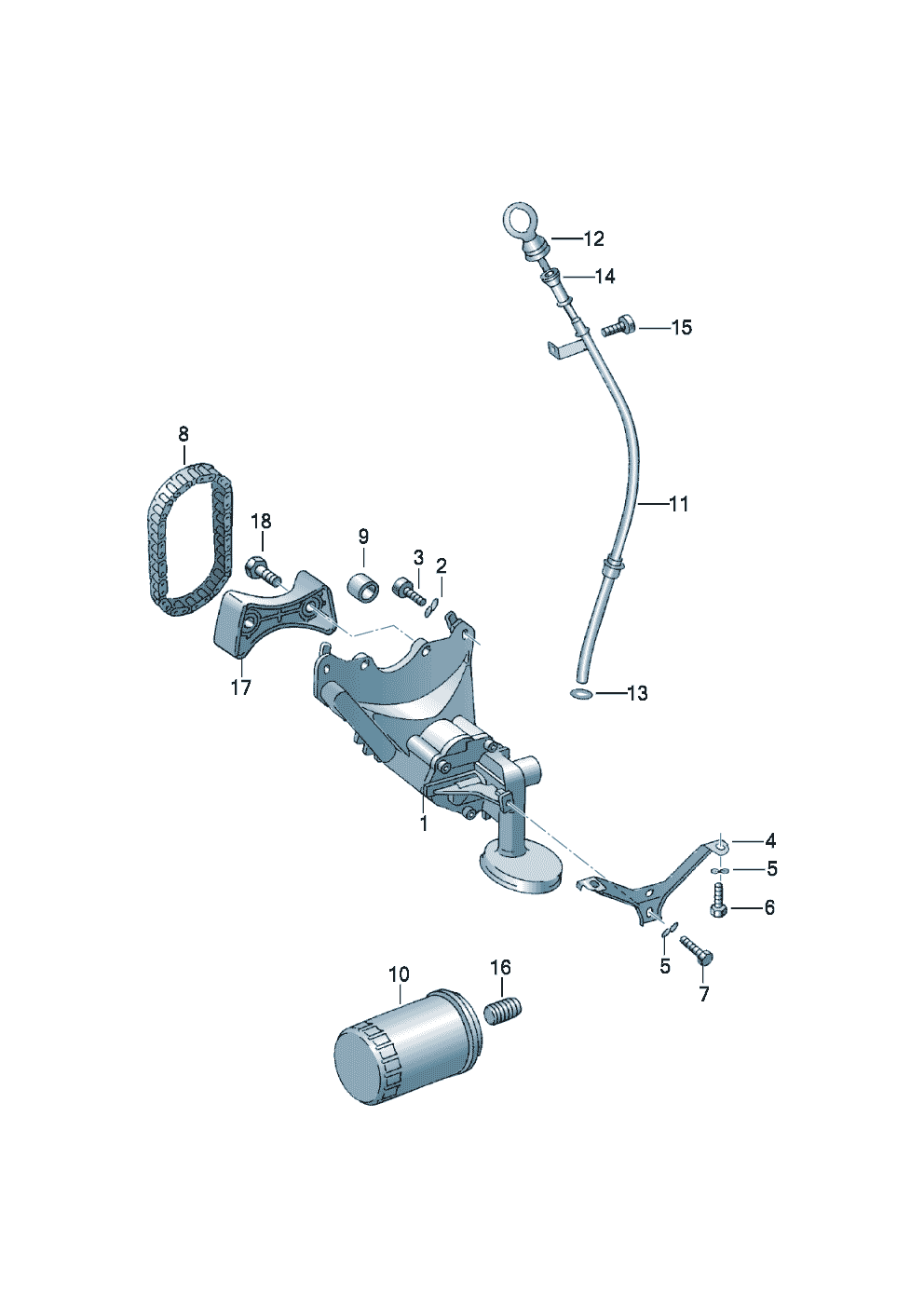

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
oil pumpoil filter F >> 1 H-WD 119 000*F >> 1 H-WW 151 000* 4-cylinder
 —
oil pumpoil filter F >> 1 H-W-119 000*F >> 1 H-WW 151 000* 1.4/1.6 ltr. AEX,AEE
1.4/1.6 ltr.
AEEAEX
—
(1)
oil pump
 032 115 105 G
(10)
oil filter
 030 115 561 AB
(10)
oil filter
 030 115 561 E
(12)
Oil dipstick
 032 115 611 D
(14)
Guide
 030 115 636 A
(4)
Support
 032 115 267 A
11
tube for oil dipstick
 030 115 629 Q
13
O-ring 7,3 X 2,4
7,3 X 2,4
 N 900 322 03
15
Socket head bolt withhexagon socket head M 8 X 20
M 8 X 20
 N 014 710 7
16
threaded union
 059 115 721
2
Spring washer B 8 X 15
B 8 X 15
 N 012 241 10
2
Spring washer 8 X 15 X 0,5
8 X 15 X 0,5
 N 012 229 3
3
Hexagon bolt also use: M 8 X 18 N 011 558 11 N 012 241 10
M 8 X 18 N 011 558 11 N 012 241 10
 111 821 145
3
Hexagon bolt also use: M 8 X 18 N 011 558 11 N 012 229 3
M 8 X 18 N 011 558 11 N 012 229 3
 N 010 239 11
5
Spring washer 6
6
 N 012 226 5
6
Hexagon bolt M 6 X 10
M 6 X 10
 N 905 293 01
6
Hexagon bolt M 6 X 10 K
M 6 X 10 K
 N 010 210 7
7
Hexagon bolt M 6 X 15
M 6 X 15
 N 010 215 27
8
Drive chain
 030 115 125 A
9
bush
 030 115 112 B

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk3
Model years
1997
Generation region
RDW
Generation code
184
Engine codes on this plate
AEE, AEX
Variant tags
petrol_8v_base
Factory group
01 Engine
Factory subgroup
115010

Related factory diagrams

Other published engine plates for the Mk3 Golf in this catalogue.

The complete Mk3 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the oil pumpoil filter diagram for the Mk3 Golf?
This diagram lists 20 OEM part numbers for the Mk3 Golf. The first three are 032 115 105 G, 030 115 561 AB and 030 115 561 E.
Which Mk3 Golf years and engines does this diagram cover?
This plate is from the Mk3 Golf 1997 generation (RDW). The parts on it carry the engine codes AEE and AEX.
