Repair kit toothed belt tensioning roller — Mk3 Golf Engine (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Repair kit for toothed belt with tensioning roller

Generation: Mk3 1997 (RDW) Group: Engine Rebuild step 1 Parts: 8 Primary OEM: N 902 964 01, 030 198 119 A, 032 198 119

Repair kit toothed belt tensioning roller for the Volkswagen Golf Mk3 (1997): factory exploded diagram 109000 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 8 OEM part numbers including N 902 964 01, 030 198 119 A and 032 198 119. Parts on this plate carry the engine codes 1Y, 1Z, AAM, AAZ, ACC, ADZ, AEE and AEK. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 8 OEM part numbers across 8 numbered positions.

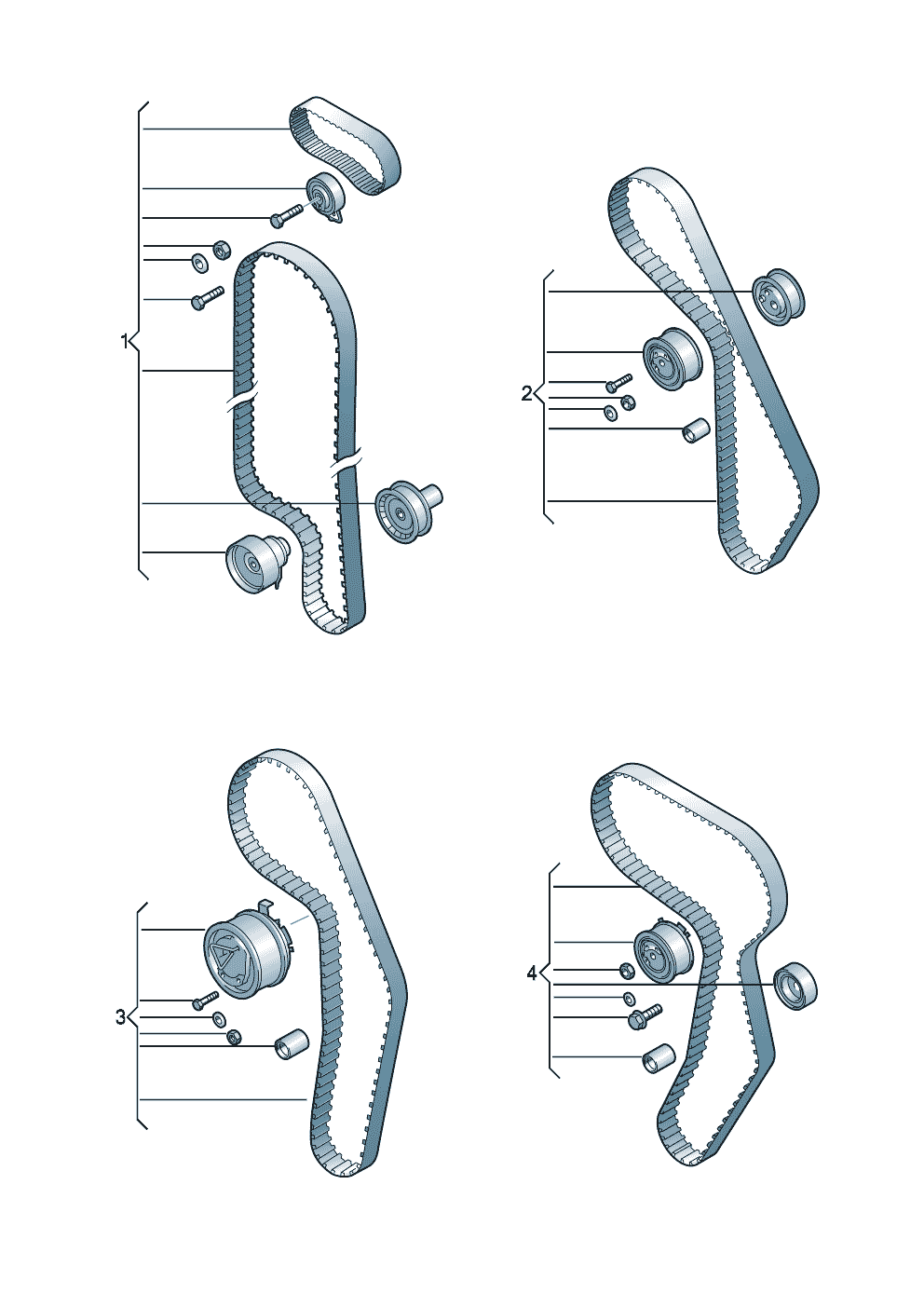

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Threaded pin M 10 X 40 M 10 X 40	N 902 964 01
(2)	repair kit for toothed beltwith tensioning roller AEX,APQ AEXAPQ	030 198 119 A
(2)	repair kit for toothed beltwith tensioning roller AEE AEE	032 198 119
(2)	repair kit for toothed beltwith tensioning roller AEX AEX	030 198 119
(2)	repair kit for toothed beltwith tensioning roller AAM,AEK,AFT,AKS,ADZ,ACC AAMACCADZAEKAFTAKS	051 198 119
(4)	repair kit for toothed beltwith tensioning roller AEY,1 Z,AFNAHU,ALE 1ZAEYALE	028 198 119 C
2	repair kit for toothed beltwith tensioning roller use if required: N 902 964 01 AEP,AGG,AKR N 902 964 01 AEPAGGAKR	037 198 119
4	repair kit for toothed beltwith tensioning roller 1 Y,AAZ 1YAAZ	028 198 119 A
