Securing parts engine — Mk3 Golf Engine (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Securing parts for engine

Generation: Mk3 1997 (RDW) Group: Engine Rebuild step 1 Parts: 93 Primary OEM: N 010 215 27, 1H0 199 200 N, 1H0 199 273 A

Securing parts engine for the Volkswagen Golf Mk3 (1997): factory exploded diagram 199020 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 92 OEM part numbers across 93 catalogued positions including N 010 215 27, 1H0 199 200 N and 1H0 199 273 A. Parts on this plate carry the engine codes 1Y, 1Z, AAA, AAM, AAZ, ABF, ACC and ADZ. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 92 OEM part numbers across 93 numbered positions.

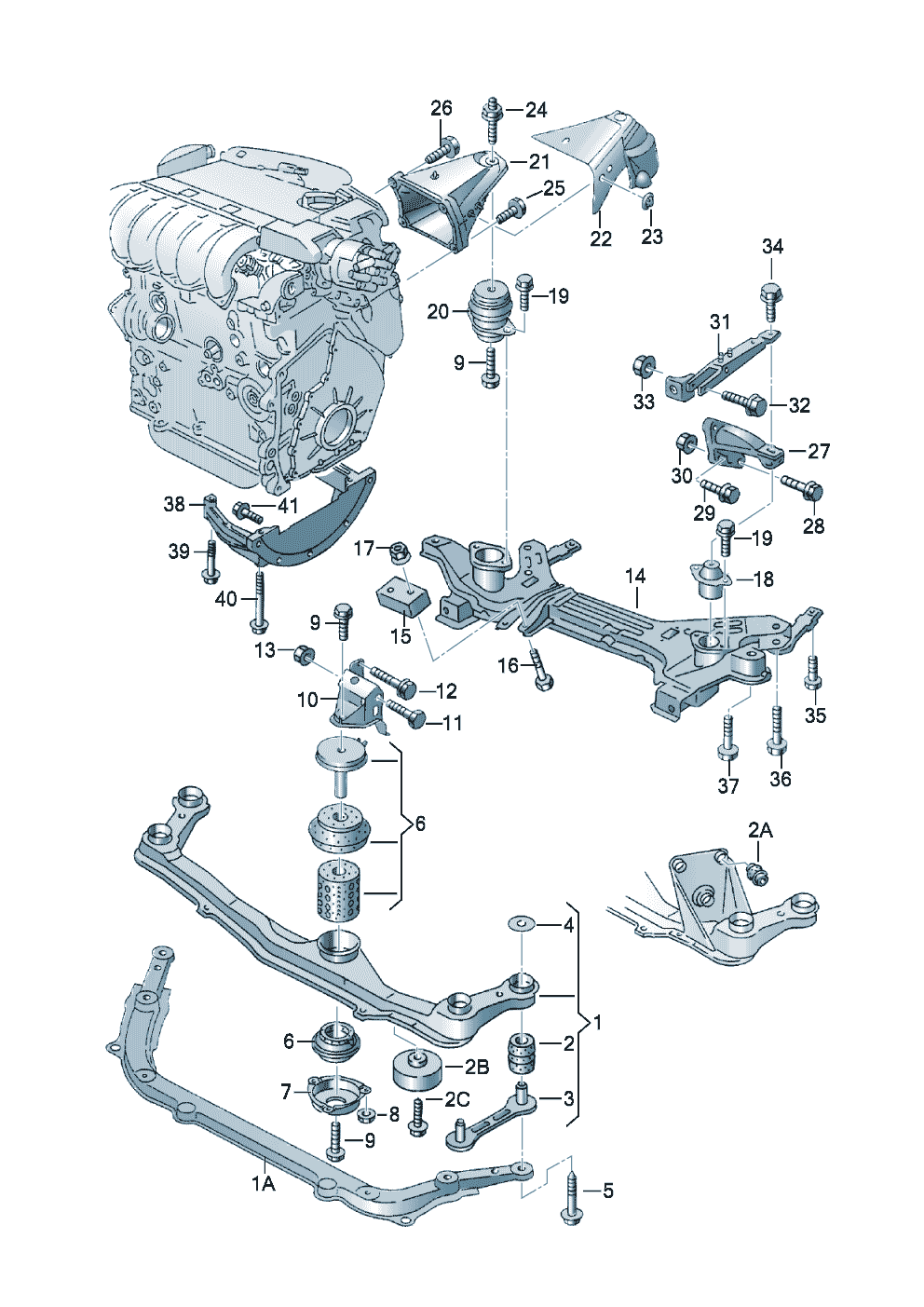

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	securing parts for engine AEX,AEE,AFT,AAM,ADZ,ACC,AGG,AEP,ABF,AAA,AKS,AKR,APQ;Diesel eng.+1 Y,AAZ,1 Z,AEY,AFN,AHU,ALE 1ZAAAAAMAAZABFACCADZAEEAEPAEXAEYAFNAFTAGGAHUAKRAKSALE	—
-	Hexagon bolt M 6 X 15 Manualgearbox+ABF M 6 X 15	N 010 215 27
(1)	engine carrier with rubbermounting AAA AAA	1H0 199 200 N
(10)	Console Manualgearbox AAM,1 Y,AAZ,AEY,AFT,ACC,ADZ,AEP,AGG,AKS,AKR 1YAAZACCADZAEPAEYAFTAGGAKRAKS	1H0 199 273 A
(10)	Console Automatic+AAM,1 Z,AAZ,AGG,ADZ,AEP,AFT,AFN,AHU,AKS,AKR,ALE 1ZAAZADZAEPAFNAFTAGGAHUAKRAKSALE	1H0 199 273 C
(10)	Console Manualgearbox ABF,1 Z,AFN,AHU,ALE 1ZAFNAHUALE	1H0 199 273 B
(10)	Console automatic AAA	357 199 273 C
(11)	Hex collared bolt M 10 X 45 automatic M 10 X 45	N 102 416 01
(11)	Hex collared bolt M 10 X 60 Manualgearbox+AAM,1 Y,AAZ,AEY,AFT,ADZ,AEP,AGG,ACC,AEE,AEX,AKS,AKR,APQ M 10 X 60 1YAAZACCADZAEEAEPAEXAEYAFTAGGAKRAKSAPQ	N 102 862 03
(11)	Hex collared bolt M 10 X 45 Manualgearbox+AAA,ABF,1 Z,AFN,AHU,ALE M 10 X 45 1ZABFAFNAHUALE	N 102 416 01
(12)	Socket head bolt withinner multipoint head M 10 X 60 X 27 Automatic+AAA M 10 X 60 X 27	N 904 897 01
(15)	Balance weight 1 Y,AAZ,1 Z,AEY,ACC,AFN,AHU,ALE 1Y1ZAAZACCAEYAFNAHUALE	1H0 199 322 J
(15)	Balance weight 1 Y,AAZ,1 Z,AEY,ACC,AFN,AHU,ALE 1Y1ZAAZACCAEYAFNAHUALE	1H0 199 322 E
(18)	Bonded rubber bush AFT,AAM,ADZ,ACC,AGG,AEP,1 Y,AEY,AAZ,AEX,AKS,AKR,APQ 1YAAMAAZACCADZAEPAEXAEYAFTAGGAKRAKSAPQ	357 199 402 B
(18)	Bonded rubber bush AAA,ABF,1 Z,AFN,AHU,ALE 1ZAAAABFAFNAHUALE	3A0 199 402
(20)	Bonded rubber bush Manualgearbox+AAZ,AGG,AEPAFT,ABF,AKS,AKR ABFAGGAKRAKS	1H0 199 262 B
(20)	Bonded rubber bush AEX,AEE,APQ AEEAEXAPQ	1H0 199 262 E
(20)	Bonded rubber bush AAA AAA	1H0 199 262 K
(20)	hydro-mounting 1 Z,AEY,AFN,AHU,ALE 1ZAEYAFNAHUALE	1H0 199 262 L
(21)	Console Manualgearbox+AAA	357 199 354 J
(21)	Console Automatic+AAZ,ADZ,AAM,AGG,AEP,AFT,1 Z,AFN,AHU,AKS,AKR,ALE 1ZAAMADZAEPAFNAFTAGGAHUAKRAKSALE	1H0 199 354 J
(21)	Console Manualgearbox 1 Z,ABF,AFN,AHU,ALE ABFAFNAHUALE	1H0 199 354 H
(21)	Console Automatic+AAA	357 199 354 K
(21)	Console Manualgearbox+1 Y,AAZ,AAM,AGG,AEP,ACC,AFT,AEY,ADZ,AKS,AKR AAMAAZACCADZAEPAEYAFTAGGAKRAKS	1H0 199 354 K
(22)	Guard plate Manualgearbox+ABF	1H2 199 398
(22)	Guard plate 1 Z,AEK,AFT,ADZ,AAM,AFN,AHU,AKS,ALEManualgearbox+ABF 1ZAAMADZAEKAFNAFTAHUAKS	1H0 199 456 B
(23)	Clip ABF ABF	1H0 199 442
(25)	Hexagon bolt M 10 X 42 AAA M 10 X 42 AAA	N 102 685 01
(25)	Hexagon bolt M 8 X 35 AFT,1 Y,AAZ,ABF,ADZ,AAM,AGG,AEP,1 Z,AEY,ACC,AFN,AHU,AKS,AKR,ALE M 8 X 35 1Y1ZAAMAAZABFACCADZAEPAEYAFNAFTAGGAHUAKRAKSALE	N 019 503 3
(25)	Hex collared bolt M 10 X 42 AAA M 10 X 42 AAA	N 019 525 2
(26)	Hexagon bolt M 8 X 45 AFT,1 Y,AAZ,ABF,ADZ,AAM,AGG,AEP,1 Z,AEY,ACC,AFN,AHU,AKS,AKR,ALE M 8 X 45 1Y1ZAAMAAZABFACCADZAEPAEYAFNAFTAGGAHUAKRAKSALE	N 019 504 3
(27)	Console AAA,ABF,1 Z,AFN,AHU,ALE 1ZAAAABFAFNAHUALE	357 199 353 A
(27)	Console automatic	357 199 353 B
(28)	Hex collared bolt M 8 X 92 AAA,ABF,1 Z,AFN,AHU,ALE M 8 X 92 1ZAAAABFAFNAHUALE	N 100 670 03
(29)	Hex collared bolt M 8 X 35 automatic M 8 X 35	N 101 953 01
(6)	Bonded rubber bush AEX,APQ AEXAPQ	1H0 199 609 E
(6)	Bonded rubber bush 1 Z,ABF,AFN,AHU,ALE 1ZABFAFNAHUALE	1H0 199 609 J
(6)	Bonded rubber bush AFT,AEP,AGG,AKS,AKR AEPAFTAGGAKRAKS	1H0 199 609 G
(6)	Bonded rubber bush 1 Y,AAZ,AEY,Automatic+ADZ 1YAAZAEY	1H0 199 609 B
(6)	Bonded rubber bush AAM,AEE,ADZ,ACC AAMACCADZAEE	1H0 199 609 F
(9)	Hex collared bolt Bonded rubber bush M 10 X 30 M 10 X 30	N 100 704 03
1	engine carrier with rubbermounting	1H0 199 200 P
10	Console AEE,AEX,APQ AEEAEXAPQ	1H0 199 273 E
10	Console Manualgearbox AAA	1H0 199 273 D
11	Hex collared bolt M 10 X 45 automatic M 10 X 45	N 102 416 03
11	Hex collared bolt M 10 X 70 AEX,APQ M 10 X 70 AEXAPQ	N 019 532 4
11	Hexagon bolt M 10 X 60 Manualgearbox+AAM,1 Y,AAZ,AEY,AFT,ADZ,AEP,AGG,ACC,AEE,AEX,AKS,AKR,APQ M 10 X 60 1YAAZACCADZAEEAEPAEXAEYAFTAGGAKRAKSAPQ	N 100 487 03
11	Hex collared bolt M 10 X 45 Manualgearbox+AAA,ABF,1 Z,AFN,AHU,ALE M 10 X 45 1ZABFAFNAHUALE	N 102 416 03
14	Assembly carrier	1H0 199 315 AA
14	Assembly carrier	1H0 199 315 T
15	Balance weight AEX,AEE,AFT,AAM,ADZ,AGG,AEP,ABF,AKS,AKR,APQ AAMABFADZAEEAEPAEXAFTAGGAKRAKSAPQ	1H0 199 322 H
15	Balance weight AEX,AEE,AFT,AAM,ADZ,AGG,AEP,ABF AAMABFADZAEEAEPAEXAFTAGG	1H0 199 322 D
16	Hexagon bolt M 8 X 55 M 8 X 55	N 100 012 04
17	Hexagon collar nutself-locking M 8 M 8	N 902 264 04
18	Bonded rubber bush AEE AEE	191 199 381 A
19	Hex collared bolt M 8 X 22 M 8 X 22	N 019 526 5
19	Hex collared bolt M 8 X 20 M 8 X 20	N 019 533 4
2	Bonded rubber bush	1H0 199 233 A
20	Bonded rubber bush 1 Y,ACC,AAM,ADZ,Automatic+AAZ,AGG,AEP,AFT,AKS,AKR 1YAAMACCADZAEPAFTAGGAKRAKS	1H0 199 262 A
21	Console AEE,AEX,APQ AEEAEXAPQ	1H0 199 354 F
23	Clamping washer 5 X 30 1 Z,AEK,AFTADZ,AAM,AFN,AHU,AKS,ALE 5 X 30 1ZAAMAEKAFNAHUAKSALE	N 903 350 04
23	Clamping washer 5 X 30 1 Z,AEK,AFTADZ,AAM,AFN,AHU,AKS,ALE 5 X 30 1ZAAMAEKAFNAHUAKSALE	N 907 965 02
24	double stud with hexagon drive M 10 X 58/M 8 X 12 M 10 X 58/M 8 X 12	N 905 532 01
24	double stud with hexagon drive M 10 X 58/M 8 X 12 M 10 X 58/M 8 X 12	N 905 532 02
25	Socket head bolt withhexagon socket head M 10 X 32 AEX,AEE,APQ M 10 X 32 AEEAEXAPQ	N 902 015 03
25	Socket head bolt withhexagon socket head M 10 X 32 AEX,AEE,APQ M 10 X 32 AEEAEXAPQ	N 902 015 02
26	Hex collared bolt M 10 X 52 AAA M 10 X 52 AAA	N 101 751 02
26	Hex collared bolt M 10 X 52 AAA M 10 X 52 AAA	N 105 070 01
27	Console AFT,1 Y,AEX,AAZ,AEE,ADZ,AAM,AGG,AEP,AEY,ACC,AKS,AKR,APQ 1YAAMAAZACCADZAEEAEPAEXAEYAFTAGGAKRAKSAPQ	1H0 199 353 D
28	Hexagon bolt M 8 X 98 AFT,1 Y,AEX,AAZ,AEE,ADZ,AAM,AGG,AEP,AEY,ACC,AKS,AKR,APQ M 8 X 98 1YAAMAAZACCADZAEEAEPAEXAEYAFTAGGAKRAKSAPQ	N 101 028 03
29	Hex collared bolt M 8 X 45 AAA,ABF,1 Z,AFN,AHU,ALE M 8 X 45 1ZAAAABFAFNAHUALE	N 019 504 2
2B	Balance weight 1 Z,AFN,AHU,ALE 1ZAFNAHUALE	357 199 501
2C	Hexagon bolt M 8 X 40 1 Z,AFN,AHU,ALE M 8 X 40 1ZAFNAHUALE	N 103 156 01
3	arm	1H0 199 187 A
34	Hex collared bolt M 10 X 45 M 10 X 45	N 102 416 01
34	Hex collared bolt M 10 X 45 M 10 X 45	N 102 416 03
35	Hex collared bolt M 10 X 24 M 10 X 24	N 102 575 01
36	Hexagon bolt M 12 X 1,5 X 78 M 12 X 1,5 X 78	N 102 078 03
36	Hexagon bolt M 12 X 1,5 X 78 M 12 X 1,5 X 78	N 102 078 01
37	Hexagon bolt M 12 X 1,5 X 65 M 12 X 1,5 X 65	N 102 096 01
37	Hex collared bolt M 12 X 1,5 X 65 M 12 X 1,5 X 65	N 102 096 03
38	Supports for engine/gearbox ABF ABF	037 199 307
39	Socket head bolt with hexagonsocket head (combination) M 10 X 60 ABF M 10 X 60 ABF	N 102 382 02
39	Socket head bolt with hexagonsocket head (combination) M 10 X 60 ABF M 10 X 60 ABF	N 102 382 01
4	Washer 15 X 50 X 2,5 15 X 50 X 2,5	1H0 199 175 A
40	Socket head bolt with hexagonsocket head (combination) M 10 X 95 ABF M 10 X 95 ABF	N 905 726 01
41	Socket head bolt with hexagonsocket head (combination) M 10 X 40 ABF M 10 X 40 ABF	N 903 316 04
41	Socket head bolt with hexagonsocket head (combination) M 10 X 40 ABF M 10 X 40 ABF	N 903 316 01
5	Hex collared bolt M 10 X 62 M 10 X 62	N 102 465 01
6	Bonded rubber bush AAA AAA	1H0 199 609 K
7	Stop AAA AAA	1H0 199 635
8	hexagon nut, self-locking M 8 AAA M 8 AAA	N 900 744 01
9	shouldered bolt M 10 X 32 M 10 X 32	N 102 302 01

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: 1Y, 1Z, AAA, AAM, AAZ, ABF, ACC, ADZ
Variant tags: diesel
Factory group: 01 Engine
Factory subgroup: 199020
