Suction jet pump — Mk3 Golf Engine (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Vacuum system

Generation: Mk3 1993 - 1996 (MEX) Group: Engine Rebuild step 1 Parts: 9 Primary OEM: 055 133 687, 037 133 687 AD, 067 133 753 A

Suction jet pump for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 133040 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 8 OEM part numbers across 9 catalogued positions including 055 133 687, 037 133 687 AD and 067 133 753 A. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 8 OEM part numbers across 9 numbered positions.

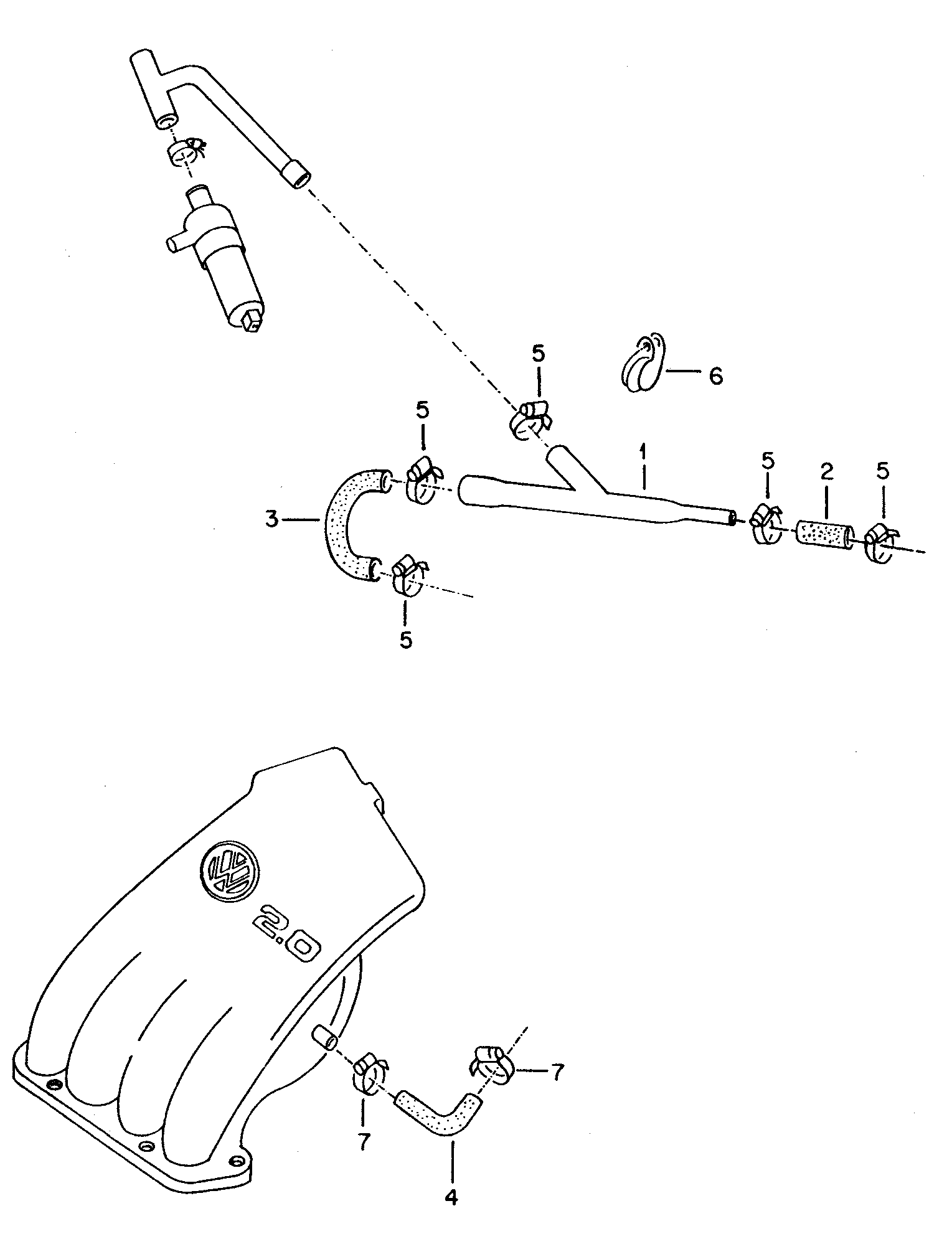

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	suction jet pump F >> 1 H-P-006 272* 2.0 Ltr. Automatic+ABA 2.0 Ltr.	—
-	Bracket	055 133 687
(6)	Hose bracket	037 133 687 AD
1	suction jet pump	067 133 753 A
3	Connecting hose	037 133 783 K
4	angled hose	027 133 784 C
4	angled hose	079 133 784 J
5	Clamp 16-28 X 9 X 0,5 16-28 X 9 X 0,5	N 905 618 01
7	Clamp 16-28 X 9 X 0,5 16-28 X 9 X 0,5	N 905 618 01
