Which VW part numbers are on the timing chainslide rail diagram for the Mk3 Golf?

This diagram lists 29 OEM part numbers for the Mk3 Golf. The first three are 021 109 507 B, 021 109 509 C and 021 109 509 E.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The parts on it carry the engine code AAA.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Timing chainslide rail — Mk3 Golf Engine (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Repair kit for toothed belt with tensioning roller

Generation: Mk3 1997 (RDW) Group: Engine Rebuild step 1 Parts: 30 Primary OEM: 021 109 507 B, 021 109 509 C, 021 109 509 E

Timing chainslide rail for the Volkswagen Golf Mk3 (1997): factory exploded diagram 109080 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 29 OEM part numbers across 30 catalogued positions including 021 109 507 B, 021 109 509 C and 021 109 509 E. Parts on this plate carry the engine code AAA. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 29 OEM part numbers across 30 numbered positions.

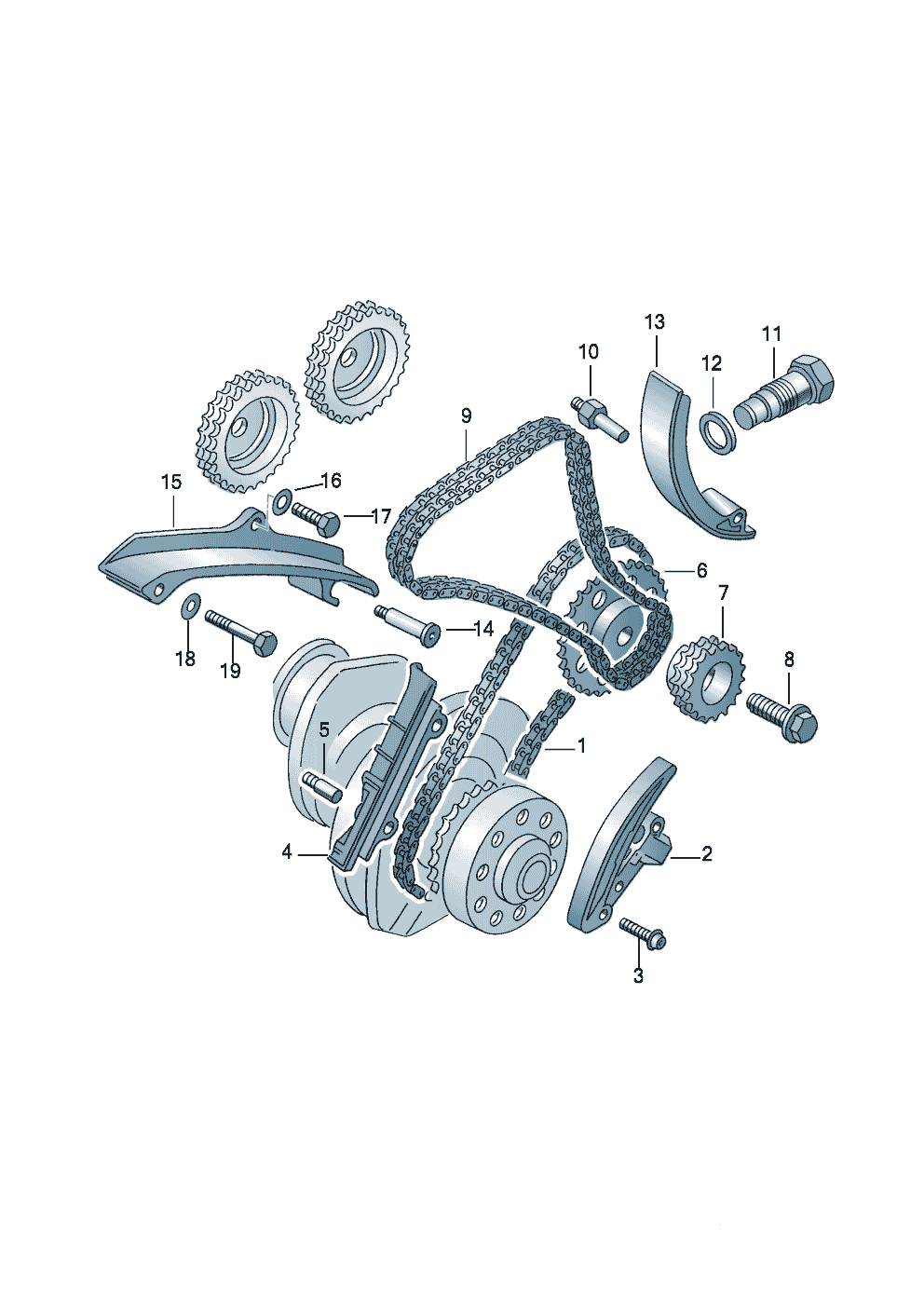

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	timing chainslide rail 2.8 Ltr. AAA 2.8 Ltr. AAA	—
(11)	chain tensioner M AAA 217 001>>	021 109 507 B
(13)	chain tensioner M AAA 217 001>>	021 109 509 C
(13)	chain tensioner M AAA 217 001>>	021 109 509 E
(7)	Chain sprocket M AAA 217 001>> Z=18 Z=18	066 109 570
(7)	Chain sprocket M AAA 217 001>> Z=18 Z=18	021 109 570 A
(9)	timing chain M AAA 217 001>>	021 109 503 D
1	timing chain IWIS IWIS	021 109 465 B
10	Pin IWIS IWIS	021 109 511
11	chain tensioner M >> AAA 217 000 SACHS SACHS	021 109 507 A
12	seal ring 22 X 27 22 X 27	N 013 827 1
13	chain tensioner M >> AAA 217 000 SACHS SACHS	021 109 509 A
14	Pin 10 X 34 X 45 10 X 34 X 45	021 109 515 A
15	slide rail IWIS IWIS	021 109 513
16	Washer A 8,4 X 16 X 1,6 A 8,4 X 16 X 1,6	N 011 525 20
16	Washer A 8,4 A 8,4	N 011 525 13
17	Hexagon bolt M 8 X 26 M 8 X 26	N 010 272 4
17	Hexagon bolt M 8 X 26 M 8 X 26	N 010 272 1
18	Washer A 8,4 X 16 X 1,6 A 8,4 X 16 X 1,6	N 011 525 20
18	Washer A 8,4 A 8,4	N 011 525 13
19	Hexagon bolt M 8 X 55 M 8 X 55	N 010 352 10
2	chain tensioner IWIS IWIS	021 109 467
3	Socket head bolt withhexagon socket head M 6 X 24 M 6 X 24	N 905 350 01
4	slide rail	021 109 469
5	Pin	021 109 471
6	Chain sprocket Z=32 Z=32	021 109 569
7	Chain sprocket M >> AAA 217 000 Z=2 X 18 Z=2 X 18	021 109 570
8	Hexagon bolt M 12 X 1,5 X 40 M 12 X 1,5 X 40	N 102 038 01
8	Hexagon bolt M 12 X 1,50 X 40 M 12 X 1,50 X 40	N 102 038 03
9	timing chain M >> AAA 217 000 SACHS SACHS	021 109 503 A

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: AAA
Factory group: 01 Engine
Factory subgroup: 109080
