Toothed belt guardtoothed belt — Mk3 Golf Engine (1995)

Factory title: Volkswagen Golf (1995) - Repair kit for toothed belt with tensioning roller

Generation: Mk3 1995 (RDW) Group: Engine Rebuild step 1 Parts: 28 Primary OEM: 026 109 150 A, N 103 236 01, 030 109 243 K

Toothed belt guardtoothed belt for the Volkswagen Golf Mk3 (1995): factory exploded diagram 109050 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 27 OEM part numbers across 28 catalogued positions including 026 109 150 A, N 103 236 01 and 030 109 243 K. Parts on this plate carry the engine codes ABD, ABU and AEA. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 27 OEM part numbers across 28 numbered positions.

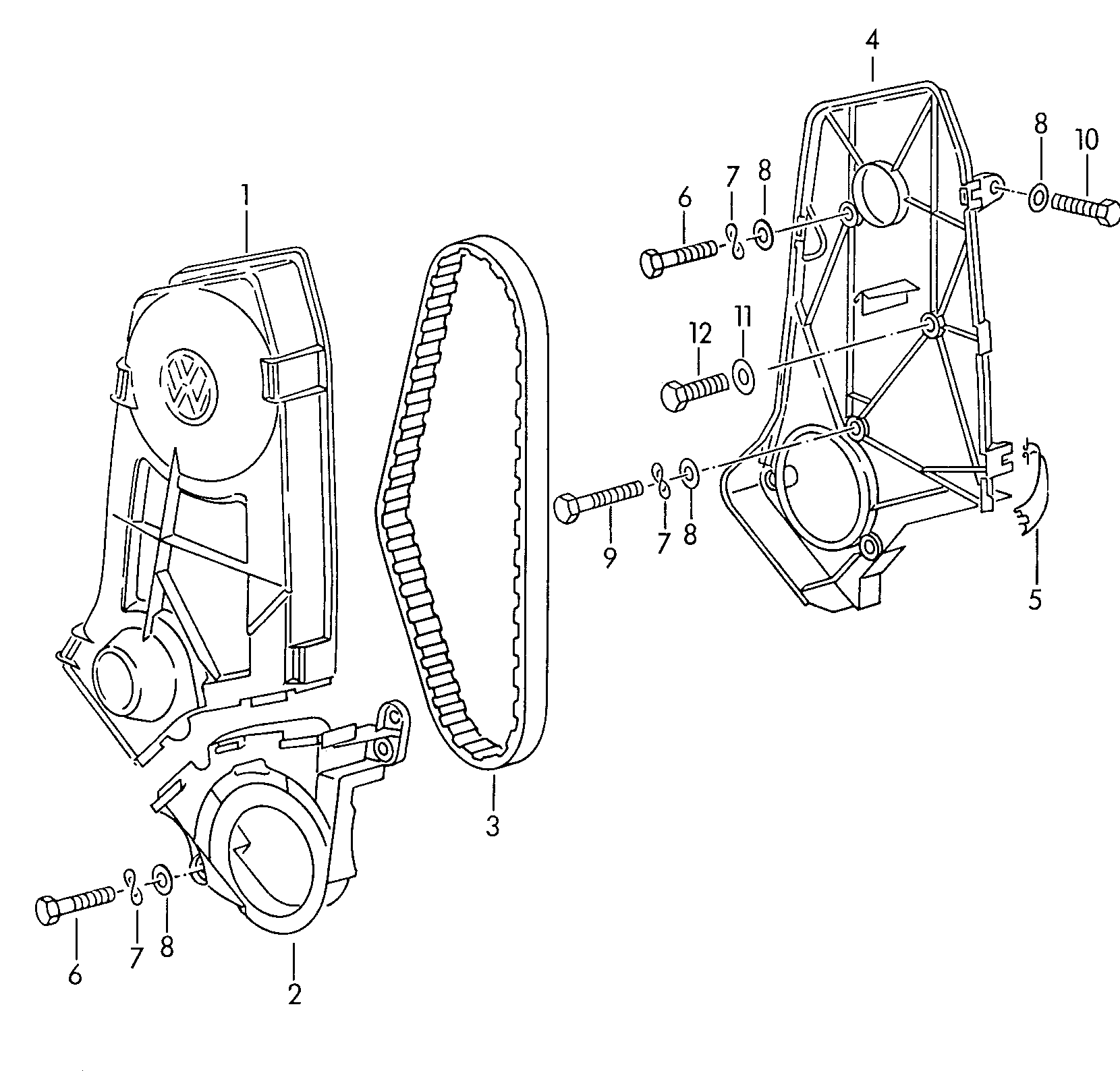

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Toothed belt guardtoothed belt 1.4/1.6 ltr. ABD,ABU,AEA 1.4/1.6 ltr. ABDABUAEA	—
-	Spring clip ABU,AEA ABUAEA	026 109 150 A
-	Threaded pin M 8 X 70 AEA M 8 X 70 AEA	N 103 236 01
-	Tensioning roller AEA AEA	030 109 243 K
-	Tensioning roller AEA AEA	030 109 243 D
-	Hexagon nut M 8 AEA M 8 AEA	N 011 008 30
(1)	Toothed belt guard AEA AEA	032 109 121 E
(1)	Toothed belt guard ABU ABU	032 109 121 A
(2)	Toothed belt guard AEA AEA	030 109 127 G
(2)	Toothed belt guard ABU ABU	032 109 127 B
(3)	toothed belt Z=137 AEA Z=137 AEA	032 109 119 J
(3)	toothed belt ABU ABU	032 109 119
(4)	Cover plate AEA AEA	032 109 145 K
(4)	Cover plate ABU ABU	032 109 145 C
(9)	Hexagon bolt M 6 X 20 M 6 X 20	N 010 217 10
1	Toothed belt guard ABD ABD	030 109 123 B
10	Hexagon bolt M 6 X 20 ABD M 6 X 20 ABD	N 010 217 10
11	Spring washer B 8 X 15 X 0,8 B 8 X 15 X 0,8	N 012 241 11
11	Spring washer B 8 X 15 B 8 X 15	N 012 241 10
2	cover plate ABD ABD	030 109 127 C
3	toothed belt AEA AEA	032 109 119 G
3	toothed belt ABD ABD	030 109 119 A
4	Cover plate AEA AEA	032 109 145 H
4	Cover plate ABD ABD	030 109 145 B
5	Spring clip ABD ABD	069 109 150
7	Spring washer 6 6	N 012 226 5
8	Washer 6,5 6,5	N 011 547 6
9	Hexagon bolt M 6 X 30 M 6 X 30	N 010 346 7

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1995
Generation region: RDW
Generation code: 159
Engine codes on this plate: ABD, ABU, AEA
Variant tags: petrol_8v_base
Factory group: 01 Engine
Factory subgroup: 109050
