Toothed belt guardtoothed belt — Mk3 Golf Engine (1997)

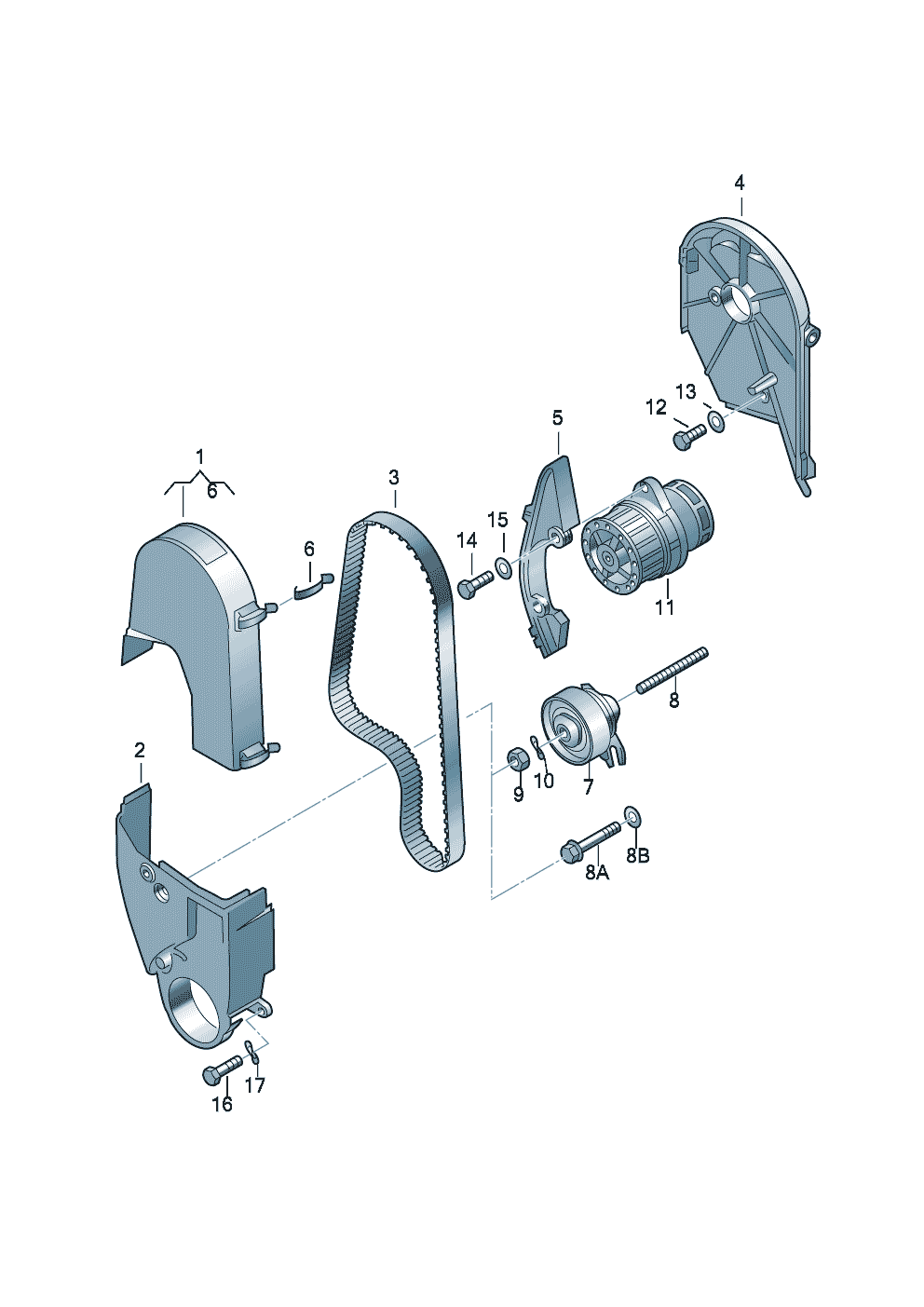

Factory title: Volkswagen Golf (1997 - 1998) - Repair kit for toothed belt with tensioning roller

Generation: Mk3 1997 (RDW) Group: Engine Rebuild step 1 Parts: 27 Primary OEM: 032 109 121 E, 030 109 127 G, 030 109 127 P

Toothed belt guardtoothed belt for the Volkswagen Golf Mk3 (1997): factory exploded diagram 109050 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 23 OEM part numbers across 27 catalogued positions including 032 109 121 E, 030 109 127 G and 030 109 127 P. Parts on this plate carry the engine codes AEE and AEX. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 23 OEM part numbers across 27 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Toothed belt guardtoothed belt 1.4/1.6 ltr. AEX,AEE 1.4/1.6 ltr. AEEAEX	—
(1)	Toothed belt guard AEE AEE	032 109 121 E
(2)	Toothed belt guard F >> 1 H-WB 050 000F >> 1 H-WD 119 000F >> 1 H-WP 090 000*F >> 1 H-WW 157 905	030 109 127 G
(2)	Toothed belt guard F 1 H-WB 050 001>>F 1 H-WD 119 001>>F 1 H-WP 090 001>>*F 1 H-WW 157 906>>	030 109 127 P
(3)	toothed belt Z=137 AEE Z=137 AEE	032 109 119 J
(3)	toothed belt Z=135 AEX Z=135 AEX	030 109 119 M
(3)	toothed belt Z=135 AEX Z=135 AEX	030 109 119 S
(3)	toothed belt AEX AEX	030 109 119 H
(3)	toothed belt AEE AEE	032 109 119 G
(4)	Cover plate AEX AEX	030 109 145 N
(4)	Cover plate AEE AEE	032 109 145 K
1	Toothed belt guard AEX AEX	030 109 121 E
11	Coolant pump see illustration: 121-010 121-010	—
12	Hexagon bolt M 6 X 20 M 6 X 20	N 010 217 10
14	Hexagon bolt see illustration: 121-010 121-010	—
14	Hexagon bolt M 8 X 28 M 8 X 28	N 010 233 6
15	Spring washer see illustration: 121-010 121-010	—
15	Spring washer B 8 X 15 X 0,8 B 8 X 15 X 0,8	N 012 241 11
16	Hexagon bolt M 6 X 25 M 6 X 25	N 010 218 6
5	Cover	030 109 170 A
6	Spring clip AEE AEE	026 109 150 A
7	Tensioning roller	030 109 243 J
7	Tensioning roller	030 109 243 K
7	Tensioning roller	030 109 243 D
8	Threaded pin M 8 X 70 M 8 X 70	N 103 236 01
9	Hexagon nut M 8 M 8	N 011 008 18
9	Hexagon nut M 8.0 M 8.0	N 011 008 30

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: AEE, AEX
Variant tags: petrol_8v_base
Factory group: 01 Engine
Factory subgroup: 109050
