Which VW part numbers are on the toothed belt toothed belt guard 1 6 2 0 litres diagram for the Mk3 Golf?

This diagram lists 38 OEM part numbers for the Mk3 Golf. The first three are N 012 226 5, 049 109 291 A and 049 109 188 B.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The parts on it carry the engine codes AAM, ACC, ADY, ADZ, AEK, AEP, AFT and AGG.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Toothed belt toothed belt guard 1 6 2 0 litres — Mk3 Golf Engine (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Repair kit for toothed belt with tensioning roller

Generation: Mk3 1997 (RDW) Group: Engine Rebuild step 1 Parts: 40 Primary OEM: N 012 226 5, 049 109 291 A, 049 109 188 B

Toothed belt toothed belt guard 1 6 2 0 litres for the Volkswagen Golf Mk3 (1997): factory exploded diagram 109055 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 38 OEM part numbers across 40 catalogued positions including N 012 226 5, 049 109 291 A and 049 109 188 B. Parts on this plate carry the engine codes AAM, ACC, ADY, ADZ, AEK, AEP, AFT and AGG. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 38 OEM part numbers across 40 numbered positions.

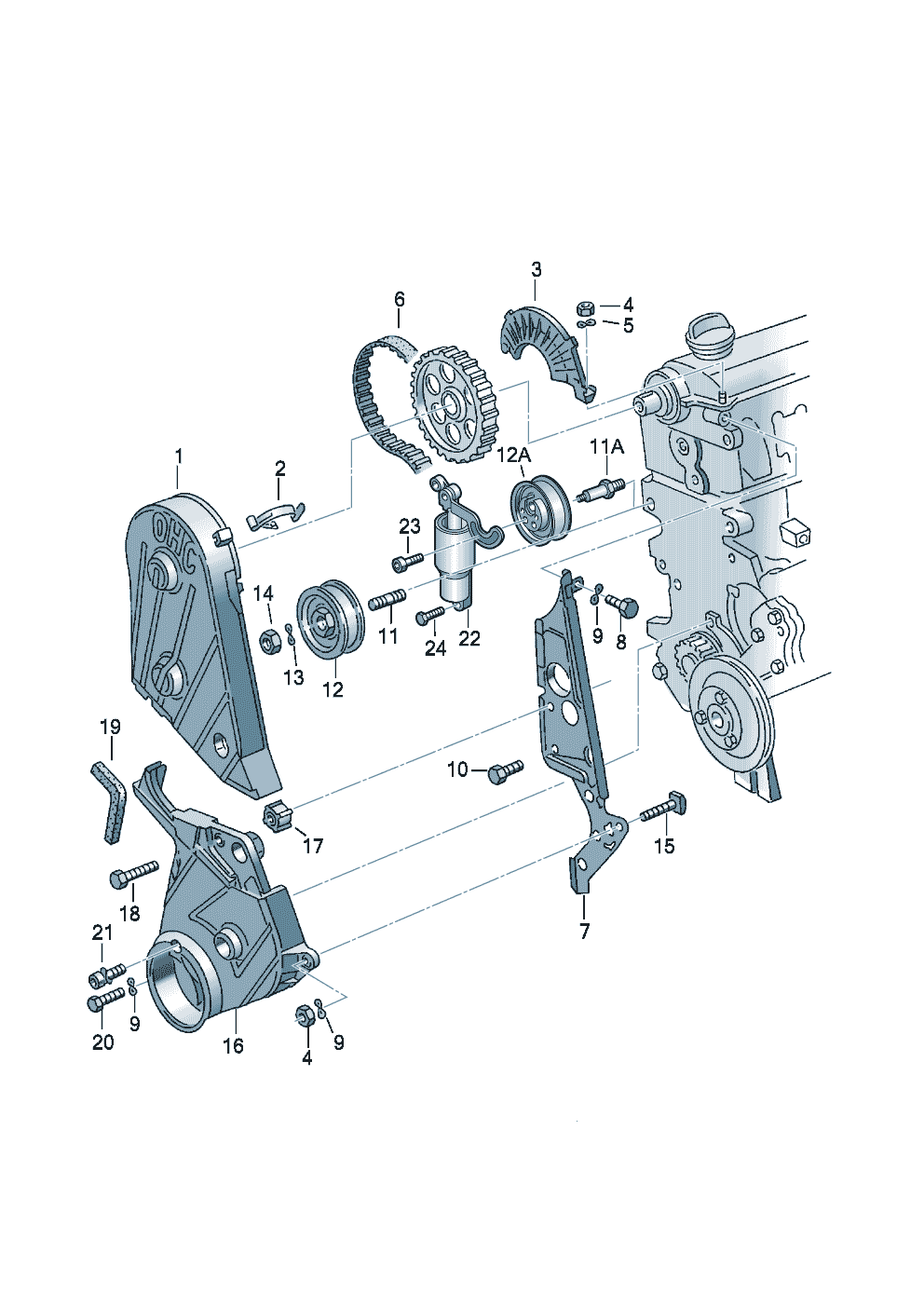

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	toothed belt Toothed belt guard 1.6-2.0 litres AAM,AEP,ADZ,AEK,AFT,AKS,AGG,AKR,ACC 1.6-2.0 litres AAMACCADZAEKAEPAFTAGGAKRAKS	—
-	Spring washer 6 6	N 012 226 5
-	Bungs AAM,ADZ,ACC AAMACCADZ	049 109 291 A
-	Sealing strip 215 MM 215 MM	049 109 188 B
-	Clamp spring AGG,AKR AGGAKR	037 103 579
(1)	Toothed belt guard AEK,AFT,AKS AEKAFTAKS	050 109 108
(1)	Toothed belt guard AEP,AGG,AKR AEPAGGAKR	037 109 107 B
(11)	Threaded pin M 10 XM 8 X 58 AEP,AGG,AKR M 10 XM 8 X 58 AEPAGGAKR	N 014 593 1
(13)	Spring washer 8 AEP,AGG,AKR 8 AEPAGGAKR	N 012 228 3
(14)	Hexagon nut M 8.0 AEP,AGG,AKR M 8.0 AEPAGGAKR	N 011 008 30
(14)	Hexagon nut M 8 ADY,AEP,AGG M 8 ADYAEPAGG	N 011 008 18
(15)	Socket head bolt withhexagon socket head also use: M 6 X 25 N 012 226 5 AAM,ADZ,AEK,AFT,AKS,ACC M 6 X 25 N 012 226 5 AAMACCADZAEKAFTAKS	N 014 705 3
(16)	Toothed belt guard ADY,AEP,AGG ADYAEPAGG	048 109 175
(16)	Toothed belt guard AEK,AFT,AKS AEKAFTAKS	050 109 175 A
(16)	Toothed belt guard AAM,ADZ,ACC AAMACCADZ	051 109 175
(16)	Toothed belt guard AEP,AGG,AKR AEPAGGAKR	048 109 175 A
(18)	Hexagon bolt M 8 X 26 AAM,ADZ,ACC M 8 X 26 AAMACCADZ	N 010 272 1
(18)	Hexagon bolt M 8 X 26 AAM,ADZ,ACC M 8 X 26 AAMACCADZ	N 010 272 4
(2)	Spring clip AEK,AFT,AKS,AEP,AGG,AKR AEKAEPAFTAGGAKRAKS	048 109 150
(3)	Cover AEK,AFT,AKS AEKAFTAKS	048 109 173 A
(3)	Cover AEK,AFT,AKS AEKAFTAKS	048 109 173 D
(6)	toothed belt Z=124 AEP,AGG,AKR Z=124 AEPAGGAKR	037 109 119 C
(7)	Cover plate	051 109 129
1	Toothed belt guard AAM,ADZ,ACC AAMACCADZ	026 109 107 B
10	Hexagon bolt M 8 X 18 M 8 X 18	111 821 145
10	Hexagon bolt M 8 X 18 M 8 X 18	N 010 239 11
11	Threaded pin M 10 X 40 AAM,AEK,AFT,AKS,ADZ,ACC M 10 X 40 AAMACCADZAEKAFTAKS	N 902 964 01
12	Tensioning roller also use: N 902 964 01 N 012 231 4 N 011 133 7 AEP,AGG,AKRAEP,AGG,AKRAEP,AGG,AKR N 902 964 01 N 012 231 4 N 011 133 7 AEPAGGAKR	026 109 243 L
12	Tensioning roller also use: N 902 964 01 N 012 231 4 N 011 133 7 AEP,AGG,AKRAEP,AGG,AKRAEP,AGG,AKR N 902 964 01 N 012 231 4 N 011 133 7 AEPAGGAKR	026 109 243 E
13	Spring washer 10 AAM,ADZ,AEK,AFT,AKS,ACC 10 AAMACCADZAEKAFTAKS	N 012 231 4
14	Hexagon nut M 10 AAM,ADZ,AEK,AFT,AKS,ACC M 10 AAMACCADZAEKAFTAKS	N 011 133 7
15	t-head screw M 6 X 35 AEP,AGG,AKR M 6 X 35 AEPAGGAKR	N 900 534 01
19	shorten to: 120 MM 120 MM	—
2	Spring clip AAM,ADZ,ACC AAMACCADZ	026 109 150 A
20	Hexagon bolt M 6 X 22 M 6 X 22	N 010 222 8
21	Socket head bolt withhexagon socket head also use: M 6 X 25 N 012 226 5 M 6 X 25 N 012 226 5	N 014 705 3
3	Cover AAM,ADZ,ACC AAMACCADZ	026 109 173 A
4	Hexagon nut M 6 M 6	N 011 006 24
5	Washer 6,4 X 12,5 X 1,6 6,4 X 12,5 X 1,6	N 011 524 23
6	toothed belt Z=121 AAM,AEK,AFT,AKS,ADZ,ACC Z=121 AAMACCADZAEKAFTAKS	026 109 119 B

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: AAM, ACC, ADY, ADZ, AEK, AEP, AFT, AGG
Variant tags: petrol_8v_gti_or_gl
Factory group: 01 Engine
Factory subgroup: 109055
