Toothed belt toothed belt guard — Mk3 Golf Engine (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Repair kit for toothed belt with tensioning roller

Generation: Mk3 1997 (RDW) Group: Engine Rebuild step 1 Parts: 22 Primary OEM: 048 109 119 G, 053 109 123 C, 051 109 243 A

Toothed belt toothed belt guard for the Volkswagen Golf Mk3 (1997): factory exploded diagram 109065 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 20 OEM part numbers across 22 catalogued positions including 048 109 119 G, 053 109 123 C and 051 109 243 A. Parts on this plate carry the engine code ABF. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 20 OEM part numbers across 22 numbered positions.

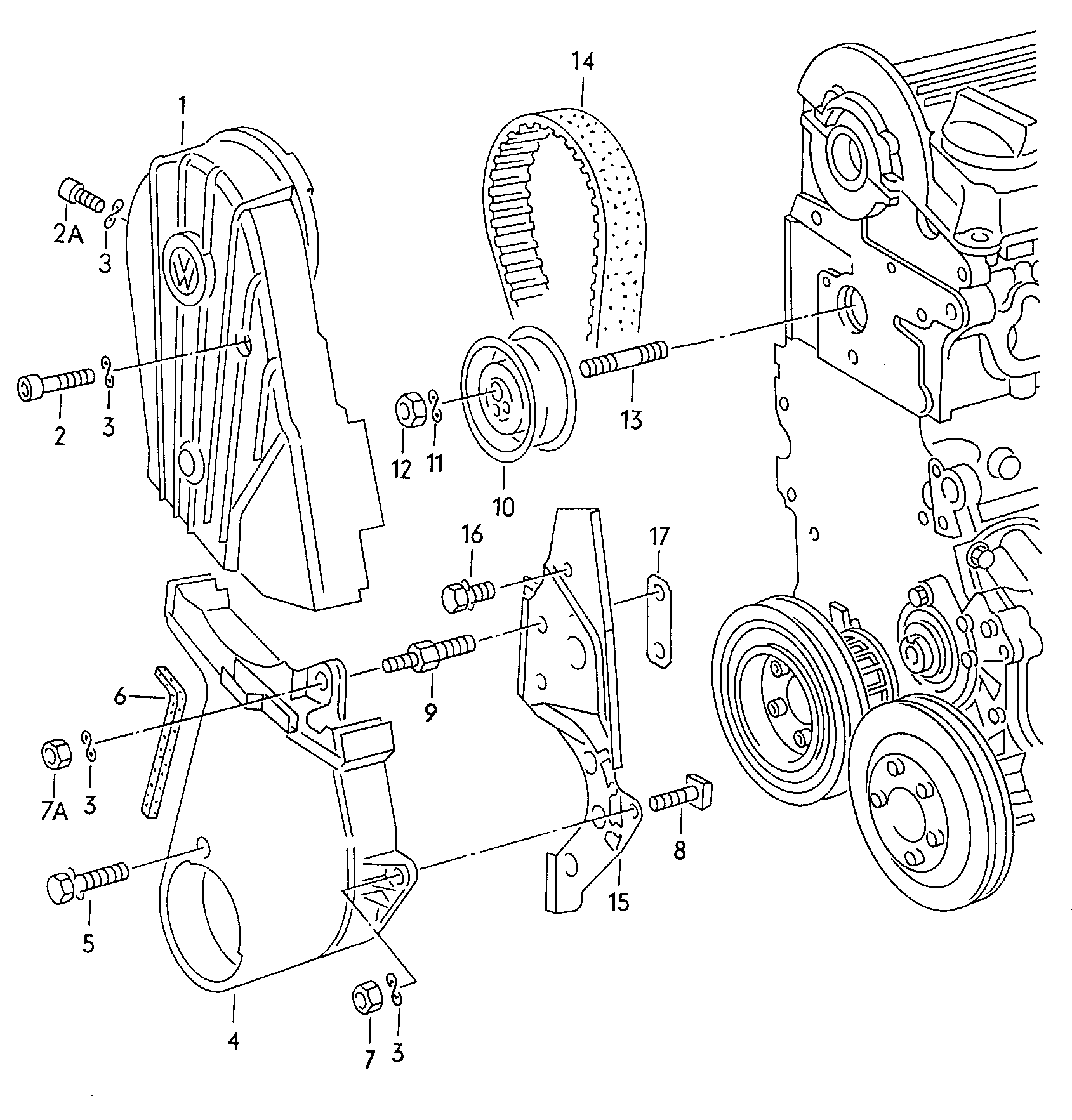

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	toothed belt Toothed belt guard 16 V	—
	toothed belt Toothed belt guard 2.0 Ltr. ABF 2.0 Ltr. ABF	—
(14)	toothed belt Z=151 Z=151	048 109 119 G
1	Toothed belt guard	053 109 123 C
10	Tensioning roller use if required: N 012 241 10 N 011 008 30 N 014 593 1 N 012 241 10 N 011 008 30 N 014 593 1	051 109 243 A
10	Tensioning roller	051 109 243
11	Spring washer 8 X 15 X 0,5 8 X 15 X 0,5	N 012 229 3
11	Spring washer A 10 X 18 X 0,8 A 10 X 18 X 0,8	N 012 231 4
11	Spring washer B 8 X 15 B 8 X 15	N 012 241 10
12	Hexagon nut M 10 M 10	N 011 133 7
12	Hexagon nut M 8.0 M 8.0	N 011 008 30
13	Threaded pin M 10 XM 8 X 58 M 10 XM 8 X 58	N 014 593 1
13	Threaded pin M 10 X 40 M 10 X 40	N 902 964 01
15	Cover plate	053 109 129 A
16	Hexagon bolt M 8 X 18 M 8 X 18	111 821 145
16	Hexagon bolt M 8 X 18 M 8 X 18	N 010 239 11
2A	Socket head bolt withhexagon socket head M 6 X 18 M 6 X 18	N 014 703 5
3	Spring washer 6 6	N 012 226 5
4	Toothed belt guard	053 109 175
5	Socket head bolt withhexagon socket head M 6 X 25 M 6 X 25	N 014 705 3
7	Hexagon nut M 6 M 6	N 011 006 24
8	t-head screw M 6 X 35 M 6 X 35	N 900 534 01

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: ABF
Variant tags: petrol_8v_gti_or_gl
Factory group: 01 Engine
Factory subgroup: 109065
