Trimfloor assembly noise insulation — Mk3 Golf Engine (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Trim. Noise insulation. floor assembly

Generation: Mk3 1997 (RDW) Group: Engine Rebuild step 1 Parts: 19 Primary OEM: 1H0 825 250 A 0 1C, N 101 388 01, 1H0 825 237 J

Trimfloor assembly noise insulation for the Volkswagen Golf Mk3 (1997): factory exploded diagram 825010 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 18 OEM part numbers across 19 catalogued positions including 1H0 825 250 A 0 1C, N 101 388 01 and 1H0 825 237 J. Parts on this plate carry the engine codes AAA, ABU and AEX. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 18 OEM part numbers across 19 numbered positions.

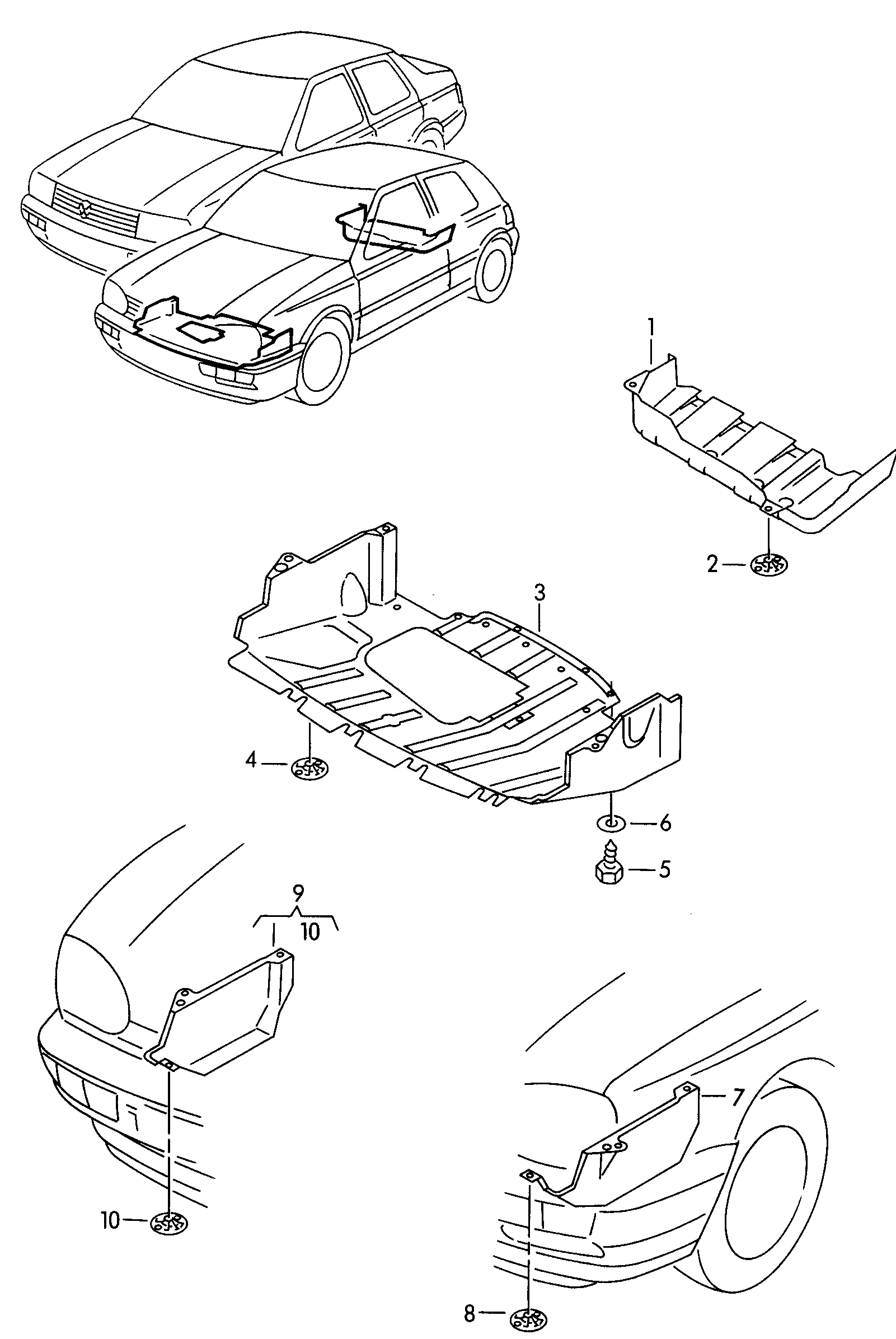

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	1H0 825 250 A 0 1C
-	End cap 30 30	N 101 388 01
(3)	Noise insulationfor manual gearbox 16 V:Petr. engine	1H0 825 237 J
(3)	Noise insulationfor 4-speed automatic gearbox diesel eng.	1H0 825 235 K
(3)	Noise insulation Electric motor KDW-WOLFSBURG KDW-WOLFSBURG	—
1	Trim 16 V,VR 6	1H6 825 215 A
10	Clamping washer 5 X 30 5 X 30	N 907 965 02
10	Clamping washer 5 X 30 5 X 30	N 903 350 04
2	Clamping washer 5 X 30 5 X 30	N 903 350 04
2	Clamping washer 5 X 30 5 X 30	N 907 965 02
3	Noise insulation Rework if necessary diesel eng.	1H0 825 235 J
4	Clamping washer 5 X 30 automatic 5 X 30	N 903 350 04
4	Clamping washer 5 X 30 automatic 5 X 30	N 907 965 02
5	hexagon head panel screw 6,5 X 19 automatic 6,5 X 19	N 015 946 1
6	Washer 6,4 X 17 X 1,6 automatic 6,4 X 17 X 1,6	N 902 076 01
7	Cover Manualgearbox+ABD,AAA,ABU,AEX AAAABUAEX	1H0 825 247
8	Clamping washer 5 X 30 5 X 30	N 903 350 04
8	Clamping washer 5 X 30 5 X 30	N 907 965 02
9	cover - v-belt	1H0 825 250 A
