Vacuum system — Mk3 Golf Engine (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Vacuum system

Generation: Mk3 1993 - 1996 (MEX) Group: Engine Rebuild step 1 Parts: 72 Primary OEM: N 020 353 5, N 020 139 1, 037 133 446 N

Vacuum system for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 133004 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 66 OEM part numbers across 72 catalogued positions including N 020 353 5, N 020 139 1 and 037 133 446 N. Parts on this plate carry the engine codes ABA and ADC. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 66 OEM part numbers across 72 numbered positions.

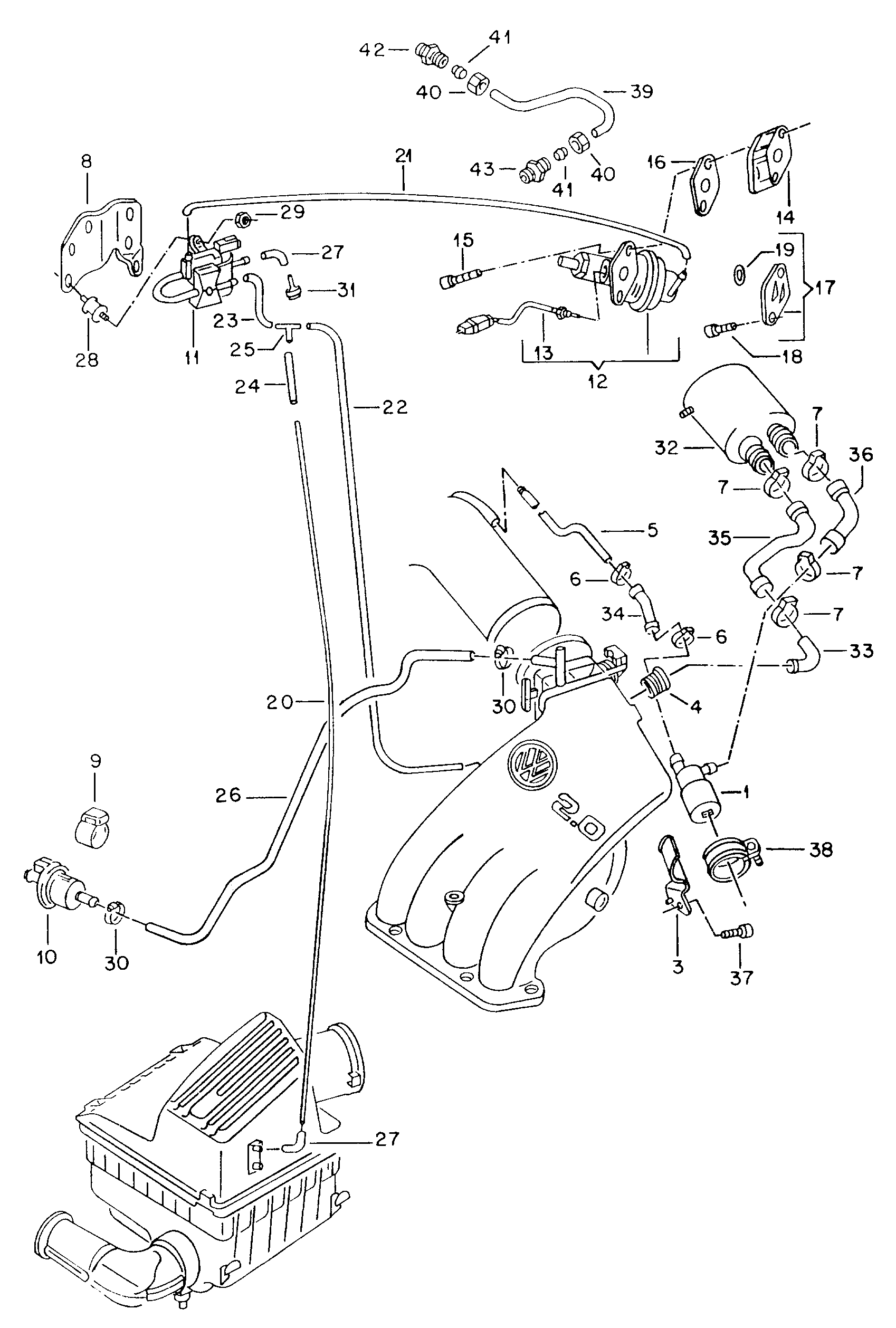

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
vacuum system 2.0 Ltr. ABA,ADC
2.0 Ltr.
ABAADC
—
-
Hose(Bulk stock) 3,5 X 2
3,5 X 2
 N 020 353 5
-
tube in coils of 5 m'order unit 5' 4 X 1
4 X 1
 N 020 139 1
-
Securing pin F >> 1 H-P-006 272
 037 133 446 N
(1)
Control valve for idlingspeed "BR."+GTI
 037 906 457 F
(1)
Control valve for idlingspeed F 1 H-P-006 273>> "MEX"+ABA,ADC
ADC
037 906 457 E
(10)
Valve F 1 H-T-000 001>> "USA"+ABA
 077 133 517 C
(26)
Connecting hose F 1 H-T-000 001>> 1 H-T-107 409 "USA"+CDN"+ABA
 1H0 133 514
(26)
Connecting hose F 1 H-T-107 410>> "USA"+CDN"+ABA
 1H0 133 514 A
(3)
Bracket F 1 H-P-006 273>>
 037 133 444
(3)
Bracket F >> 1 H-S-999 000 "CDN"+ABA"USA"+ABA
 037 133 444
(3)
Support F >> 1 H-P-006 272
 037 133 459 A
(31)
Air filter F 1 H-S-096 185>> 1 H-S-999 000 "CDN"+ABA"USA"+ABA
 037 133 843 A
(36)
angled hose F 1 H-R-029 676>> 1 H-S-999 000 F 1 H-R-029 676>> "USA"+ABA"CDN"+ABA
 021 133 374 E
(39)
Connecting pipe F >> 1 H-R-068 163 F 1 H-R-068 164>> 1 H-S-012 882 F 1 H-S-012 883>> 1 H-S-999 000 "CDN"+"MEX"+ABACALIFORNIA+ABA"USA"+ABA"USA"+ABA
 037 131 586 C
(4)
Sealing element F 1 H-P-006 273>>
 037 133 374 E
(5)
Connecting pipe F >> 1 H-P-006 272 automatic
 037 133 394 AA
(5)
Connecting pipe F >> 1 H-P-006 272 manualgearbox
 037 133 394 AD
(5)
Connecting pipe F 1 H-R-000 760>>F 1 H-R-000 760>> 1 H-S-999 000 F 1 H-P-007 110>> "CDN"+ABA"USA"+ABA"MEX"+ABA,ADC
ADC
037 133 383 AH
(9)
Thrust ring F >> 1 H-S-999 000 "CDN"+"MEX"+ABA,ADC"USA"+ABA
 051 133 459
(9)
Thrust ring F 1 H-T-000 001>> "USA"+ABA
 051 133 459 A
1
Control valve for idlingspeed F >> 1 H-P-006 272 VDO "MEX"+ABA,ADC
VDO
ADC
048 133 455
1
Control valve for idlingspeed F >> 1 H-S-999 000 "CDN"+ABA"USA"+ABA
 037 906 457 E
10
Solenoid valve F >> 1 H-S-999 000 "CDN"+"MEX"+ABA,ADC"USA"+ABA
 034 133 517
11
Valve F >> 1 H-R-068 163 F 1 H-R-068 164>> 1 H-S-999 000 "CDN"CALIFORNIA"USA"
 054 906 267 A
11
Valve F >> 1 H-R-068 163 F 1 H-R-068 164>> 1 H-S-999 000 "CDN"+"MEX"+ABA,ADCCALIFORNIA+ABA"USA"+ABA
 054 906 267 A
12
exhaust recirculation valve F >> 1 H-R-068 163 F 1 H-R-068 164>> 1 H-S-999 000 "CDN"+ABACALIFORNIA+ABA"USA"+ABA
 037 131 501
13
Temperature sensor F >> 1 H-R-068 163 F 1 H-R-068 164>> 1 H-S-999 000 "CDN"+ABACALIFORNIA+ABA"USA"+ABA
 021 906 529
14
Intermediate flange F >> 1 H-R-068 163 F 1 H-R-068 164>> 1 H-S-999 000 "CDN"+ABACALIFORNIA+ABA"USA"+ABA
 037 131 509
15
Socket head bolt withhexagon socket head F >> 1 H-R-068 163 F 1 H-R-068 164>> 1 H-S-999 000 M 6 X 60 "CDN"+ABACALIFORNIA+ABA"USA"+ABA
M 6 X 60
 N 014 722 2
16
Seal F >> 1 H-R-068 163 F 1 H-R-068 164>> 1 H-S-999 000 "CDN"+ABACALIFORNIA+ABA"USA"+ABA
 026 131 547
17
Dummy flange
 037 131 589
17
Dummy flange F >> 1 H-R-068 163 "USA"+"CDN"+ABA
 037 131 589
18
Socket head bolt withhexagon socket head F >> 1 H-R-068 163 M 6 X 15
M 6 X 15
 N 014 702 10
18
Socket head bolt withhexagon socket head M 6 X 15
M 6 X 15
 N 014 702 13
18
Socket head bolt withhexagon socket head M 6 X 15
M 6 X 15
 N 014 702 13
18
Socket head bolt withhexagon socket head M 6 X 15
M 6 X 15
 N 014 702 10
19
O-ring F >> 1 H-R-068 163 "USA"+"CDN"+ABA
 803 260 749
19
O-ring "MEX"
 803 260 749
20
shorten to: 315 MM
315 MM
 —
21
shorten to: 370 MM CALIFORNIA+ABA
370 MM
 —
22
shorten to: 360 MM
360 MM
 —
23
shorten to: 80 MM CALIFORNIA+ABA
80 MM
 —
24
shorten to: 80 MM
80 MM
 —
25
t-piece 4-4-4
4-4-4
 2D0 129 737 A
25
t-piece 4/4/4
4/4/4
 113 201 943 B
26
Vent hose F >> 1 H-S-999 000 "CDN"+"USA"+ABA"USA"+ABA
 037 133 518 C
27
angled hose 3,5 MM CALIFORNIAABA"UAS":CON"+ABA
3,5 MM
 034 133 784 L
27
angled hose F >> 1 H-R-068 163 F 1 H-R-068 164>> 3,5 MM CALIFORNIA+ABA"USA";CDN"+ABA
3,5 MM
 034 133 784
28
Bonded rubber bush F >> 1 H-R-068 163 F 1 H-R-068 164>> CALIFORNIA+ABA"USA"+"CDN"+ABA
 037 133 567 E
29
hexagon nut, self-locking F >> 1 H-R-068 163 F 1 H-R-068 164>> M 8 CALIFORNIA+ABA"USA"+"CDN"+ABA
M 8
 N 900 744 01
29
hexagon nut, self-locking F >> 1 H-R-068 163 F 1 H-R-068 164>> M 8 CALIFORNIA+ABA"USA"+"CDN"+ABA
M 8
 N 900 744 04
30
Clamp 12-22 X 9 X 0,4
12-22 X 9 X 0,4
 N 102 582 01
31
Air filter F >> 1 H-R-068 163 F 1 H-R-068 164>> 1 H-S-096 184 CALIFORNIA+ABA"USA"+"CDN"+ABA
 037 133 843 A
32
Damper F >> 1 H-S-999 000 "MEX"+"CDN"+ABA"USA"+ABA
 021 133 429 A
33
Elbow fitting F >> 1 H-S-999 000 "MEX"+"CDN"+ABA"USA"+ABA
 037 133 732
34
angled hose F >> 1 H-S-999 000 "MEX"+"CDN"+ABA"USA"+ABA
 037 133 783 P
35
angled hose F >> 1 H-S-999 000 "MEX"+"CDN"+ABA"USA"+ABA
 037 133 783 Q
36
angled hose F >> 1 H-R-002 746
 037 133 783 R
37
Socket head bolt withhexagon socket head F >> 1 H-S-999 000 M 6 X 15 "CDN"+MEX"+ABA"USA"+ABA
M 6 X 15
 N 014 702 10
37
Socket head bolt withhexagon socket head M 6 X 15 "CDN"+MEX"+ABA"USA"+ABA
M 6 X 15
 N 014 702 13
38
Clamp F >> 1 H-S-999 000 "CDN"+"MEX"+ABA"USA"+ABA
 N 103 018 01
38
Clamp F 1 H-P-006 273>>
 N 103 018 01
4
Sealing element F >> 1 H-P-006 272
 037 133 406
4
Sealing element F >> 1 H-S-999 000 "CDN"+AB"USA"+ABA
 037 133 374 E
40
Union nut F 1 H-S-012 883>> 1 H-S-999 000 10 "CDN"+ABA"USA"+ABA
10
 N 021 023 4
41
die ring F 1 H-S-012 883>> 1 H-S-999 000 10 "CDN"+ABA"USA"+ABA
10
 N 020 822 1
42
connection piece F 1 H-S-012 883>> 1 H-S-999 000 10 "CDN"+ABA"USA"+ABA
10
 N 020 802 1
43
threaded union F 1 H-S-012 883>> 1 H-S-999 000 "CDN"+ABA"USA"+ABA
 067 131 507
6
Clamp F >> 1 H-S-999 000 23-35 X 9 X 0,5 "CDN"+"MEX"+ABA,ADC"USA"+ABA
23-35 X 9 X 0,5
 N 102 581 01
7
Clamp F >> 1 H-S-999 000 23-35 X 9 X 0,5 "CDN"+"MEX"+ABA.ADC"USA"+ABA
23-35 X 9 X 0,5
 N 102 581 01
8
Bracket F >> 1 H-R-068 163 F 1 H-R-068 164>> 1 H-S-999 000 "CDN"+ABACALIFORNIAABA"USA"+ABA
 037 133 519 K

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk3
Model years
1993 - 1996
Generation region
MEX
Generation code
128
Engine codes on this plate
ABA, ADC
Variant tags
petrol_8v_gti_or_gl
Factory group
01 Engine
Factory subgroup
133004

Related factory diagrams

Other published engine plates for the Mk3 Golf in this catalogue.

The complete Mk3 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the vacuum system diagram for the Mk3 Golf?
This diagram lists 66 OEM part numbers for the Mk3 Golf. The first three are N 020 353 5, N 020 139 1 and 037 133 446 N.
Which Mk3 Golf years and engines does this diagram cover?
This plate is from the Mk3 Golf 1993 - 1996 generation (MEX). The parts on it carry the engine codes ABA and ADC.
Where is the complete Mk3 Golf factory parts catalogue?
The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
