Which VW part numbers are on the vacuum system diagram for the Mk3 Golf?

This diagram lists 9 OEM part numbers for the Mk3 Golf. The first three are 034 133 517, 1HM 129 623 A and 037 906 457 E.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1993 - 1996 generation (MEX). The parts on it carry the engine code ADD.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Vacuum system — Mk3 Golf Engine (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Vacuum system

Generation: Mk3 1993 - 1996 (MEX) Group: Engine Rebuild step 1 Parts: 12 Primary OEM: 034 133 517, 1HM 129 623 A, 037 906 457 E

Vacuum system for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 133010 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 9 OEM part numbers across 12 catalogued positions including 034 133 517, 1HM 129 623 A and 037 906 457 E. Parts on this plate carry the engine code ADD. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 9 OEM part numbers across 12 numbered positions.

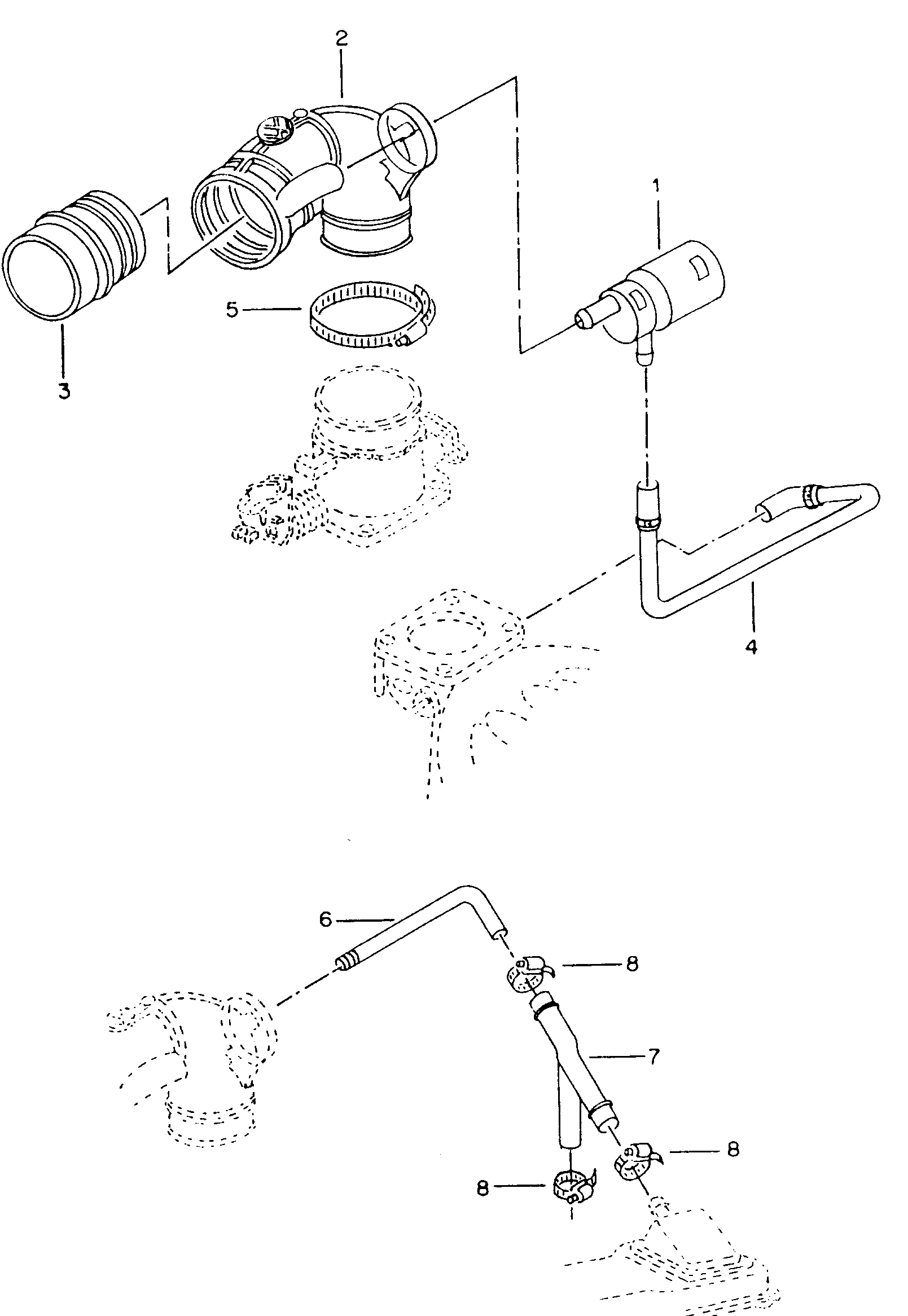

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	vacuum system 1.8 ltr. ADD 1.8 ltr. ADD	—
-	Solenoid valve	034 133 517
(3)	Connecting pipe	1HM 129 623 A
1	Control valve for idlingspeed	037 906 457 E
2	Connecting hose	1HM 133 649
2-4	No longer available	—
4	Pipe	1HM 133 374
5	Hose clamp 60-80 X 9 X 0,5 60-80 X 9 X 0,5	N 024 522 3
6	Breather line	1HM 103 493
6	No longer available	—
7	Vent hose	1HM 103 493 A
8	Clamp 23-35 X 9 X 0,5 23-35 X 9 X 0,5	N 102 581 01

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1993 - 1996
Generation region: MEX
Generation code: 128
Engine codes on this plate: ADD
Variant tags: petrol_8v_gti_or_gl
Factory group: 01 Engine
Factory subgroup: 133010
