Which VW part numbers are on the windbreak diagram for the Mk3 Golf?

This diagram lists 7 OEM part numbers for the Mk3 Golf. The first three are 1E0 862 959, 141 871 439 B and N 016 199 2.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1994 - 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Windbreak — Mk3 Golf Front Door (1994 - 1997)

Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Central locking system for doors

Generation: Mk3 1994 - 1997 (RDW) Group: Front door Parts: 7 Primary OEM: 1E0 862 959, 141 871 439 B, N 016 199 2

Windbreak for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 862030 from the Volkswagen ETKA parts catalogue, group 37 Front door, listing 7 OEM part numbers including 1E0 862 959, 141 871 439 B and N 016 199 2. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 7 OEM part numbers across 7 numbered positions.

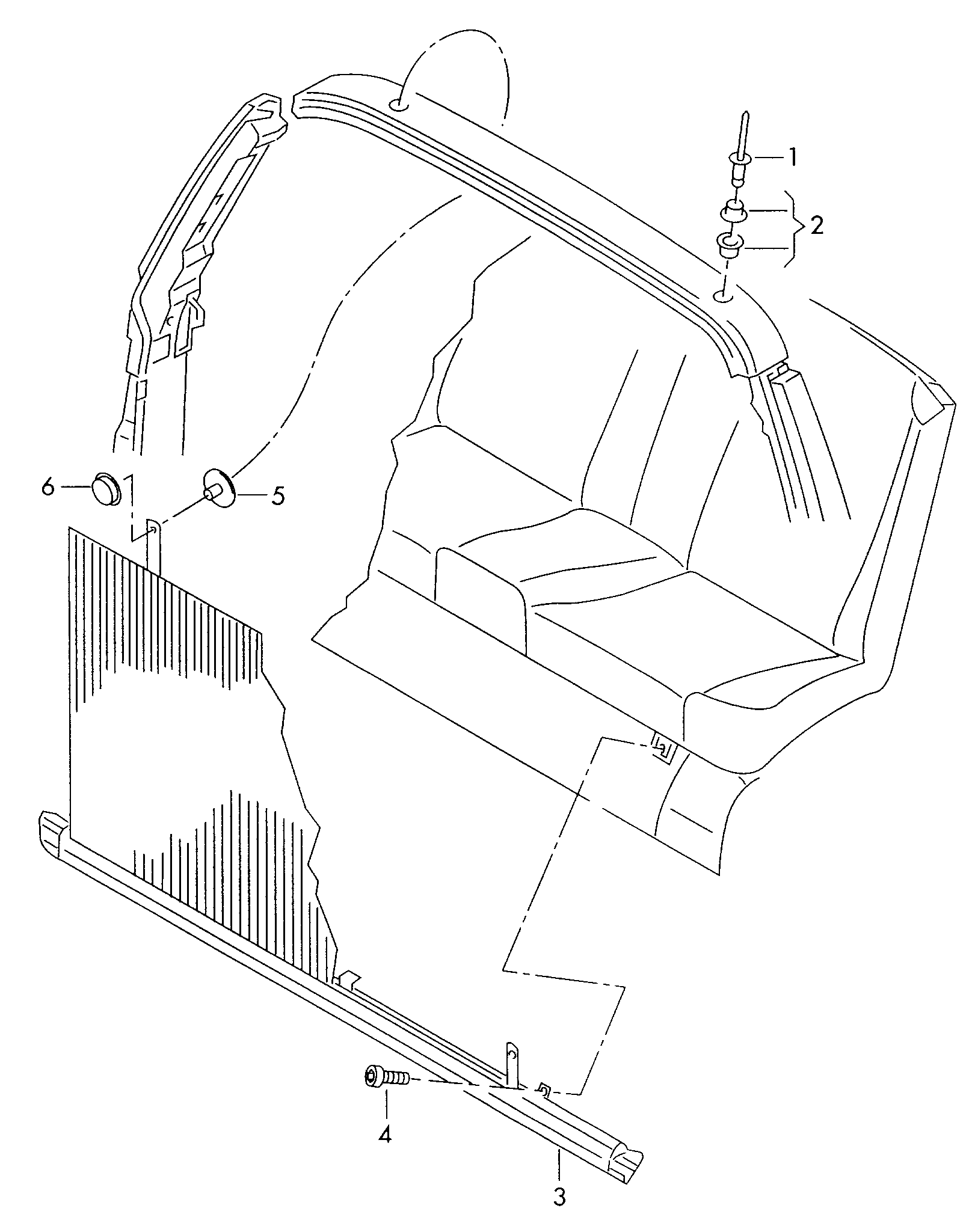

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Bracket Windbreak	1E0 862 959
(5)	Pushbutton cap	141 871 439 B
1	Pop rivet 3,2 X 10 3,2 X 10	N 016 199 2
2	Supportpress stud	1E0 862 961
3	Windbreak	1E0 862 953
4	Socket head bolt withhexagon socket head M 6 X 20 M 6 X 20	N 014 704 2
6	press stud-spring part	141 871 440 B

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these front door diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1994 - 1997
Generation region: RDW
Generation code: 146
Factory group: 37 Front door
Factory subgroup: 862030
