Which VW part numbers are on the doors door hinge door seal door catch front diagram for the Mk3 Golf?

This diagram lists 59 OEM part numbers for the Mk3 Golf. The first three are 3B0 837 111 B 41, 1H0 837 111 A B 41 and 1H0 837 947.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Doors door hinge door seal door catch front — Mk3 Golf Front Door (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Door hinge. doors. Door catch. Door seal

Generation: Mk3 1997 (RDW) Group: Front door Parts: 61 Primary OEM: 3B0 837 111 B 41, 1H0 837 111 A B 41, 1H0 837 947

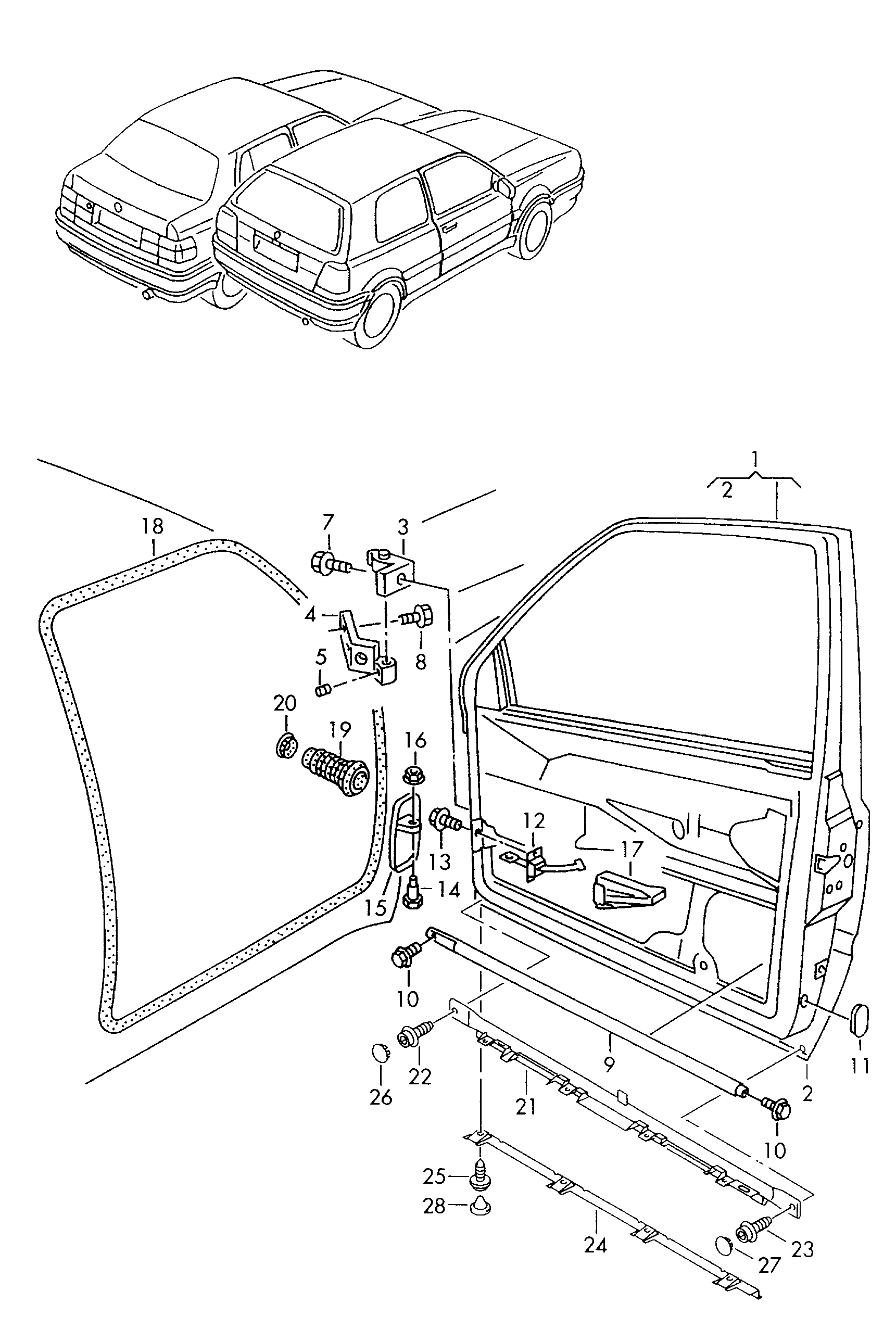

Doors door hinge door seal door catch front for the Volkswagen Golf Mk3 (1997): factory exploded diagram 831010 from the Volkswagen ETKA parts catalogue, group 37 Front door, listing 59 OEM part numbers across 61 catalogued positions including 3B0 837 111 B 41, 1H0 837 111 A B 41 and 1H0 837 947. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 59 OEM part numbers across 61 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	3B0 837 111 B 41
	Satin black	1H0 837 111 A B 41
-	Cover cap	1H0 837 947
-	Door seal see illustration: 837-060 837-060	—
-	1 set attachment partsdoors	1H0 898 619
-	Alu-lamin.insulation(self-adhesive) 500 X 250 X 1,6 500 X 250 X 1,6	D 378 500 A2
-	Damping'bestelleinheit 6' 550 X 250 X 2 550 X 250 X 2	323 863 950
-	Bungs 16 16	3B0 837 111
-	Bungs	1H0 837 111 A
(1)	Doorfor models withside airbag use if required:for models withoutside airbag use if required: 1 H 0 837 798 N 020 024 11 H 0 898 619 1 H 0 837 798 N 020 024 11 H 0 898 619	1H4 831 056
(1)	Door	1H3 831 055
(1)	Door use if required: 1 H 0 837 798 N 020 024 11 H 0 898 619 1 H 0 837 798 N 020 024 11 H 0 898 619	1H3 831 055 A
(1)	Doorfor models withside airbag use if required:for models withoutside airbag use if required: 1 H 0 837 798 N 020 024 11 H 0 898 619 1 H 0 837 798 N 020 024 11 H 0 898 619	1H4 831 055
(1)	Door	1H4 831 051 J
(1)	Door	1H4 831 052 J
(12)	Door catch "J.."	1H0 837 249 A
(21)	side reinforcement	1H4 831 513
(21)	side reinforcement	1H3 831 514
(21)	side reinforcement	1H3 831 513
(24)	impact profilefor models withside airbag	1H4 837 965
(24)	impact profilefor models withside airbag	1H3 837 966
(24)	impact profilefor models withside airbag	1H3 837 965
(3)	hinge half	1H0 831 403
(4)	Securing plate for doorhinge	1H0 831 409 A
(4)	Securing plate for doorhinge	1H0 831 410 A
(4)	Securing plate for doorhinge	1H0 831 409 D
(9)	side reinforcement	1H3 831 505 A
1	Door	1H3 831 056
1	Doorfor models withside airbag use if required:for models withoutside airbag use if required: 1 H 0 837 798 N 020 024 11 H 0 898 619 1 H 0 837 798 N 020 024 11 H 0 898 619	1H3 831 056 A
10	Hex socket head collared bolt M 8 X 18-H M 8 X 18-H	N 905 945 01
10	Hex socket head collared bolt M 8 X 18 M 8 X 18	N 905 945 02
11	Cover cap	191 837 865
12	Door catch	1H0 837 249
13	Hex collared bolt M 6 X 20 M 6 X 20	N 902 803 02
13	hexagon head bolt (combi) M 6 X 20 M 6 X 20	N 905 330 02
14	Pin	1H0 837 257
15	Cover	1H0 837 267
16	Locknut M 5 M 5	191 837 270
17	Protective sleeve	1H0 837 323
18	door seal, inner Shorten if necessary 3770 MM 3770 MM	1H3 867 365 D
19	Bellows 48,5/36/66 48,5/36/66	1H0 971 916 A
19	Bellows 48,5/36/66 48,5/36/66	1H0 971 916 B
2	Door shell No replacement part	—
20	Bungs 48 MM 48 MM	357 971 908 A
21	side reinforcement	1H4 831 514
22	Hex socket head collared bolt M 10 X 18 M 10 X 18	N 907 703 01
23	Hex socket head collared bolt M 8 X 18-H M 8 X 18-H	N 905 945 01
23	Hex socket head collared bolt M 8 X 18 M 8 X 18	N 905 945 02
24	impact profilefor models withside airbag	1H4 837 966
25	Oval hexagon socket head bolt M 6 X 16 M 6 X 16	N 905 666 02
25	Oval hexagon socket head bolt M 6 X 16-H-V M 6 X 16-H-V	N 905 666 01
26	Bungs	1H0 837 798
27	Bungs 10 X 1 X 12 10 X 1 X 12	N 020 024 1
28	Bungs 10 X 1 X 12 10 X 1 X 12	N 020 024 1
3	hinge half	1H0 831 404
4	Securing plate for doorhinge	1H0 831 410 B
5	threaded pin M 8 X 12 M 8 X 12	N 903 555 03
5	threaded pin M 8 X 12 M 8 X 12	N 903 555 02
7	Hex socket head collared bolt M 8 X 24 M 8 X 24	N 905 271 01
8	Hex socket head collared bolt M 8 X 33 M 8 X 33	N 905 564 01
9	side reinforcement	1H4 831 505 A

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these front door diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 37 Front door
Factory subgroup: 831010
