Central locking system tailgate fuel filler flap — Mk3 Golf Front Door (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Central locking system for doors

Generation: Mk3 1997 (RDW) Group: Front door Parts: 10 Primary OEM: 1H6 962 275, 1H0 962 257 G, 7M0 955 961 B

Central locking system tailgate fuel filler flap for the Volkswagen Golf Mk3 (1997): factory exploded diagram 862010 from the Volkswagen ETKA parts catalogue, group 37 Front door, listing 10 OEM part numbers including 1H6 962 275, 1H0 962 257 G and 7M0 955 961 B. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 10 OEM part numbers across 10 numbered positions.

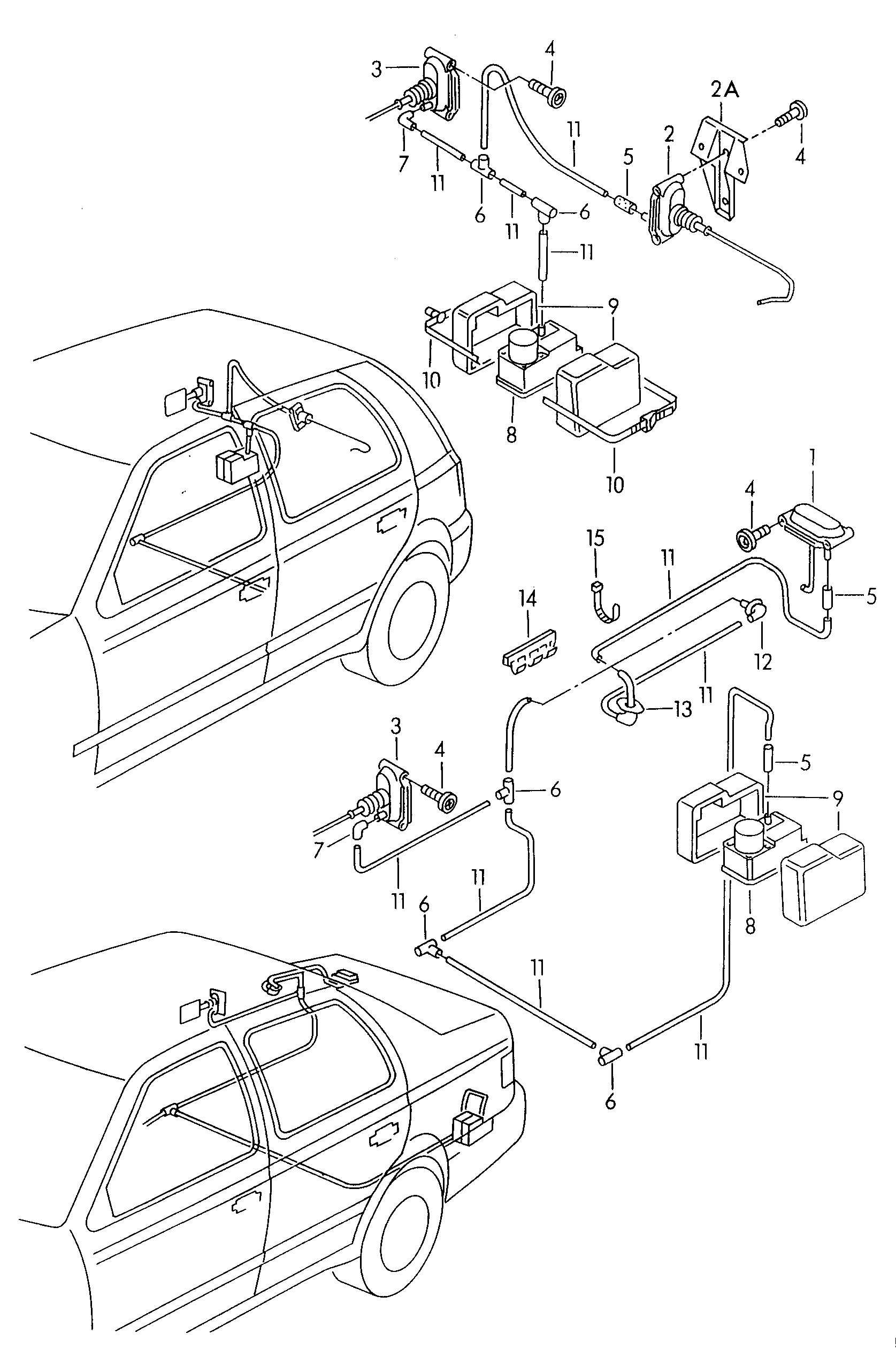

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
(10)	tensioning strap 210 MM 210 MM	1H6 962 275
(8)	pump with control unit	1H0 962 257 G
11	Pipe 5 X 1 X 6000 MM 5 X 1 X 6000 MM	7M0 955 961 B
2	operating valve Rear lid	1H6 862 159 A
3	operating valve Fuel filler flap	1H0 862 160 A
4	Plastic slotted screw 4,2 X 16 4,2 X 16	433 862 195
5	Hose 3,5 X 540 3,5 X 540	533 862 225
6	t-piece	447 711 758
7	Elbow fitting	357 862 232
9	sound absorber for pump	1H0 962 262
