Which VW part numbers are on the door lock inner actuator door handle exterior diagram for the Mk3 Golf?

This diagram lists 81 OEM part numbers for the Mk3 Golf. The first three are 6N0 837 219 J I NB, 1E0 837 207 3 FZ and 1E0 837 208 3 FZ.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1994 - 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Door lock inner actuator door handle exterior — Mk3 Golf Front Door (1994 - 1997)

Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Door lock. Inner actuator. Door handle, exterior

Generation: Mk3 1994 - 1997 (RDW) Group: Front door Parts: 84 Primary OEM: 6N0 837 219 J I NB, 1E0 837 207 3 FZ, 1E0 837 208 3 FZ

Door lock inner actuator door handle exterior for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 837010 from the Volkswagen ETKA parts catalogue, group 37 Front door, listing 81 OEM part numbers across 84 catalogued positions including 6N0 837 219 J I NB, 1E0 837 207 3 FZ and 1E0 837 208 3 FZ. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 81 OEM part numbers across 84 numbered positions.

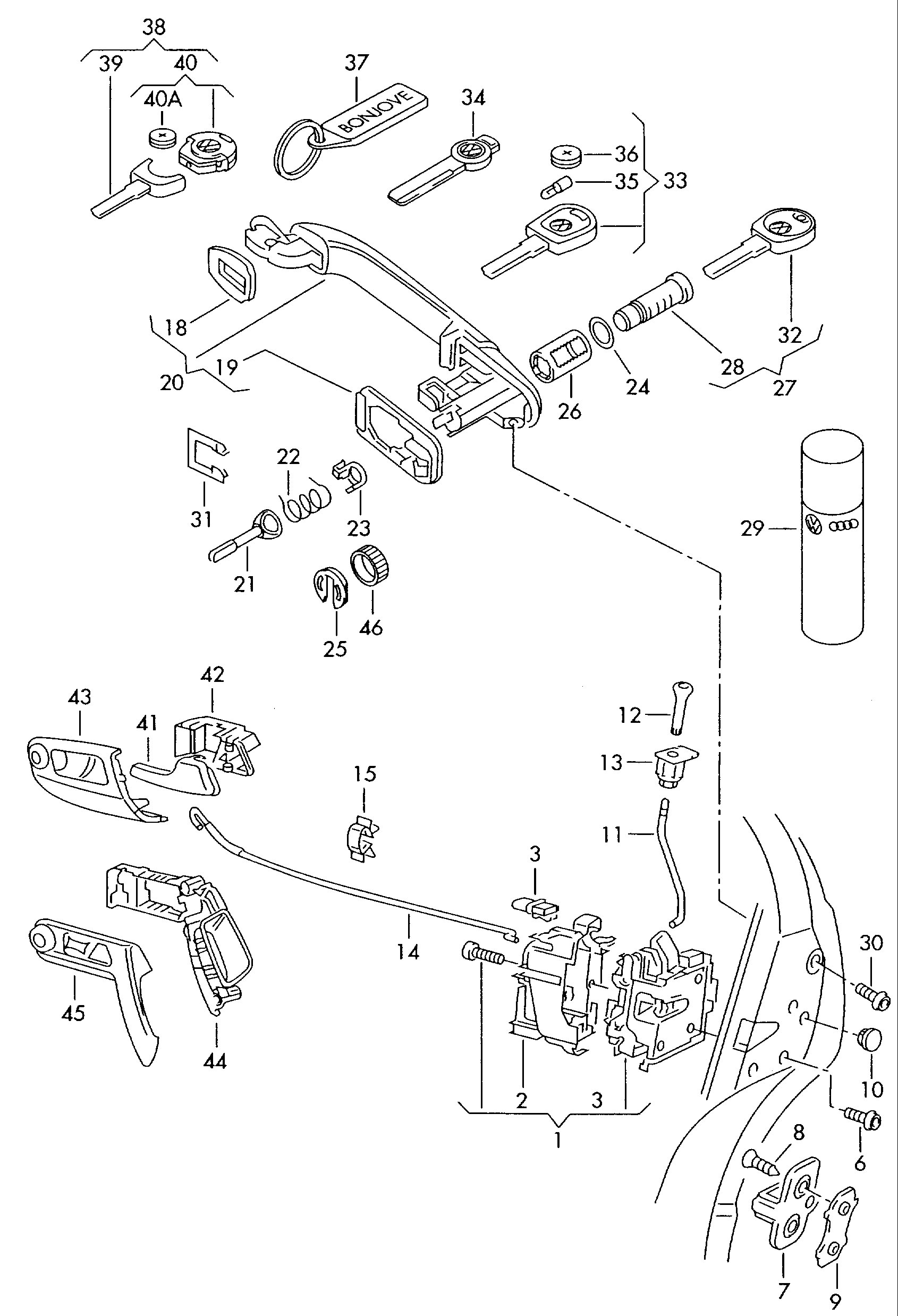

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Inner rail section	6N0 837 219 J I NB
	Satin black	1E0 837 207 3 FZ
	Satin black	1E0 837 208 3 FZ
	black/silver	1H0 837 244 9 ZS
	Satin black	1H0 837 187 A 0 1C
	Inner rail section	6N0 837 216 A I NB
	Inner rail section	6N0 837 219 H I NB
	Inner rail section	6N0 837 219 D I NB
	Satin black	3B0 837 111 B 41
	Inner rail section	1E0 837 219 B I NB
	Satin black	1H0 837 225 B 41
	Inner rail section	6N0 837 219 J I NB
	chrome	1E0 837 226 2 ZZ
	pebble grey	1H0 837 225 Y 01
	Inner rail section	1E0 837 219 I NB
	pebble grey	1H0 837 226 Y 01
	Satin black	1H0 837 226 B 41
	chrome	1E0 837 225 2 ZZ
-	1 set lock cylinders fordoor handle, rear flap,ignition switch, glovecompartment lid forvariable code transponder	1E0 800 375 AP
(1)	Door lock	1H2 837 015 H
(1)	Door lock For vehicle withoutcentral lockingfor models with electricallyoperated windows	1H2 837 016 N
(1)	Door lockfor vehicles with centrallocking system also use: 8 D 0 862 245 8 D 0 862 245	1H2 837 016 M
(1)	Door lock	1H2 837 016 L
(1)	Door lockfor vehicles with centrallocking system	1H1 837 015 N
(1)	Door lock For vehicle withoutcentral lockingfor models with electricallyoperated windows	1H1 837 015 P
(1)	Door lock	1H1 837 015 M
(1)	Door lock	1H1 837 016 L
(1)	Door lockfor vehicles with centrallocking system also use: 8 D 0 862 245 8 D 0 862 245	1H2 837 015 J
(11)	locking rod fordoor lock	1H3 837 183
(14)	pull rod	1H3 837 193 A
(20)	Door handle, exterior	1E0 837 207
(22)	torsion spring	6N0 837 229 A
(24)	seal ring	7M0 837 227
(3)	Micro switchfor vehicles with centrallocking systemfor models with electricallyoperated windows	1H2 962 103
(32)	main key with variable codetransponder When ordering, provide vehicleidentification number. WFS-2 WFS-2	6N0 837 219 H
(32)	main key with variable codetransponder* When ordering, indicate* key and/or vehicle* identification number. WFS-2 WFS-2	6N0 837 219 D
(33)	main key with light andvariable codetransponder* When ordering, indicate* key and/or vehicle* identification number.	1E0 837 219 B
(33)	main key with light andvariable codetransponder When ordering, provide vehicleidentification number. WFS-2 WFS-2	6N0 837 219 J
(41)	Inner actuator	1H0 837 225
(41)	Inner actuator	1E0 837 225
(41)	Inner actuator	1E0 837 226
(42)	Housing for inner actuator	1H0 837 142
1	Door lockfor vehicles with centrallocking system	1H1 837 016 M
1	Door lockfor vehicles with centrallocking systemfor models with electricallyoperated windows	1H1 837 016 M
10	Bungs 16 16	3B0 837 111
11	locking rod fordoor lock	1H3 837 184
12	knob for locking rod	1H0 837 187 A
13	see illustration: 867-000 867-000	—
14	pull rod	1H3 837 194 A
15	Clip	321 837 199
18	Underlay	1H0 837 209
19	Underlay	1E0 837 211
2	throttle control elementfor vehicles with centrallocking system see illustration: 862-000 862-000	—
20	Door handle, exterior	1E0 837 208
21	Eccentric	1E0 837 223
23	Follower	1E0 837 237
25	Retaining washer	6N0 837 313
26	Sleeve	1H0 837 284
26	Sleeve	7M0 837 284
27	lock cylinder withkeys	1H0 837 217 D
28	Lock cylinder withoutkey* to retain the one key* system the key code* number must be quoted* when ordering	107 837 217 DA
28	Lock cylinder withoutkey* to retain the one key* system the key code* number must be quoted* when ordering	107 837 217 EA
29	Lock cylinder grease spray Service fluid 50 ML 50 ML	G 052 778 A2
3	Micro switchfor vehicles with centrallocking systemfor models with electricallyoperated windows	1H0 962 103
30	Oval hexagon socket head bolt M 6 X 12 M 6 X 12	N 905 988 04
31	Clip	357 837 242
33	main key with light andvariable codetransponder When ordering, provide vehicleidentification number. WFS-2 WFS-2	6N0 837 219 J
33	main key with light and fixedcode transponder* When ordering, indicate* key and/or vehicle* identification number.	1E0 837 219
34	emergency key with variablecode transponder When ordering, provide vehicleidentification number. WFS-2 WFS-2	6N0 837 216 A
35	bulb 1,5 V/0,09 A 1,5 V/0,09 A	N 903 145 01
35	bulb 1,5 V/0,09 A 1,5 V/0,09 A	N 903 145 02
36	micro-cell battery 1,5 V 1,5 V	N 902 624 01
37	Badge 'BON JOVI'	1H0 837 244
41	Inner actuator	1H0 837 226
42	Housing for inner actuator	1H0 837 141
43	see illustration: 867-000 867-000	—
46	Mounting	6N0 837 634
6	Oval hexagon socket head bolt M 6 X 12 M 6 X 12	N 905 988 04
7	Lock striker	1H0 837 034 E
7	Lock striker	1H0 837 034 D
7	Lock striker	1H0 837 034 C
8	oval head countersunk bolt M 8 X 22 M 8 X 22	N 102 349 01
9	Threaded plate	6N0 809 237
9	Threaded plate	1H0 809 237

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these front door diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1994 - 1997
Generation region: RDW
Generation code: 146
Factory group: 37 Front door
Factory subgroup: 837010
