Window regulator front — Mk3 Golf Front Door (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Door lock. Inner actuator. Door handle, exterior

Generation: Mk3 1997 (RDW) Group: Front door Parts: 50 Primary OEM: 1H0 837 581 B T 21, 1H3 837 471 A B 41, 1H0 837 581 B B 41

Window regulator front for the Volkswagen Golf Mk3 (1997): factory exploded diagram 837060 from the Volkswagen ETKA parts catalogue, group 37 Front door, listing 49 OEM part numbers across 50 catalogued positions including 1H0 837 581 B T 21, 1H3 837 471 A B 41 and 1H0 837 581 B B 41. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 49 OEM part numbers across 50 numbered positions.

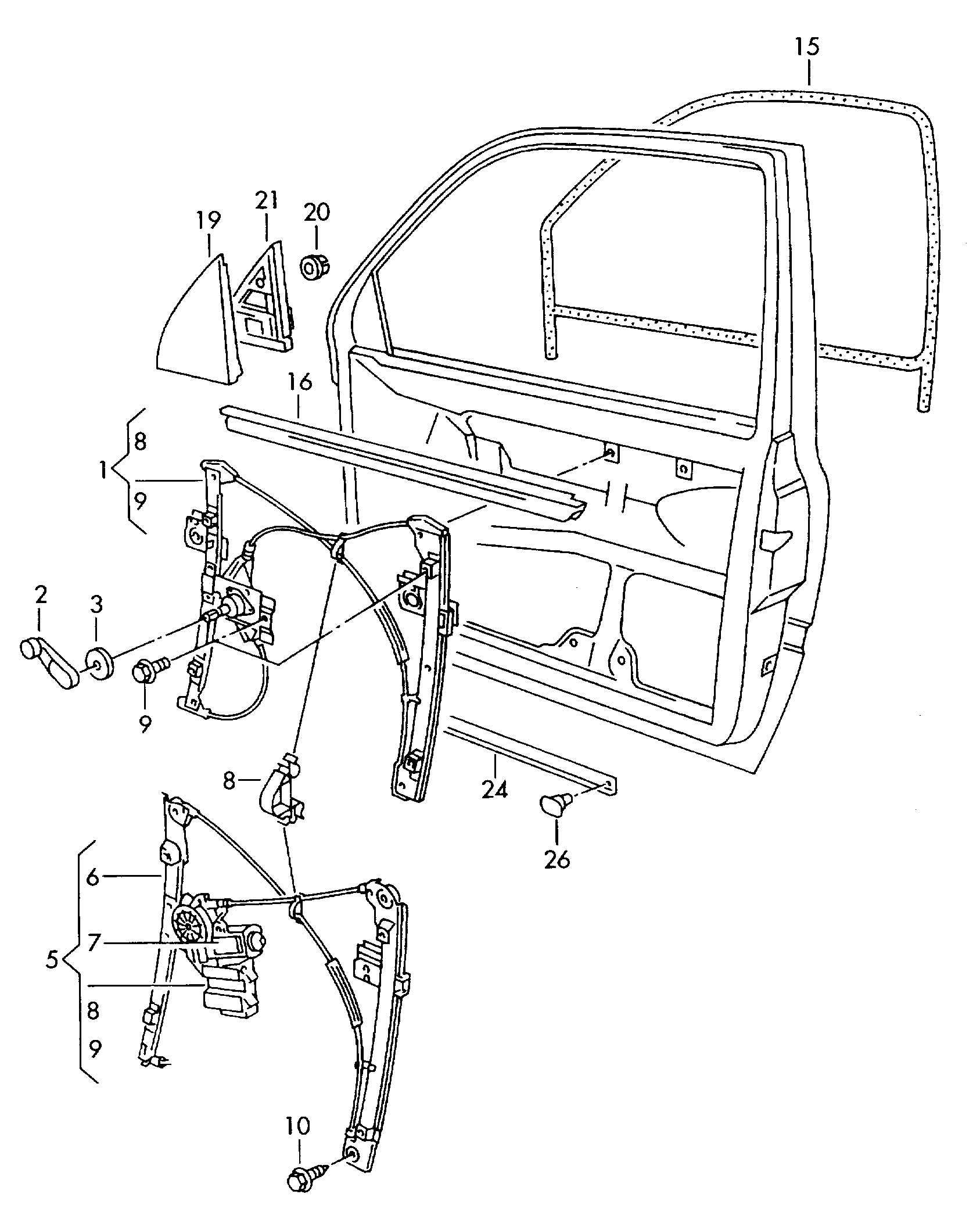

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	beaver	1H0 837 581 B T 21
	Satin black	1H3 837 471 A B 41
	Satin black	1H0 837 581 B B 41
	pebble grey	1H0 837 581 B Y 01
	beaver	1H0 837 581 D T 21
	pebble grey	1H0 837 581 D Y 01
	Satin black	1H0 837 993 B B 41
	Satin black	1H0 837 994 B B 41
	soft black	1H0 837 993 B C 82
	soft black	1H0 837 994 B C 82
	Satin black	1H0 837 581 D B 41
	Satin blackmodify in workshop	1H3 837 472 A B 41
	Satin black	1H3 837 472 A B 41
	Satin blackmodify in workshop	1H3 837 471 A B 41
-	press stud 9 X 3 X 22 9 X 3 X 22	N 900 948 01
(1)	Window regulatorwith mechanical operation	1H0 837 401 B
(15)	Window guide	1H4 837 432
(15)	Window guide	1H3 837 431
(15)	Window guide	1H4 837 431
(16)	Window aperture seal	1H3 837 471 A
(19)	Trim	1H0 837 993 B
(19)	Trim	1H0 837 993 B
(21)	Sealing element	1H0 837 985 A
(24)	Door seal PR:6 U 1	1H3 837 713 A
(24)	Door seal PR:6 U 1	1H4 837 713 A
(24)	Door seal PR:6 U 1	1H3 837 714 A
(6)	Window regulator without motor	1H0 837 461 A
(7)	Window regulator motor	1H0 959 801 A
(7)	Window regulator motor F >> 1 H-VB 240 000F >> 1 H-VD 260 000F >> 1 H-VP 480 000F >> 1 H-VW 720 000 "J..","AUS"	1H0 959 801
(7)	Window regulator motor F 1 H-VB 240 001>>F 1 H-VD 260 001>>F 1 H-VP 480 001>>F 1 H-VW 720 001>> "J..","AUS"	1H0 959 801 A
(7)	Window regulator motor F >> 1 H-VB 240 000F >> 1 H-VD 260 000F >> 1 H-VP 480 000F >> 1 H-VW 720 000 "J..","AUS"	1H0 959 802
(7)	Window regulator motor F 1 H-VB 240 001>>F 1 H-VD 260 001>>F 1 H-VP 480 001>>F 1 H-VW 720 001>> "J..","AUS"	1H0 959 802 A
1	Window regulatorwith mechanical operation	1H0 837 402 B
10	Hexagon bolt M 6 X 10 M 6 X 10	N 905 293 01
10	Hexagon bolt M 6 X 10 K M 6 X 10 K	N 010 210 7
15	Window guide	1H3 837 432
16	Window aperture seal	1H3 837 472 A
19	Trim	1H0 837 994 B
19	Trim	1H0 837 994 B
2	window crank	1H0 837 581 D
2	window crank	1H0 837 581 B
20	Spreader rivet	865 853 231 A
21	Sealing element	1H0 837 986 A
24	Door seal 2 ECHTS UNTEN PR:6 U 1 2 ECHTS UNTEN	1H4 837 714 A
26	Clip PR:6 U 1	1H0 837 719
3	Seal 60 X 20 X 15 60 X 20 X 15	411 837 447
5	No longer available	—
6	Window regulator without motor	1H0 837 462 A
7	Window regulator motor	1H0 959 802 A
9	bolt, hex. hd. with shoulder,self-locking M 6 X 10 M 6 X 10	N 014 340 1

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these front door diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 37 Front door
Factory subgroup: 837060
