Central locking system doors — Mk3 Golf Front Door (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Central locking system for doors

Generation: Mk3 1997 (RDW) Group: Front door Parts: 14 Primary OEM: 8D0 862 245, 533 862 225, 1H0 862 153

Central locking system doors for the Volkswagen Golf Mk3 (1997): factory exploded diagram 862000 from the Volkswagen ETKA parts catalogue, group 37 Front door, listing 9 OEM part numbers across 14 catalogued positions including 8D0 862 245, 533 862 225 and 1H0 862 153. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 9 OEM part numbers across 14 numbered positions.

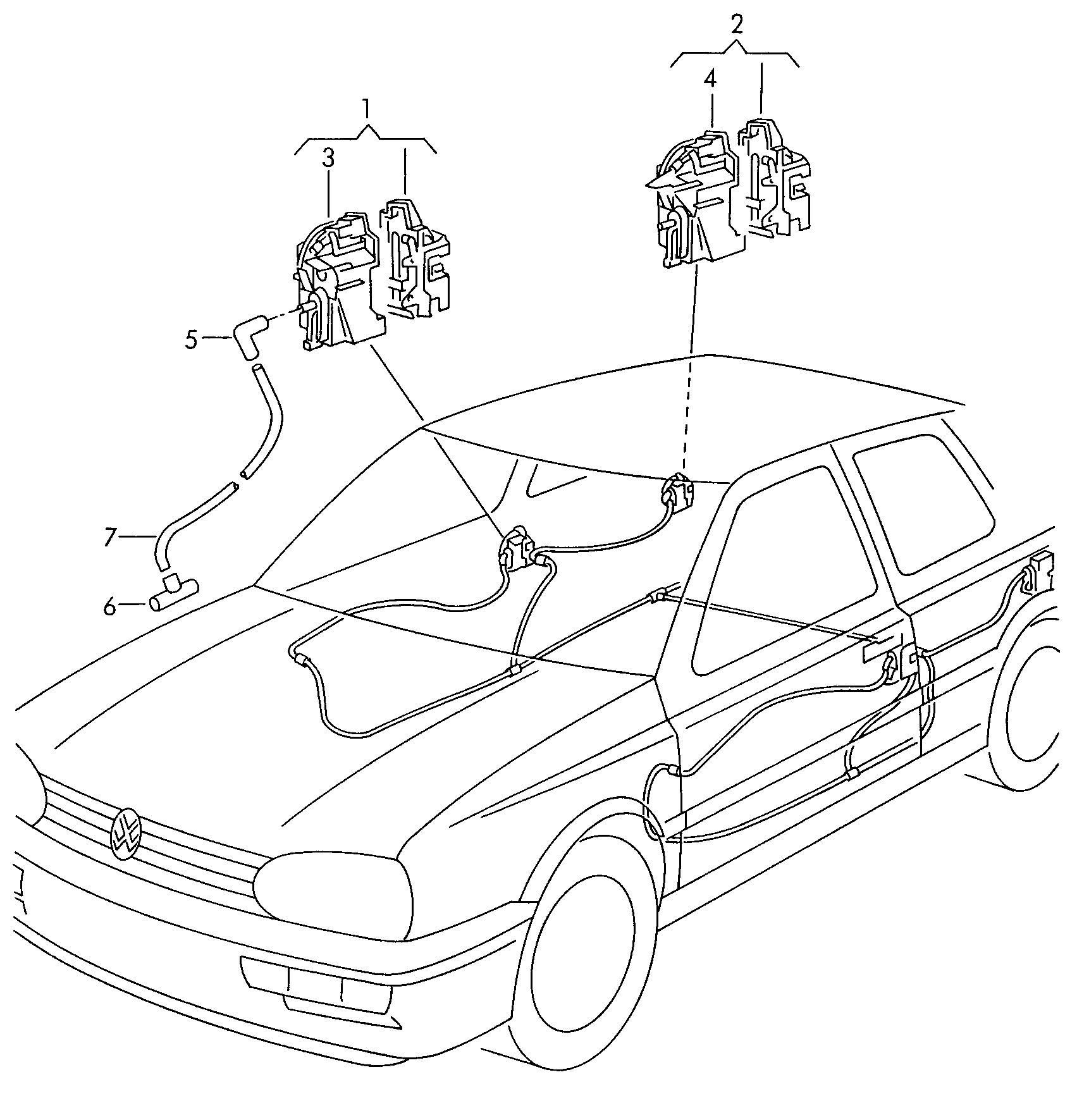

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Pipe Adaptermodify in workshop also use: 1450 MM 533 862 225 1450 MM 533 862 225	8D0 862 245
-	Hose 3,5 X 540 3,5 X 540	533 862 225
-	Hosea-pillar, inner 3,5 X 540 3,5 X 540	533 862 225
(3)	throttle control element	1H0 862 153
(4)	throttle control element	1H4 862 153
(4)	Door lock withservomotor see illustration: 839-000 839-000	—
1	Door lock withservomotor see illustration: 837-000 837-000	—
2	Door lock withservomotor see illustration: 839-000 839-000	—
3	throttle control element	1H0 862 154
3	Door lock withservomotor see illustration: 837-000 837-000	—
4	Door lock withservomotor see illustration: 839-000 839-000	—
5	Elbow fitting	357 862 232
6	t-piece	447 711 758
7	Pipe 5 X 1 X 6000 MM 5 X 1 X 6000 MM	7M0 955 961 B
