Which VW part numbers are on the door lock inner actuator door handle exterior front diagram for the Mk3 Golf?

This diagram lists 89 OEM part numbers for the Mk3 Golf. The first three are 1H0 837 225 Y 01, 1H0 837 225 T 21 and 1H0 837 244 9 ZS.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Door lock inner actuator door handle exterior front — Mk3 Golf Front Door (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Door lock. Inner actuator. Door handle, exterior

Generation: Mk3 1997 (RDW) Group: Front door Parts: 92 Primary OEM: 1H0 837 225 Y 01, 1H0 837 225 T 21, 1H0 837 244 9 ZS

Door lock inner actuator door handle exterior front for the Volkswagen Golf Mk3 (1997): factory exploded diagram 837000 from the Volkswagen ETKA parts catalogue, group 37 Front door, listing 89 OEM part numbers across 92 catalogued positions including 1H0 837 225 Y 01, 1H0 837 225 T 21 and 1H0 837 244 9 ZS. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 89 OEM part numbers across 92 numbered positions.

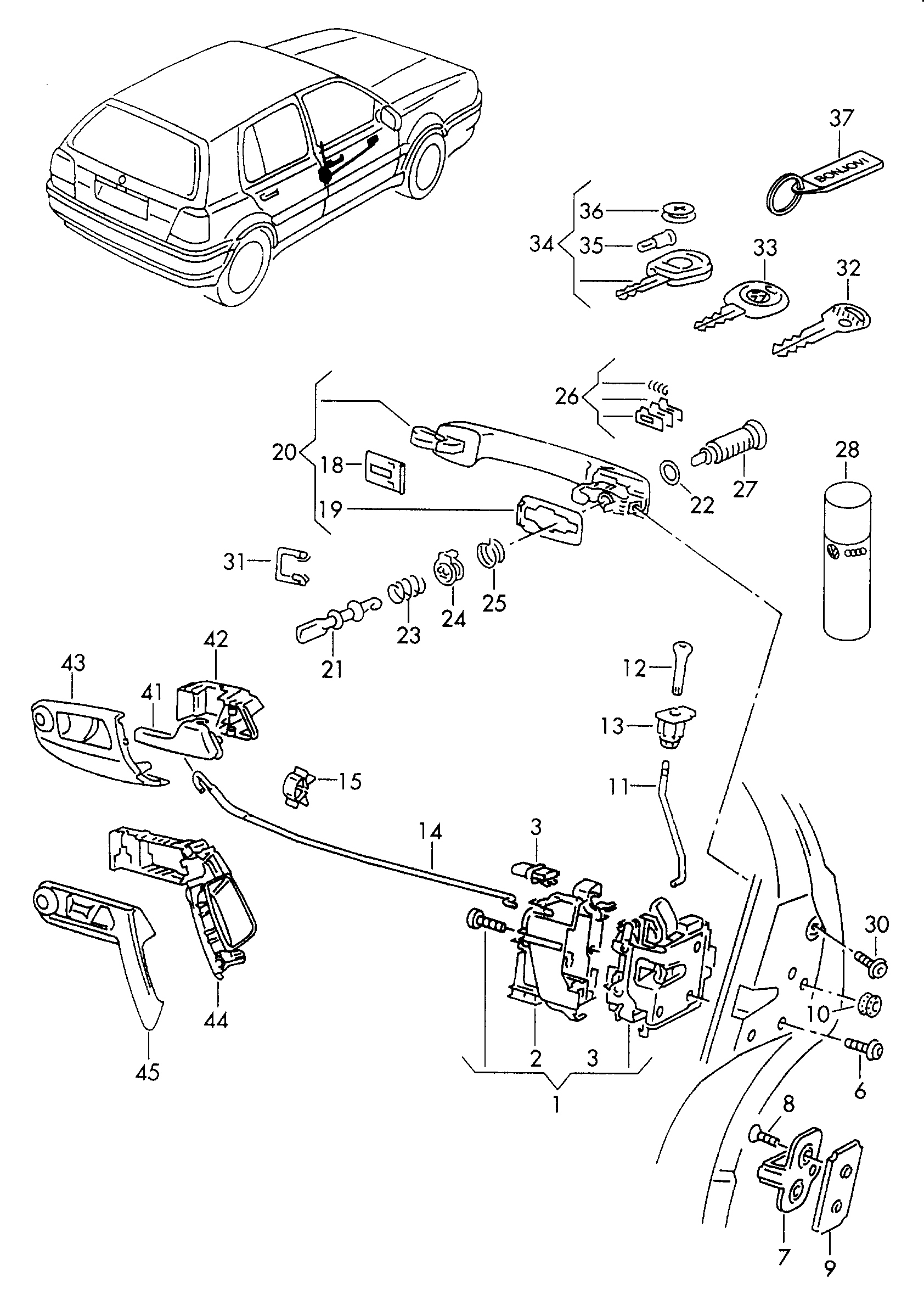

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	pebble grey	1H0 837 225 Y 01
	beaver	1H0 837 225 T 21
	black/silver	1H0 837 244 9 ZS
	Blank	1H0 837 219 A R OH
	External key way profile* When ordering, indicate* key AND vehicle* identification number.	1H0 837 219 A A UB
	Satin black	1H0 837 225 B 41
	Satin black	1H0 837 111 A B 41
	Blank	6N0 837 219 R OH
	Satin black	3B0 837 111 B 41
	Satin black	1H0 837 207 B 3 FZ
	Satin black	1H0 837 187 A 0 1C
	External key way profile* When ordering, indicate* key AND vehicle* identification number.	6N0 837 219 A UB
	soft black	1H0 837 226 C 82
	pebble grey	1H0 837 226 Y 01
	Satin black	1H0 837 207 C 3 FZ
	Satin black	1H0 837 226 B 41
	beaver	1H0 837 226 T 21
	soft black	1H0 837 225 C 82
-	REPAIR KIT Fo R DOOR HANDLE	1H0 898 105
(1)	Door lock	1H1 837 016 L
(1)	Door lockfor vehicles with centrallocking system	1H1 837 015 N
(1)	Door lockfor vehicles with centrallocking systemfor models with electricallyoperated windows	1H1 837 015 N
(1)	Door lock For vehicle withoutcentral lockingfor models with electricallyoperated windows	1H1 837 015 P
(1)	Door lock	1H2 837 015 H
(1)	Door lockfor vehicles with centrallocking system	1H2 837 015 J
(1)	Door lockfor vehicles with centrallocking system	1H1 837 016 M
(1)	Door lockfor vehicles with centrallocking systemfor models with electricallyoperated windows	1H1 837 016 M
(1)	Door lock	1H2 837 016 L
(1)	Door lockfor vehicles with centrallocking system	1H2 837 016 M
(1)	Door lock For vehicle withoutcentral lockingfor models with electricallyoperated windows	1H2 837 016 N
(1)	Door lock	1H1 837 015 M
(11)	locking rod fordoor lock	1H4 837 183
(11)	locking rod fordoor lock	1H3 837 183
(11)	locking rod fordoor lock	1H4 837 184
(12)	knob for locking rod	1H0 837 187 A
(14)	pull rod	1H4 837 194 A
(14)	pull rod	1H3 837 193 A
(14)	pull rod	1H4 837 193 A
(14)	pull rod	1H3 837 194 A
(19)	Underlay	1H0 837 211 B
(20)	Door handle, exterior	1H0 837 207 C
(21)	Eccentric F 1 H-VW 600 001>>F 1 H-VB 200 001>>F 1 H-VP 400 001>>F 1 H-VD 050 001>> also use:F >> 1 H-VW 600 000F >> 1 H-VB 200 000F >> 1 H-VP 400 000F >> 1 H-VD 050 000 1 H 0 837 061 G 1 H 0 837 061 G 1 H 0 837 061 G 1 H 0 837 061 G 1 H 0 837 061 G 1 H 0 837 061 G 1 H 0 837 061 G 1 H 0 837 061 G	1H0 837 223 B
(23)	Pressure spring	1H0 837 229 B
(23)	Pressure spring F 1 H-VW 600 001>>F 1 H-VB 200 001>>F 1 H-VP 400 001>>F 1 H-VD 050 001>>	1H0 837 229 B
(24)	Follower F 1 H-VW 600 001>>F 1 H-VB 200 001>>F 1 H-VP 400 001>>F 1 H-VD 050 001>> also use:F >> 1 H-VW 600 000F >> 1 H-VB 200 000F >> 1 H-VP 400 000F >> 1 H-VD 050 000 also use: 1 H 0 837 061 G 1 H 0 837 061 G 1 H 0 837 061 G 1 H 0 837 061 G 1 H 0 837 223 B 1 H 0 837 061 G 1 H 0 837 061 H SYSTEM 'A'7101-8154 SYSTEM 'B' 1 H 0 837 061 G 1 H 0 837 061 G 1 H 0 837 061 G 1 H 0 837 061 G 1 H 0 837 223 B 1 H 0 837 061 G 1 H 0 837 061 H	1H0 837 237 D
(27)	Lock cylinder for doorhandle without striker plateand keyfor locking numbers:1001-2000,3001-4000,6001-7086,8201-9282 F >> 1 H-VW 421 000F >> 1 H-VB 140 000F >> 1 H-VP 280 000F >> 1 H-VD 420 000	1H0 837 061 F
(27)	repair kit forlock cylinderfor locking numbers:1001-2000,3001-4000,6001-7086,8201-9282 See photo SYSTEM 'B' SYSTEM 'B'	1H0 898 081 A
(27)	Lock cylinder for doorhandle without striker plateand keyfor locking numbers:1001-2000,3001-4000,6001-7086,8201-9282 F 1 H-VW 421 001>>F 1 H-VB 140 001>>F 1 H-VP 280 001>>F 1 H-VD 420 001>>	1H0 837 061 H
(27)	repair kit forlock cylinderfor locking number:1-1000,2001-3000,4001-6000,7101-8154 See photo SYSTEM 'A' SYSTEM 'A'	1H0 898 081
(27)	Lock cylinder for doorhandle without striker plateand keyfor locking number:1-1000,2001-3000,4001-6000,7101-8154 F 1 H-VW 421 001>>F 1 H-VB 140 001>>F 1 H-VP 280 001>>F 1 H-VD 420 001>>	1H0 837 061 G
(3)	Micro switchfor vehicles with centrallocking systemfor models with electricallyoperated windows	1H2 962 103
(33)	main key with fixed codetransponderprofile ahquote key numberfor cut keys	6N0 837 219
(34)	main key with light and fixedcode transponderprofile ah	1H0 837 219 A
(41)	Inner actuator	1H0 837 225
(41)	Inner actuator	1H0 837 225
(42)	Housing for inner actuator	1H0 837 141
10	Bungs	1H0 837 111 A
10	Bungs 16 16	3B0 837 111
11	locking rod fordoor lock	1H3 837 184
13	see illustration: 867-000 867-000	—
15	Clip	321 837 199
18	Underlay	1H0 837 209
2	throttle control elementfor vehicles with centrallocking system No replacement part Included in position: 1 1	—
20	Door handle, exterior	1H0 837 207 B
21	Eccentric F >> 1 H-VW 421 000F >> 1 H-VB 140 000F >> 1 H-VP 280 000F >> 1 H-VD 420 000	1H0 837 223
22	seal ring	1H0 837 227
23	Pressure spring F >> 1 H-VW 600 000F >> 1 H-VB 200 000F >> 1 H-VP 400 000F >> 1 H-VD 050 000	1H0 837 229
24	Follower(passenger side)	1H0 837 237
25	torsion spring	1H0 837 245
26	1 set: tumbler platesfor lock cylinder 13,5 MM 13,5 MM	443 898 041 A
27	Lock cylinder for doorhandle without striker plateand keyfor locking number:1-1000,2001-3000,4001-6000,7101-8154 F >> 1 H-VW 421 000F >> 1 H-VB 140 000F >> 1 H-VP 280 000F >> 1 H-VD 420 000	1H0 837 061 E
28	Lock cylinder grease spray Service fluid 50 ML 50 ML	G 052 778 A2
3	Micro switchfor vehicles with centrallocking systemfor models with electricallyoperated windows	1H0 962 103
30	Oval hexagon socket head bolt M 6 X 12 M 6 X 12	N 905 988 04
31	Clip	357 837 242
35	bulb 1,5 V/0,09 A 1,5 V/0,09 A	N 903 145 02
35	bulb 1,5 V/0,09 A 1,5 V/0,09 A	N 903 145 01
36	micro-cell battery 1,5 V 1,5 V	N 902 624 01
37	Badge 'BON JOVI'	1H0 837 244
41	Inner actuator	1H0 837 226
41	Inner actuator	1H0 837 226
42	Housing for inner actuator	1H0 837 142
44-45	see illustration: 867-000 867-000	—
6	Oval hexagon socket head bolt M 6 X 12 M 6 X 12	N 905 988 04
6	Oval hexagon socket head bolt M 6 X 12 M 6 X 12	N 905 988 01
7	Lock striker	1H0 837 034 A
7	Lock striker	1H0 837 034 C
7	Lock striker	1H0 837 034 E
8	oval head countersunk bolt M 8 X 22 M 8 X 22	N 102 349 01
8	oval head countersunk bolt M 8 X 22 M 8 X 22	N 905 331 01
9	Threaded plate	6N0 809 237
9	Threaded plate	1H0 809 237

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these front door diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 37 Front door
Factory subgroup: 837000
